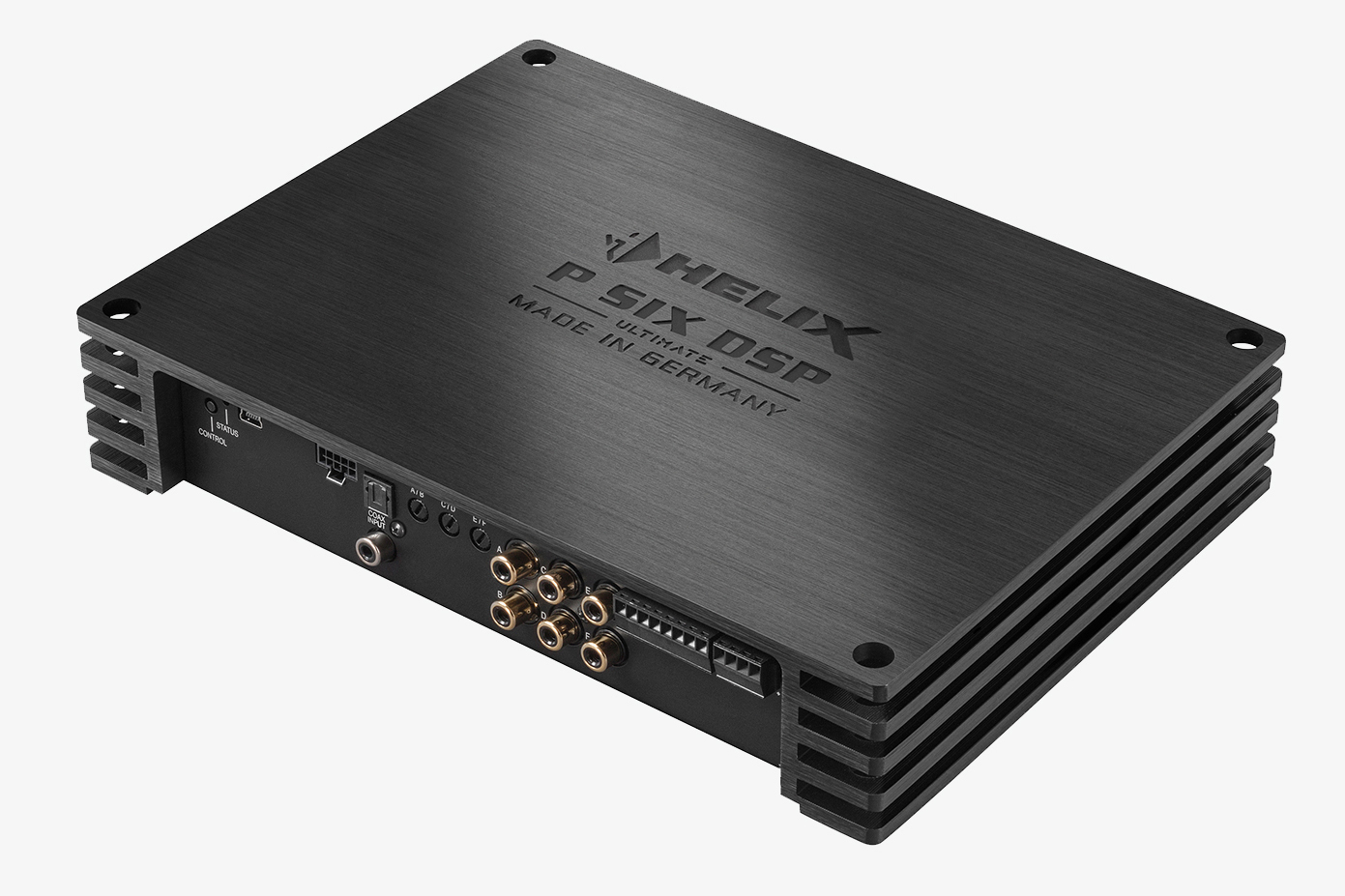

Helix P Six DSP Ultimate

The Helix P Six Ultimate DSP Amplifier is one of our favorite solutions to modern sound system installations here at ResoNix. 6 channels of compact yet powerful amplification and 12 channels of the most powerful DSP processing available on the market today. Comes with the option for 50% off of a ResoNix Remote DSP Tune.

Call For Consultation Before Purchase

PDF Coming Soon v1
  • Nick is a Doofus
  • His cat Pete is cooler than him
  • I’m going to keep hiding things
Helix P Six DSP Amplifier

Our Favorite DSP

The Helix P Six Ultimate DSP Amplifier is one of our favorite solutions here at ResoNix. It features 6 channels of amplification with 12 channels of the most powerful and easy-to-use processing available today. The chances are, if you are on this page, you already know all about this amplifier, but here is a quick rundown.

. 6 x 120 watts @ 4 ohms (Channels A-F), 4 x 230 watts @ 2 ohms (Channels C-F)

. Ultra HD Class D concept – combines the high-end sound quality of Class AB technology with the benefits of Class D amplifiers

. TwinDSP Power – two extremely powerful “fixed point” Audio DSPs with 64 Bit resolution and 2.4 billion MAC operations per second

. A/D and D/A signal converters from BurrBrown

. ACO – Advanced 32-Bit Co-Processor, adding features such as the Input Signal Analyzer, Sound FX, and more.

. Optical (max. 96 kHz) and coaxial (max. 192 kHz) digital input in SPDIF format

. 6 High Level Inputs capable of up to 32 volts of input signal,also featuring the ADEP.3 circuit – No need for load resistors!

. 4 processed RCA outputs and 1 processed SPDIF Toslink Output – perfect for adding and processing extra amplifiers and speakers for rear fill, subwoofers, center channels, etc.

. Virtual Channel Processing – Allows for the most flexible processing available on the car audio market today.

. HELIX Extension Card slot (HEC) for additional input / output modules like Bluetooth® Audio Streaming, High Resolution Audio Streaming via USB etc.

. Compact and efficient design for easy installation without thermal issues. 50 x 260 x 190 mm
