The updated Helix Conductor Pro is a premium remote controller for select Helix, Brax, and Match DSPs, offering improved feel, more robust construction, and quick access to volume, source selection, sound presets, sub level, tone controls, optional Bluetooth playback control, and more!

Regular price $299.00 Sale price$259.00
/

0 reviews


  • In stock, ready to ship
  • Backordered, shipping soon

Please contact us for a consultation before ordering

+3

Customers who bought this also loved this!

Helix Conductor Pro - Audiotec Fischer DSP Controller

One-touch remote control

The CONDUCTOR PRO combines design and functionality in perfect harmony. With a single control knob, you get all key functions of your DSP-based sound system at your fingertips – from volume control, input source selection and setup switching to the operation of an optionally installed Bluetooth® HD Extension Card. Building on the proven operating logic of the CONDUCTOR, the CONDUCTOR PRO adds an even more premium material concept and refined haptics.

Premium design you can see – and feel

The CONDUCTOR PRO is purpose-built around a high-quality look and a highly controlled operating feel. Its aluminium housing underlines the premium character while providing excellent robustness and long-term durability. The ergonomically shaped knob features a rubber-touch side surface, offering noticeably more grip and enabling precise, confident operation – even while driving. As a result, the CONDUCTOR PRO blends seamlessly into modern, high-end vehicle interiors both visually and in terms of feel.

Tailor-made for your needs

The CONDUCTOR PRO adapts flexibly to your requirements, whether as a simple subwoofer remote or as a control unit for more complex system configurations. Even setups with multiple playback zones and different volume levels can be handled comfortably: music for the parents in the front while an audio story plays for the kids in the rear.

All signal sources under control

With the CONDUCTOR PRO, you can manage all connected signal sources in no time. Use your smartphone as a digital media source, for example, and intuitively control playback (play / pause, track forward / back) and volume in combination with the optional Bluetooth® Extension Card.

Sound setup switching to match your taste

Manage different sound profiles on your DSP – depending on your personal taste and demands – and enjoy your music with consistently optimized sound quality.

Features

  • Independent control of up to 4 individual volumes such as Master, Digital, HEC/AUX, Rear Attenuation or Subwoofer including full system mute
    • Selectable volume ranges of 60 dB, 24 dB, 12 dB
    • Selectable volume step size of 1 dB or 0.5 dB
    • Individually configurable LED color for each volume menu
  • Sound Setup switching with up to 10 presets and signal source selection
  • Optional Bluetooth® module control including play, pause, track navigation and activation of pairing*
  • ToneControl – flexible sound tuning for highs and lows
    • Precise boost or cut in the range from −6 dB to +6 dB
    • Precise boost or cut in the range from −6 dB to +6 dB

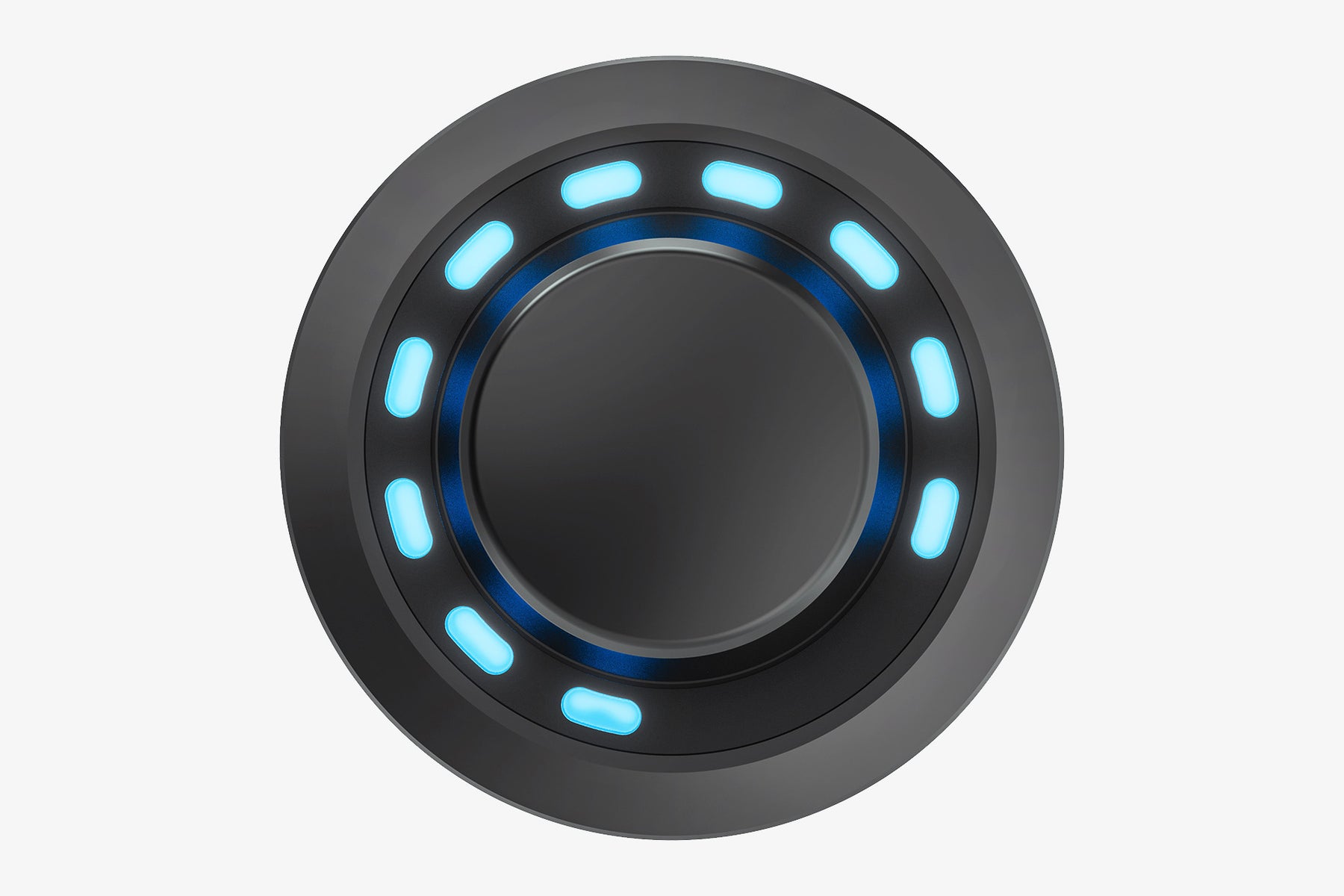

  • 12 x RGB-LEDs for visual feedback
    • Wide color space with over 16 million colors
    • Configurable brightness and automatic dimming
  • Seamless and secure installation
    • Rear mounting ring and fine thread for secure fastening
    • Flush mount installation with Ø 1. 58” / 40 mm hole cut-out
    • 16.4 ft / 5 m cable for SCP with split connector
    • No separate power supply required
  • Enhanced look and feel thanks to premium materials and ergonomic design
    • High-grade aluminum housing
    • Ergonomic rotary knob with rubber-touch surface on the side for precise control
  • Full configuration and updatability through the DSP PC-Tool software
    * Supported by DSP products equipped with a Bluetooth Extension Card (Extension Card 2.0 – BT HD or HEC / MEC BT HD). The BT HD STREAMER is excluded



Technical data

Housing Aluminum housing with ergonomic rotary knob with rubber-touch surface on the side
Hardware Rotary encoder, 12 x RGB-LEDs & 48 MHz ARM processor
Connection SCP (Smart Control Port) / no separate power supply required
Cable length 5 m total length – split into 4.8 m connection cable + 0.2 m CONDUCTOR cable
Dimensions (Ø x H) Ø 46 x 36 mm / Ø 1.81 x 1.42”
Installation depth 18 mm / 0.71"



Compatibility

  • All BRAX, HELIX and MATCH DSP devices featuring ACO platform and SCP (Smart Control Port)
  • The CONDUCTOR PRO cannot be combined with another control unit



Scope of delivery

1 x Remote control CONDUCTOR PRO
1 x Mounting ring
1 x 16.4 ft / 5 m connection cable for SCP (Smart Control Port)

Helix Conductor Pro Specifications

Helix Conductor Pro - Audiotec Fischer DSP Controller

One-touch remote control

The CONDUCTOR PRO combines design and functionality in perfect harmony. With a single control knob, you get all key functions of your DSP-based sound system at your fingertips – from volume control, input source selection and setup switching to the operation of an optionally installed Bluetooth® HD Extension Card. Building on the proven operating logic of the CONDUCTOR, the CONDUCTOR PRO adds an even more premium material concept and refined haptics.

Premium design you can see – and feel

The CONDUCTOR PRO is purpose-built around a high-quality look and a highly controlled operating feel. Its aluminium housing underlines the premium character while providing excellent robustness and long-term durability. The ergonomically shaped knob features a rubber-touch side surface, offering noticeably more grip and enabling precise, confident operation – even while driving. As a result, the CONDUCTOR PRO blends seamlessly into modern, high-end vehicle interiors both visually and in terms of feel.

Tailor-made for your needs

The CONDUCTOR PRO adapts flexibly to your requirements, whether as a simple subwoofer remote or as a control unit for more complex system configurations. Even setups with multiple playback zones and different volume levels can be handled comfortably: music for the parents in the front while an audio story plays for the kids in the rear.

All signal sources under control

With the CONDUCTOR PRO, you can manage all connected signal sources in no time. Use your smartphone as a digital media source, for example, and intuitively control playback (play / pause, track forward / back) and volume in combination with the optional Bluetooth® Extension Card.

Sound setup switching to match your taste

Manage different sound profiles on your DSP – depending on your personal taste and demands – and enjoy your music with consistently optimized sound quality.

Features

  • Independent control of up to 4 individual volumes such as Master, Digital, HEC/AUX, Rear Attenuation or Subwoofer including full system mute
    • Selectable volume ranges of 60 dB, 24 dB, 12 dB
    • Selectable volume step size of 1 dB or 0.5 dB
    • Individually configurable LED color for each volume menu
  • Sound Setup switching with up to 10 presets and signal source selection
  • Optional Bluetooth® module control including play, pause, track navigation and activation of pairing*
  • ToneControl – flexible sound tuning for highs and lows
    • Precise boost or cut in the range from −6 dB to +6 dB
    • Precise boost or cut in the range from −6 dB to +6 dB
  • 12 x RGB-LEDs for visual feedback
    • Wide color space with over 16 million colors
    • Configurable brightness and automatic dimming
  • Seamless and secure installation
    • Rear mounting ring and fine thread for secure fastening
    • Flush mount installation with Ø 1. 58” / 40 mm hole cut-out
    • 16.4 ft / 5 m cable for SCP with split connector
    • No separate power supply required
  • Enhanced look and feel thanks to premium materials and ergonomic design
    • High-grade aluminum housing
    • Ergonomic rotary knob with rubber-touch surface on the side for precise control
  • Full configuration and updatability through the DSP PC-Tool software
    * Supported by DSP products equipped with a Bluetooth Extension Card (Extension Card 2.0 – BT HD or HEC / MEC BT HD). The BT HD STREAMER is excluded



Technical data

Housing Aluminum housing with ergonomic rotary knob with rubber-touch surface on the side
Hardware Rotary encoder, 12 x RGB-LEDs & 48 MHz ARM processor
Connection SCP (Smart Control Port) / no separate power supply required
Cable length 5 m total length – split into 4.8 m connection cable + 0.2 m CONDUCTOR cable
Dimensions (Ø x H) Ø 46 x 36 mm / Ø 1.81 x 1.42”
Installation depth 18 mm / 0.71"



Compatibility

  • All BRAX, HELIX and MATCH DSP devices featuring ACO platform and SCP (Smart Control Port)
  • The CONDUCTOR PRO cannot be combined with another control unit



Scope of delivery

1 x Remote control CONDUCTOR PRO
1 x Mounting ring
1 x 16.4 ft / 5 m connection cable for SCP (Smart Control Port)
