Why A CLD Sound Deadening Material Fails Long Before It Melts

Most people judge the capability and cues for the failure of a CLD sound deadening material by the wrong standard.

They look for obvious visible failure. Did it melt? Did it drip? Did it fall off? Did it slide down the panel? Did it make a mess? If the answer is no, they assume the material is still fine and all is good with  their installation.

That is not how a constrained layer damper works, and it is certainly not how its failure is determined.

A CLD does not exist to look clean inside a door, roof, floor, or trunk. Its job is to reduce panel resonance. If it is no longer reducing panel resonance, or is doing far less of it than intended, then it has failed or is failing, whether you can see visible cues for it or not.

Melting is not the only indicator of a CLD’s failure. It is usually the very last and only visibly obvious symptom of a problem that started much earlier. In many cases, a CLD has already lost most of its useful damping long before it ever sags, drips, melts, smells, etc. In many cases, it may never visibly fail at all, yet still stop working as a constrained layer damper.

That is the point of this article, to bring to light how a CLD can fail and do nothing for you and your installation without you even being aware of it.

What a CLD Sound Deadener is actually supposed to do

Before talking about failure, you need to understand what the material is supposed to do in the first place.

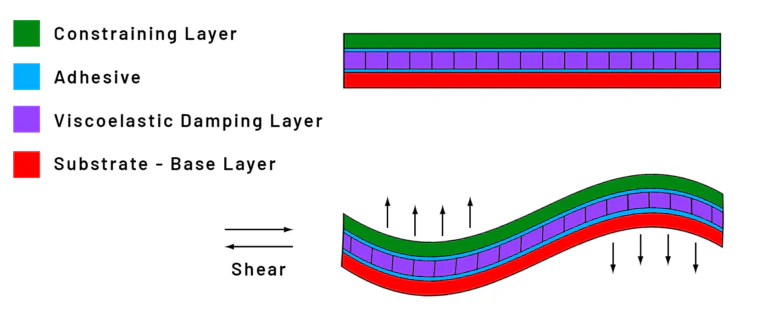

A constrained layer damper is a composite system where you have a viscoelastic butyl-based layer bonded to the panel, with an aluminum constraining layer on top. As the panel flexes and resonates, the butyl is forced into what is called “shear” (horizontal shift/stretching) between the panel and the aluminum layer. That shear resistance is what damps the panel and converts that mechanical energy into small amounts of heat.

That is the whole point of a CLD.

It is not there just to add mass. It is not there just to stick to metal. It is there to reduce resonance through the shear resistance generated by the butyls viscoelastic behavior working against the stiffness of the aluminum constraining layer.

This is also where a lot of people get confused about the “adhesive.” In a CLD, the butyl is not just some separate layer from an adhesive layer. The butyl IS the adhesive system and the viscoelastic damping layer.

Done right, a CLD takes a ringing panel that sounds like a hollow drum and makes it far more dead, controlled and less resonant. Done poorly, it may still add weight, still look adhered to the panel just fine, all while contributing far less damping than people think.

What failure actually means, and why a CLD can fail before you can see it

This is where the sound deadening community goes off the rails. There are two very different kinds of failure people keep lumping together, one of which nearly everyone seems to ignore, or worse, isn't even familiar with it in the first place.

The first, and much less obvious and less known about/discussed, yet still highly problematic one is functional performance failure. That is when the material is no longer damping panel resonance to a meaningful level, usually due to high or low temperatures. This can happen while the sheet still looks normal, still feels stuck, and still has not melted. The second is the obvious catastrophic physical failure. That is when the material finally starts melting, dripping, shifting, staining, separating, or otherwise making a mess.

Most people only look for or are even familiar with the second one since it is visible and obvious, which is a bit of backwards thinking since the this rarely happens with modern CLD's, and the product has already failed at its job long before it gets to the point of catastrophic failure. Remember, a CLD can be fully failed from a damping standpoint while still looking perfectly fine.

Remember, a CLD works because the butyl can deform under shear, resist that movement, and recover. That recovery behavior is a big part of what makes the product work for resonance reduction. It has to be viscoelastic enough to stretch, resist, and want to return. If it becomes too soft, too stiff, too pasty, too brittle, or too slow to recover, damping drops or is non existent. All of these can cause a functional performance failure. The material does not need to visibly melt, drip, or become unadhered for that to happen. It just needs to lose enough of the viscoelastic behavior that once gave it meaningful shear resistance and elastic recovery for it to become useless for its intended purpose.

A very crude clue to this happening is how the butyl behaves if handled in these different states. If it stretches far too easily, strings out, permanently deforms, and does not want to recover, that can suggest the elastic component of its behavior is compromised. Please be aware that is not a proper test, and the temperature at the moment of handling matters. It is not a substitute for actual damping data, only a rough clue to possibly help you identify what is happening.

So when talking about failure, there are really three things to look at:

• How strong the damping performance is to begin with. While poor "room temp." performance is not technically a failure, it still provides a reference to what is happening with the following
• How much of that performance is retained as temperature changes
• Whether the material physically survives in place without issue

None of these are the same, and one cannot replace the others.

Why cheap butyl formulas fail

The root cause of most CLD failure is almost always the butyl formulation.

A high-performing CLD needs a properly engineered viscoelastic polymer system. A cheap CLD often uses a lower-grade binder system, then leans on fillers to bulk the sheet up, stiffen it enough to handle, reduce obvious flow, and create more sellable volume for much less money spent

This is where people need to stop treating the word “butyl” like it proves quality. “Butyl” by itself tells you almost nothing. Butyl formulas vary wildly. A product can contain butyl and still be mediocre or outright bad in damping performance.

These cheap products butyl formulas are loaded with excessive calcium carbonate powder, glass microspheres, foaming agents, asphalt, or other low-cost mineral and recycled solid fillers. Used very sparingly and correctly, some filler content can help tune a butyl formulation. Used excessively, it becomes a volume-fluffing, cost-lowering game, and profit-increasing game while also making it so the butyl doesn’t drip at high temperatures.

A loose, low-cost butyl formula can be thickened up with heavy filler so the sheet feels denser, resists visible drip better, and yields more sellable square footage. That does not mean the manufacturer improved the damping. Most of the time, they just made the product cheaper to produce while making it look more stable and substantial to the buyer. Two birds, one stone.

That is what I mean by volume fluffing.

Calcium carbonate (CaCO₃) powder is a good example. In small amounts, it can be used for legitimate tuning of stiffness and shear modulus. In excessive amounts, it becomes cheap bulk. Calcium carbonate powder can cost less than $100 per metric ton. That is almost nothing in the context of a large production batch. Across a big run, CaCO₃, foaming agents, and other fillers can easily add up to 50% more volume to a butyl formula for pennies. That lets a manufacturer turn a loose, cheap butyl formula into something that feels thicker, looks fuller, and creates more sellable volume with better margins.

A filler-loaded sheet can look substantial while the functional viscoelastic content is weak. That is one of the dirty little secrets in this product category.

How a CLD should actually be evaluated

If you actually want to know how well a CLD works over the temperatures it will inevitably live through, you need damping data over temperature. This is where SAE J1637 comes into play.

SAE J1637 is the industry standard lab method for measuring the vibration damping performance of a damping material that is bonded to a cantilevered steel bar, often called an Oberst bar. It is used to rank damping materials by composite loss factor, and it specifically recognizes that damping performance varies with temperature. It evaluates performance over a range that is applicable to transportation systems, with composite loss factor commonly considered over a relevant temperature range, usually -10c to 55c.

The standard expects results to be reported clearly, including temperatures, resonant frequencies, and composite loss factor values, preferably in both tables and graphs. It also allows interpolation to reference points like 200, 400, 600, and 800 Hz, which is why 200 Hz reference graphs are commonly used for comparison. This is the kind of data that shows you whether a product actually retains useful damping as temperature changes.

What composite loss factor actually tells you

Composite loss factor is simply a way of expressing how effectively the steel bar and damping material, as a combined system, dissipate vibration. Higher is better, all else equal.

But “all else equal” is the important part. A single peak number by itself does not tell you the whole story. You need to know at what temperature that number occurs, how broad the useful temperature range is, how strong the material is at its best, and how badly it falls off outside that range. This is also why there is no single universal number where everyone should declare “this is failure” in every application.

But that does not mean failure is subjective nonsense either. A product that loses too much damping across real automotive temperatures has failed at its intended job, even if some guy on a forum or facebook group insists otherwise.

Why the full Composite Loss Factor curve matters more than the peak

A CLD that is unknowingly prone to failure can sometimes produce a decent-looking number in a small temperature range. Don’t be fooled by what a give CLD can do at room temperature.

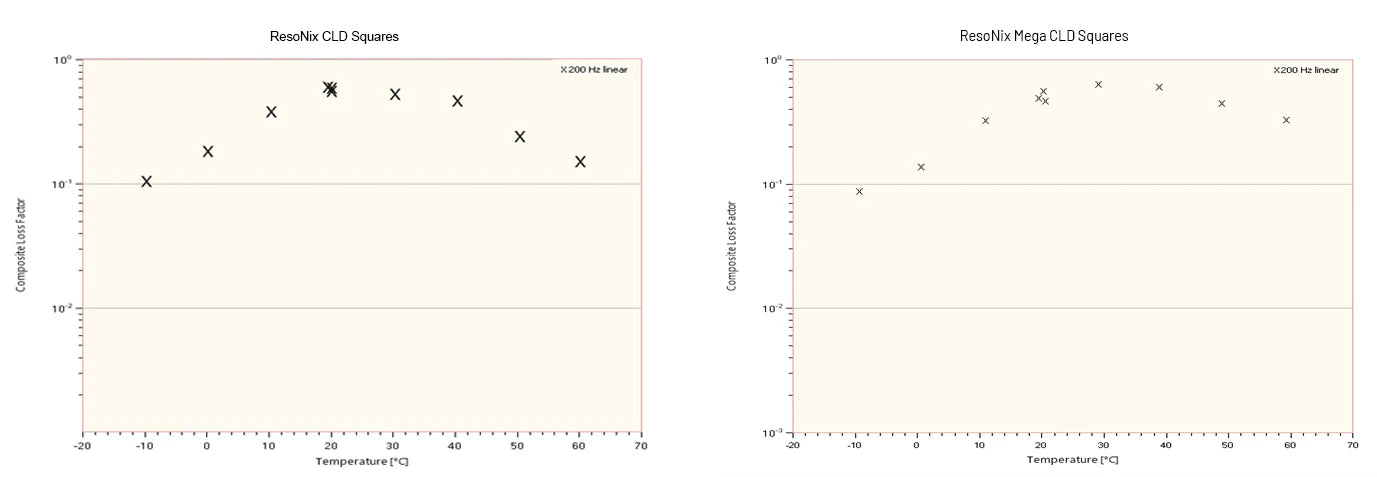

The ResoNix Mega CLD Squares 200 Hz reference data is a good example of what useful published information looks like. That data shows composite loss factor values from 0.076 at -9.1°C up to 0.637 at 29.3°C, while still measuring 0.317 at 59.4°C (and just to highlight the incredible performance of our Mega CLD Squares, a composite loss factor of 0.3 is near the upper end of room-temperature performance for most CLD products that are considered good performers).

The point is not that every product has to match those exact numbers, but to have a real curve that shows retained damping behavior across temperature instead of hiding behind one cherry-picked room-temperature claim, or god-forbid internet-expert hobbyists anecdotal claims of performance.

If a company only publishes one rounded-up high number, one vague “heat resistance” statement, or nothing at all, you are being asked to trust marketing instead of real performance data. Big. Red. Flag.

Why bad information survives

This myth survives because visible failure is easy to understand. You can photograph a melted sheet. You cannot photograph lost viscoelasticity.

It also survives because most enthusiastic hobbyists are relatively very inexperienced and uneducated on the topic and judge CLD by feel, weight, thickness, low price, or “it seemed to do something,” instead of by proper damping data. This leads to a lot of overly confident nonsense from people who shouldn’t be giving much advice, but love to be the loudest in the room.

It also survives because most aftermarket brands do not publish full SAE J1637 data. Hell, most brands don’t even know what SAE J1637 or Composite Loss Factor is! Many are just marketing companies that fell into a product line. All of these brands not publishing it is good for them, since it leaves the consumers uneducated on possibilities, and leaves sales up to whoever has the most convincing marketing, or lowest price, or fastest ship time, or in the case of brick and mortar dealers, whoever has the highest profit margin and a cool logo to display.

Many publish nothing. A few publish only their best-looking number. And I only know of 3, including us, that actually publish a full table and graph. That leaves consumers relying on forum echo chambers full of people who do not actually understand the basic principles involved. That is how bad information keeps getting repeated, and its pretty sad to see.

The takeaway

A good CLD is not one that merely avoids making a mess. That is only an extreme worst case scenario.

A good CLD starts with strong damping behavior, retains useful damping across real automotive temperatures, and obviously physically survives without falling apart, melting, or migrating.

A bad CLD can fail in several ways:

• It can be weak from the start (this isnt considered a failure though, just bad performance).
• It can have a narrow useful temperature range and fall off too hard outside it.
• It can be filler-heavy and engineered to look stable while performing poorly.
• It can physically survive while being acoustically ineffective.
• It can eventually melt, deform, or migrate long after the real failure already happened.

That is why “did it melt?” is such a bad way to judge a constrained layer damper.

The better question is this:

Does the manufacturer publish real damping data over temperature, preferably full SAE J1637 results, or are they asking you to trust buzzwords, weight, low price, and uneducated forum opinions?

If the data is not there, that should tell you everything you need to know.

Real CLD performance is not proven by “butyl,” by smell, by thickness, by weight, or by “mine is still stuck and didn’t melt.” It is proven by behavior, and that behavior is measurable.
