The STEG Q4C is a compact 4-inch coaxial speaker featuring a coated aluminum cone and centrally mounted titanium-dome tweeter. Its concentric design, high sensitivity, and shallow mounting depth make it well suited for OEM locations and space-limited custom installations.

$540.00 $699.00

STEG Q4C Concentric Speaker

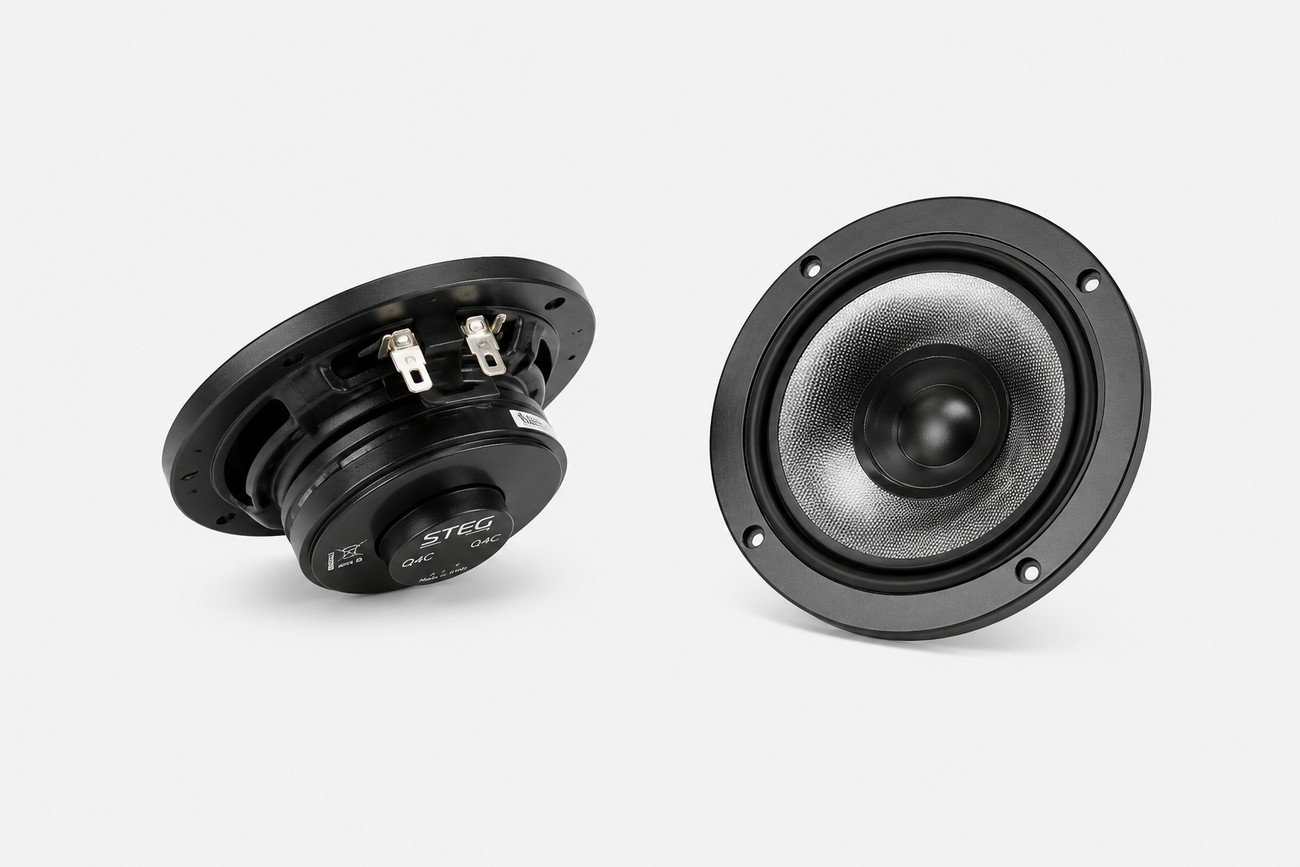

The STEG Q4C is a compact two-way coaxial speaker designed for installations where a separate midrange and tweeter may not be practical. It combines a specially coated aluminum cone with a centrally mounted titanium-dome tweeter and waveguide.

Placing both drivers on the same acoustic axis allows the Q4C to reproduce the midrange and high frequencies from a single speaker location. This makes it useful for OEM locations, compact custom installations, and systems where speaker placement options are limited.

Coated Aluminum Cone

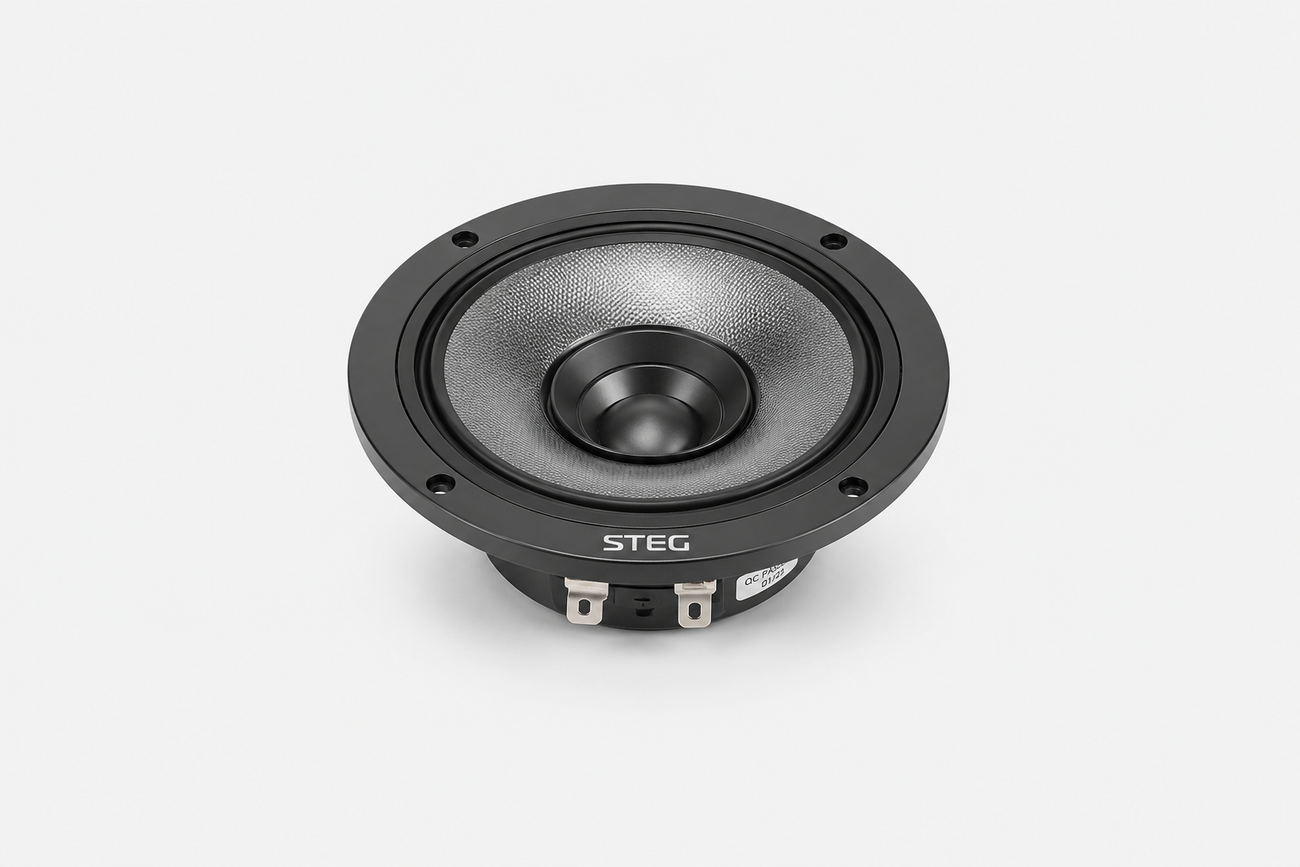

The 4-inch aluminum cone provides a lightweight and rigid radiating surface for clear midrange reproduction. It is supported by a vented aluminum basket that maintains a compact overall footprint while providing a solid mounting structure.

Titanium-Dome Tweeter and Waveguide

A titanium-dome tweeter is mounted at the center of the midrange cone. Its integrated waveguide helps control the tweeter’s output and its transition into the midrange driver.

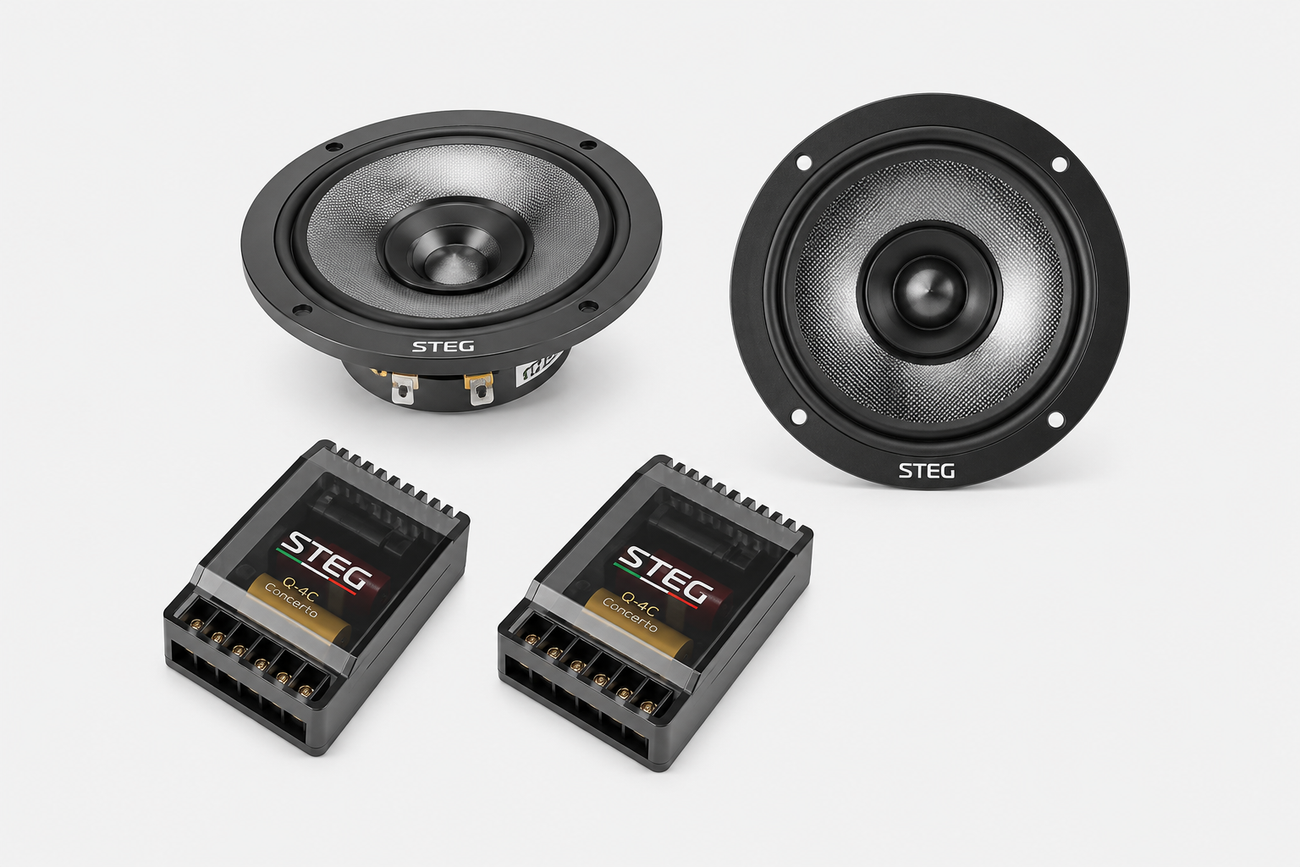

The Q4C uses an external crossover, allowing the two-way speaker system to be properly filtered for the installation.

Compact Installation

With a 96mm outer diameter, 81mm cutout diameter, and 34mm mounting depth, the Q4C can fit into many locations that cannot accommodate a larger conventional component system.

Its 95dB sensitivity also makes efficient use of the available amplifier power.

Features

4-inch two-way coaxial speaker
Coated aluminum midrange cone
Centrally mounted titanium-dome tweeter
Integrated tweeter waveguide
Vented aluminum basket
External crossover design
95dB sensitivity at 2.83V/1m
Compact 34mm mounting depth
Suitable for OEM locations and custom installations

Technical Data

Specification	Details
Speaker Type	Concentric
Impedance	4Ω
Frequency Response	127–20,000 Hz
Sensitivity	95dB @ 2.83V/1m
Qms	4.576
Qes	0.304
Qts	0.285
Mms	2.246g
Vas	1.646 L
Magnet	NdFeB
Mounting Diameter	81.0 mm
Mounting Depth	34.0 mm

Speaker Type: Concentric Coaxial
Nominal Impedance: 4 Ω
Mounting Diameter: 81.0 mm (3.19 inches)
Mounting Depth: 34.0 mm (1.34 inches)

Magnet: NdFeB (Neodymium)
Sensitivity: 95 dB @ 2.83V/1m
Frequency Response: 127 Hz–20 kHz
