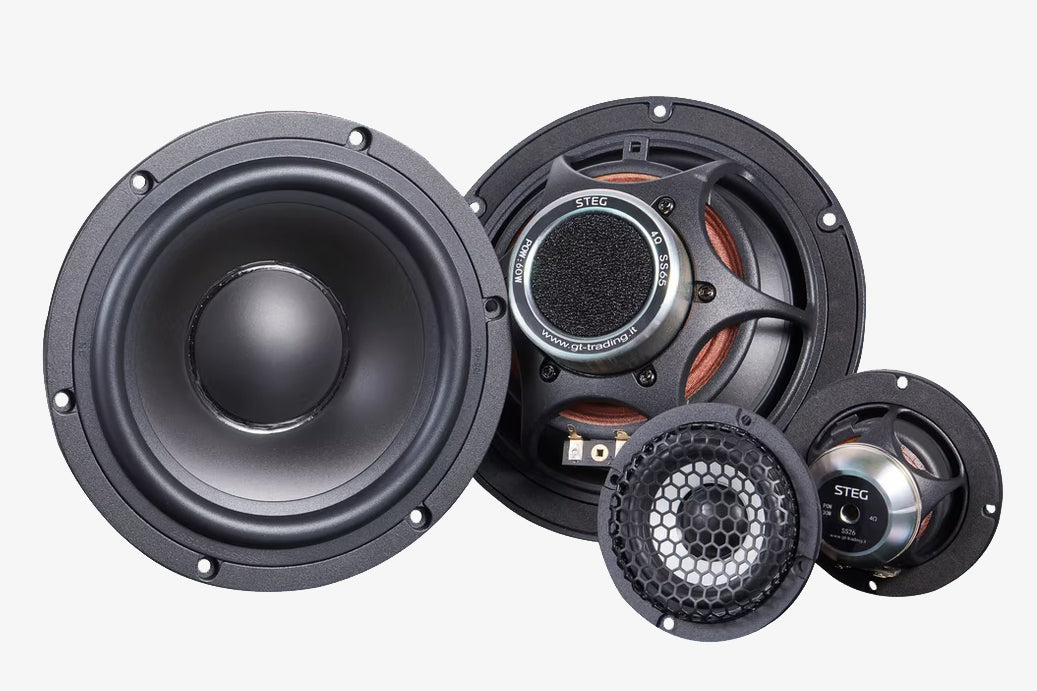

Steg Master Stroke SS652C 6.5" midbass and 3" wideband speaker for cars

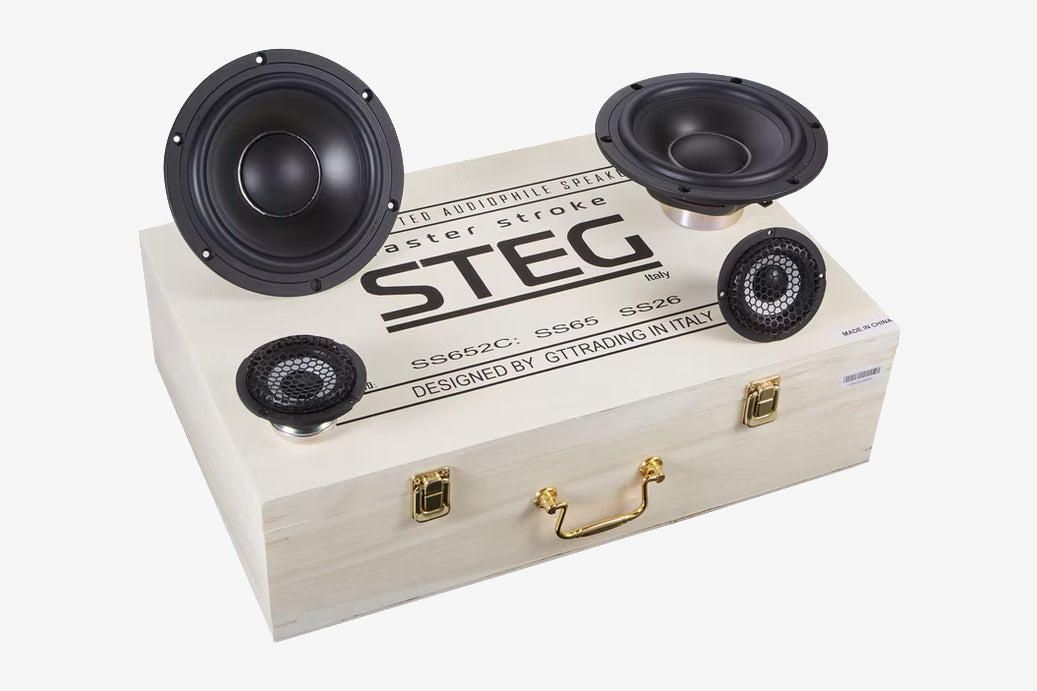

Steg Master Stroke SS652C 6.5" midbass and 3" wideband speaker for cars with their shipping box

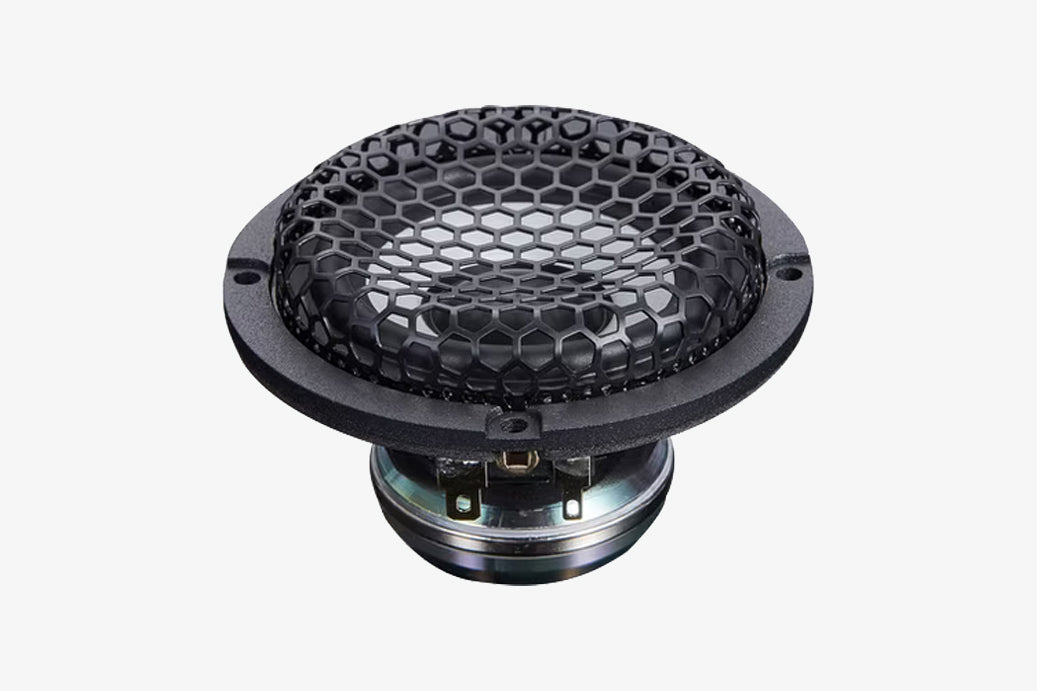

Steg Master Stroke SS26 3" wideband speaker for cars

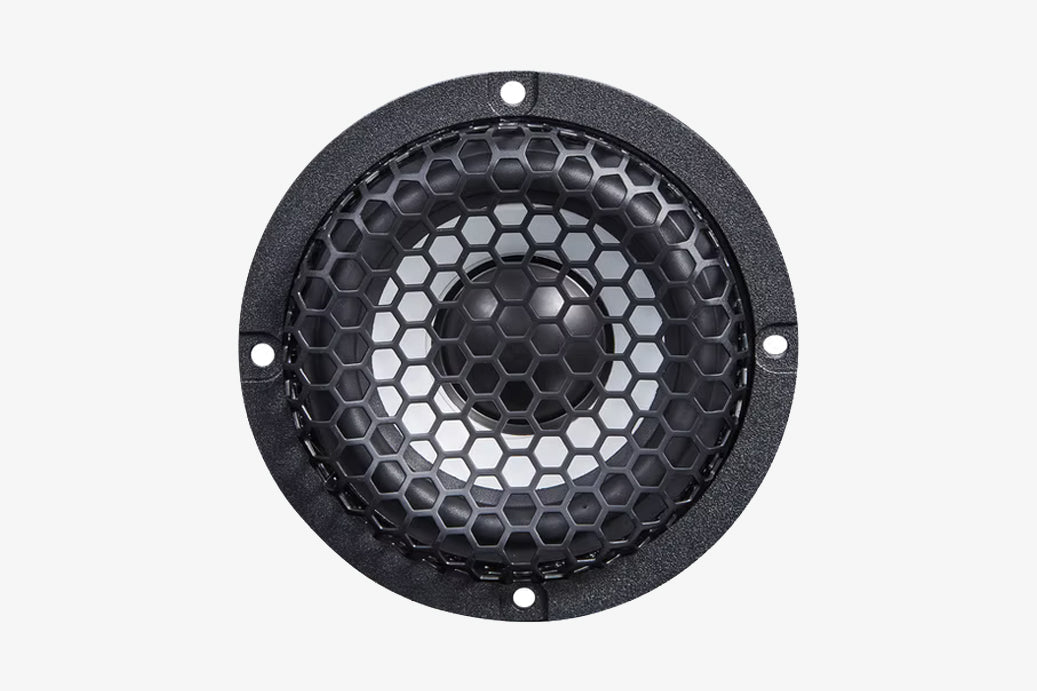

Steg Master Stroke SS26 3" wideband speaker for cars

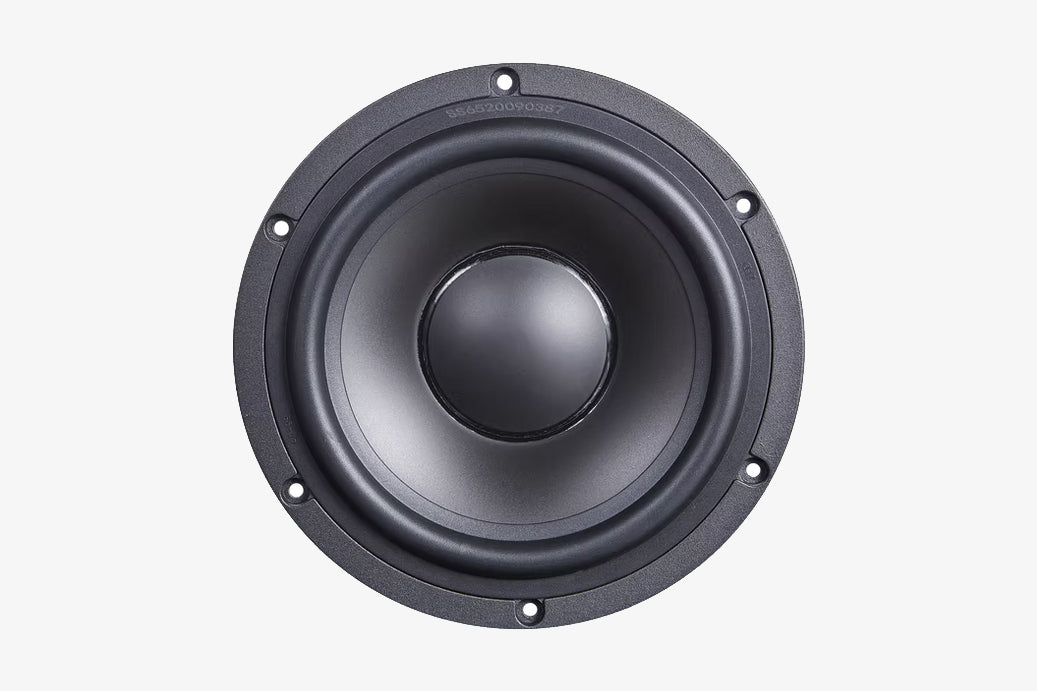

Steg Masterstroke SS65 6.5" car audio midbass speaker

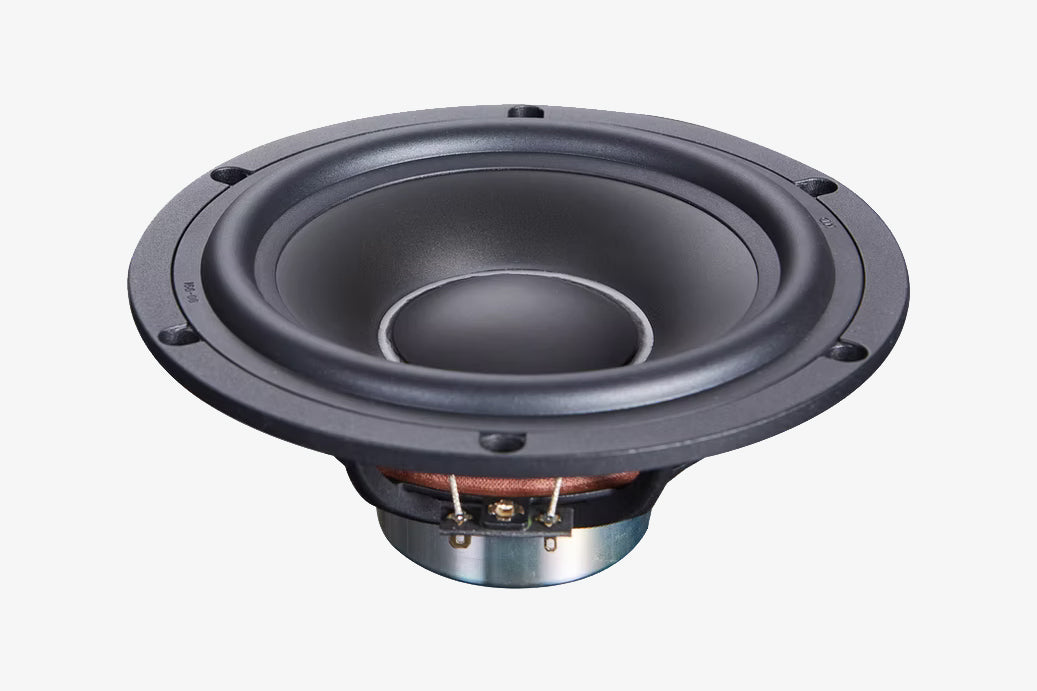

Steg Master Stroke SS65 6.5" midbass driver

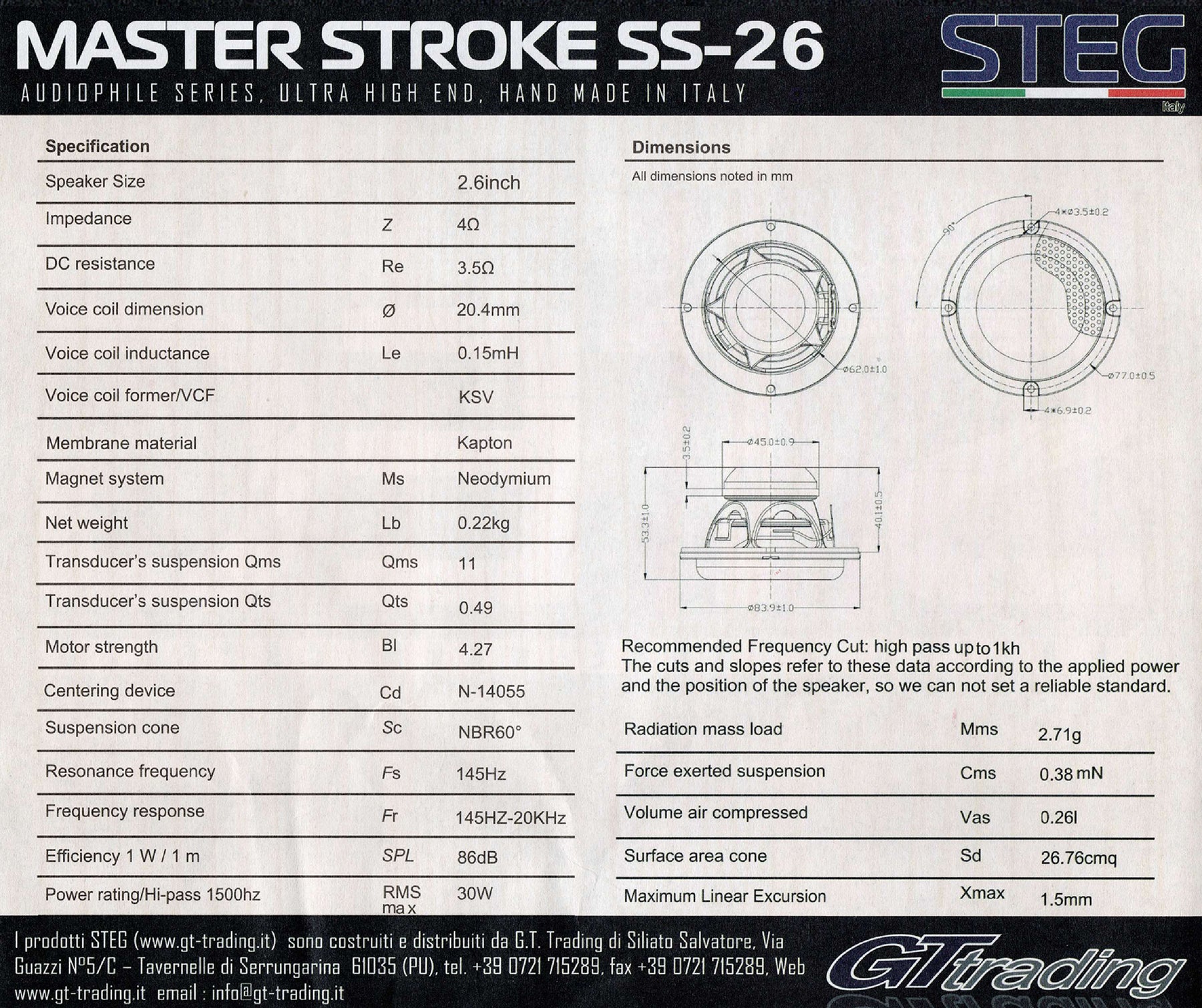

Steg Masterstroke SS26 Technical specification sheet
Steg Masterstroke SS652C Technical specification sheet

Steg Master Stroke SS-652C - 6.5" & 2.5" Wideband Component Set

The Steg Master Stroke SS652C is a wideband 2-way component set designed for high-performance active systems, featuring a low-distortion 6.5 inch midbass and a compact 2.5 inch wideband driver that extends all the way to 20kHz. This set is ideal for minimal-complexity installations in vehicles with 2.5 inch OEM speakers or custom setups where a low-profile design is preferred.

Regular price $1,250.00 Sale price$999.00
/
Shipping calculated at checkout.

  • Low stock - 3 items left
  • Backordered, shipping soon

What Materials Should I Use?

+3

Customers who bought this also loved this!

waveform graphic

Steg Master Stroke SS-652C - 6.5" & 2.5" Wideband Component Set Specifications

Steg Master Stroke SS-652C Wideband Component Set

       The Steg Master Stroke SS652C is a premium 2-way wideband component speaker set designed for vehicles equipped with factory 2-way wideband systems, such as those found in select Toyota, GM, and Mercedes-Benz models. While intended as a high-performance, drop-in upgrade for these OEM applications, the SS652C is also a great choice for low-profile custom installations where space is limited but sound quality cannot be compromised.

       The 6.5 inch midbass driver (SS-65) features a hybrid neodymium and ferrite motor, low-inductance 55.8mm TILSV voice coil, and a lightweight TIL diaphragm. This combination delivers clean, accurate midbass with excellent dynamics and low distortion, making it well-suited for both factory and aftermarket amplification.

       The 2.5 inch wideband driver (SS-26) is engineered to handle the entire midrange and high-frequency range, eliminating the need for a separate tweeter. With its neodymium motor, lightweight Kapton diaphragm, and compact size, it extends cleanly to 20kHz while fitting into tight OEM dash or A-pillar locations.

       Hand-made in Italy to Steg’s ultra high-end standards, the SS652C brings exceptional clarity, tonal accuracy, and refinement to a wide range of vehicle platforms, whether you’re upgrading a factory system or building a space-conscious custom install.

Steg SS-26 – 2.5″ Wideband Driver

  • Size: 2.6″ (6.6 cm)
  • Impedance: 4 ohms
  • Frequency Range: 145 Hz – 20,000 Hz
  • Sensitivity: 86 dB
  • QTS: 0.49
  • FS (Resonant Frequency): 145 Hz
  • Xmax (Maximum Excursion): 1.5 mm
  • Outer Diameter: 84 mm
  • Installation Diameter: 62 mm

Steg SS-65 – 6.5″ Midbass Driver

  • Size: 6.5″ (16.6 cm)
  • Impedance: 4 ohms
  • Frequency Range: 40 Hz – 1,000 Hz
  • Sensitivity: 84 dB
  • QTS: 0.36
  • FS (Resonant Frequency): 40 Hz
  • Xmax: 4.2 mm
  • Outer Diameter: 178.5 mm
  • Installation Diameter: 142 mm
