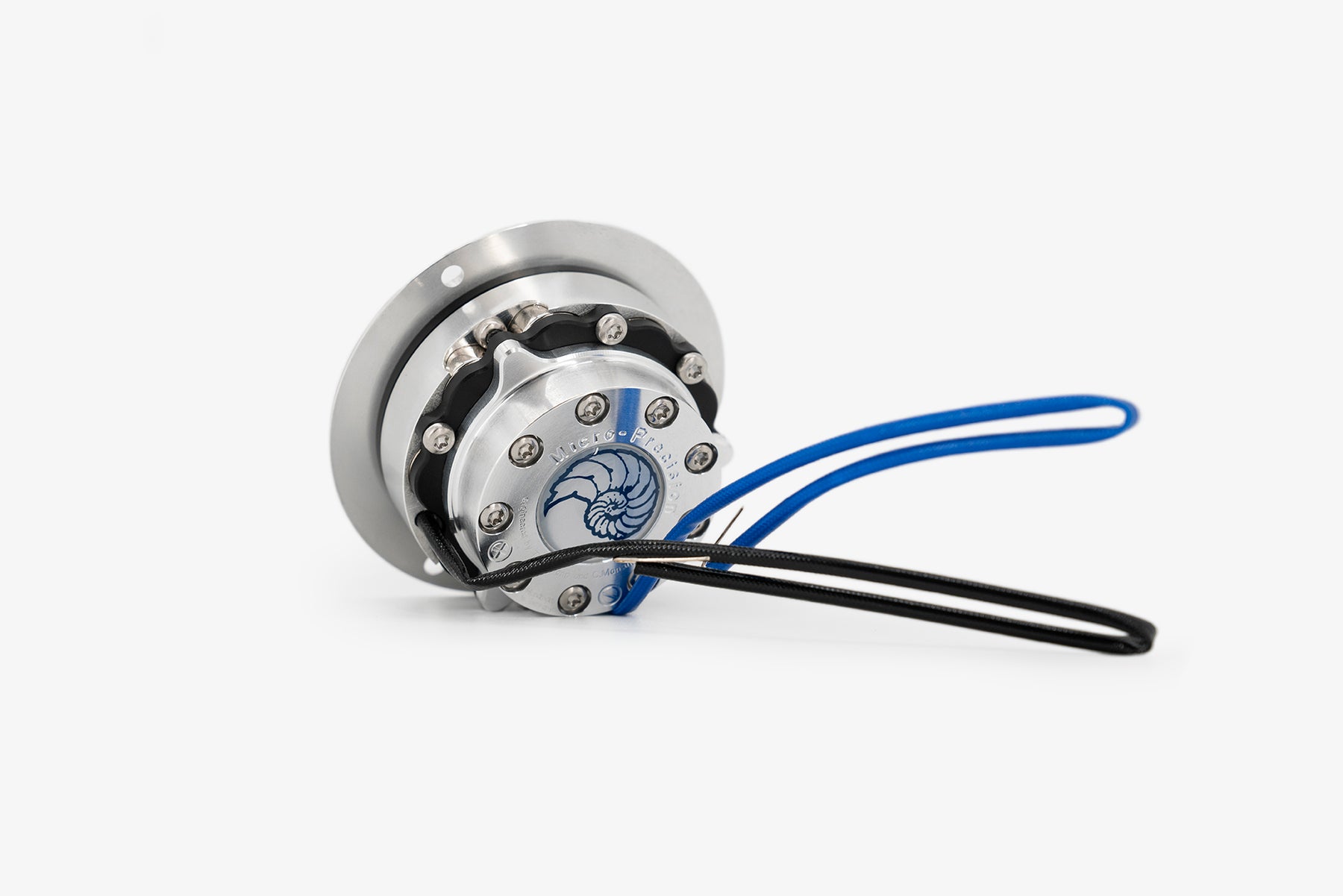

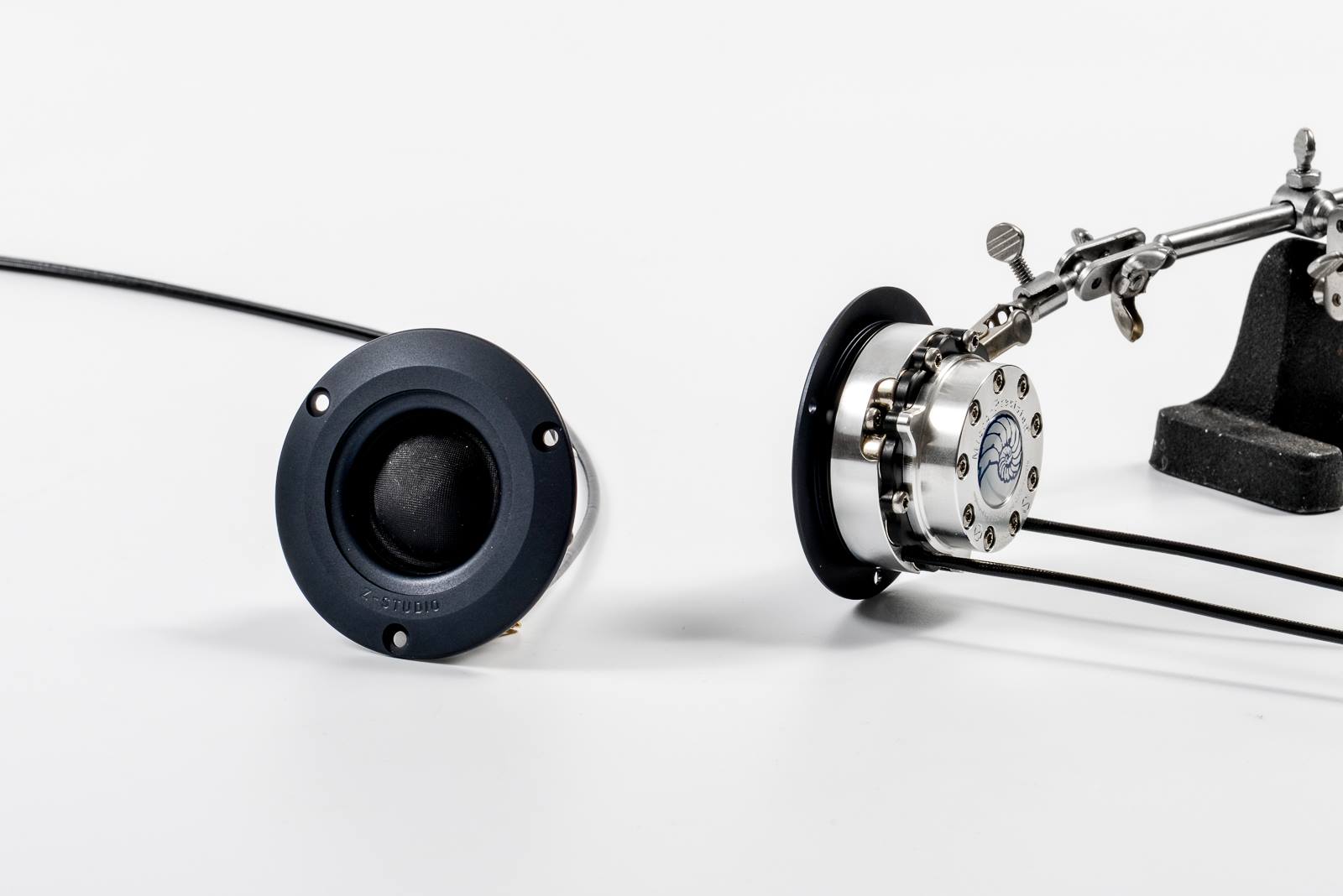

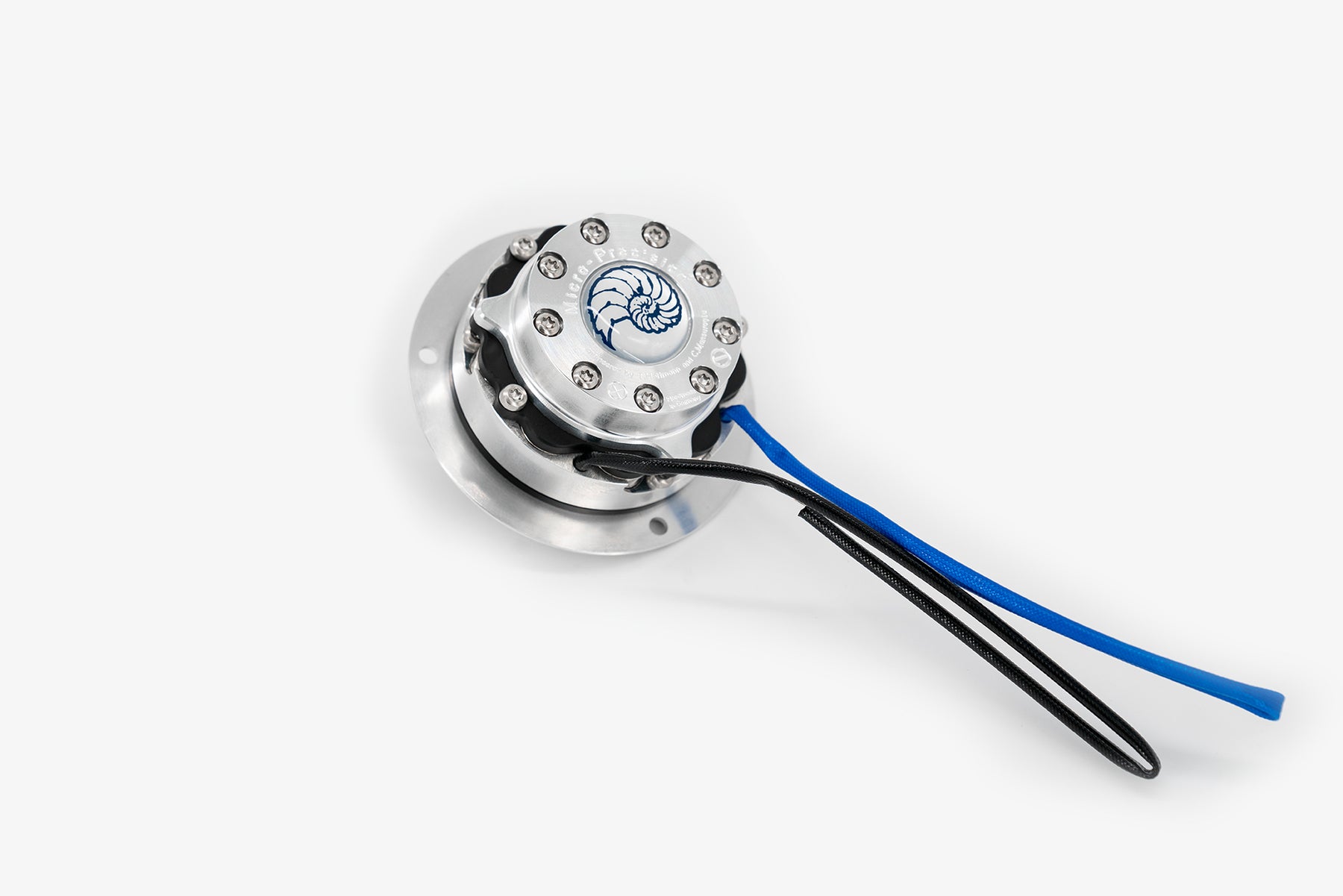

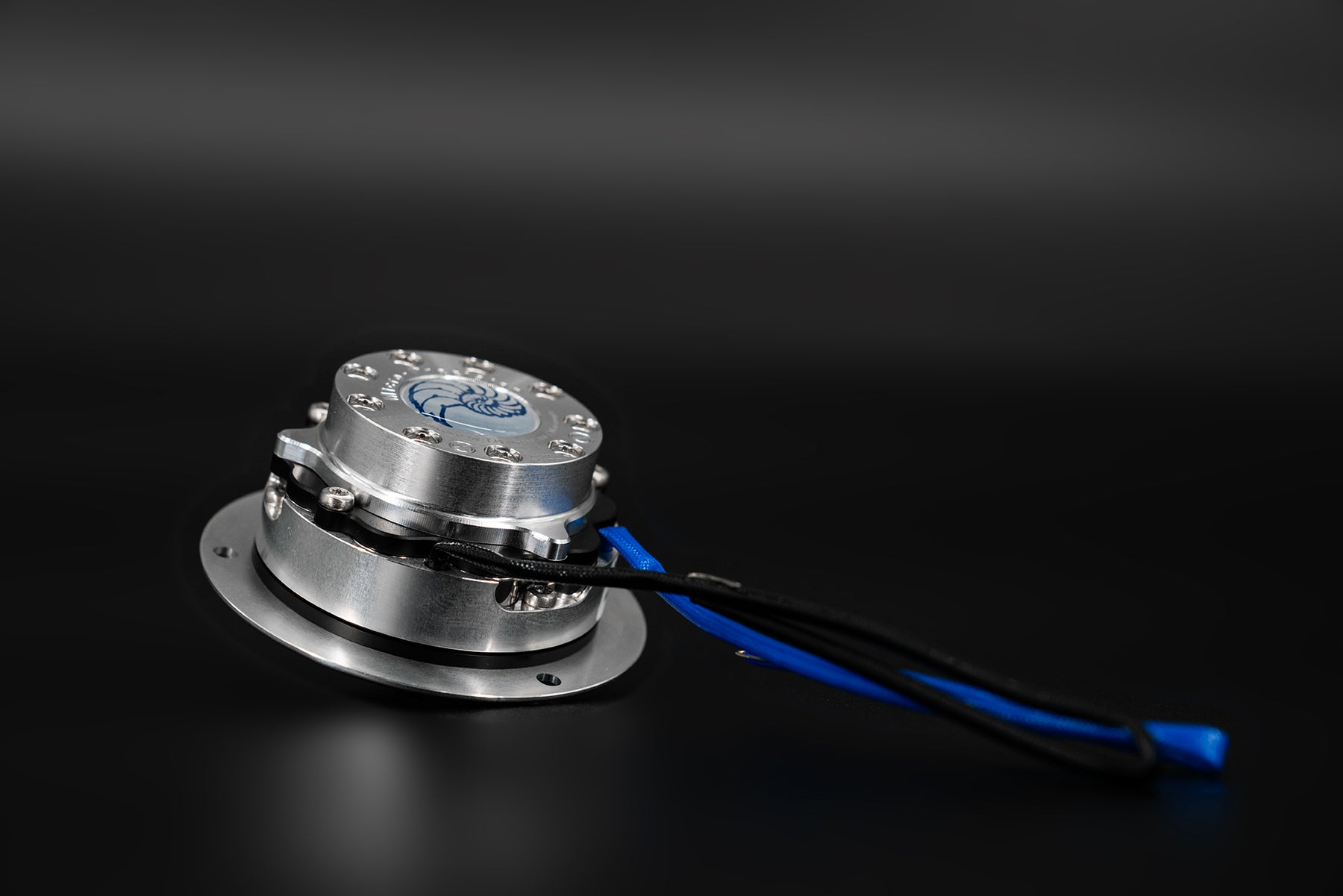

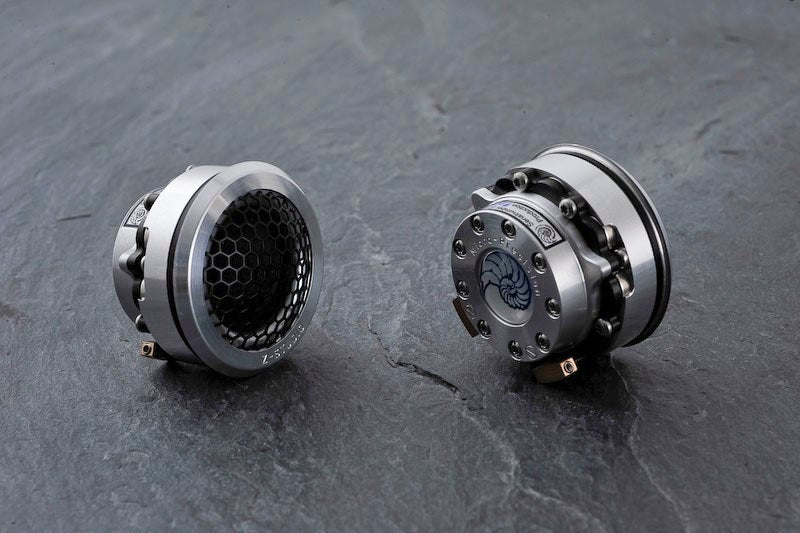

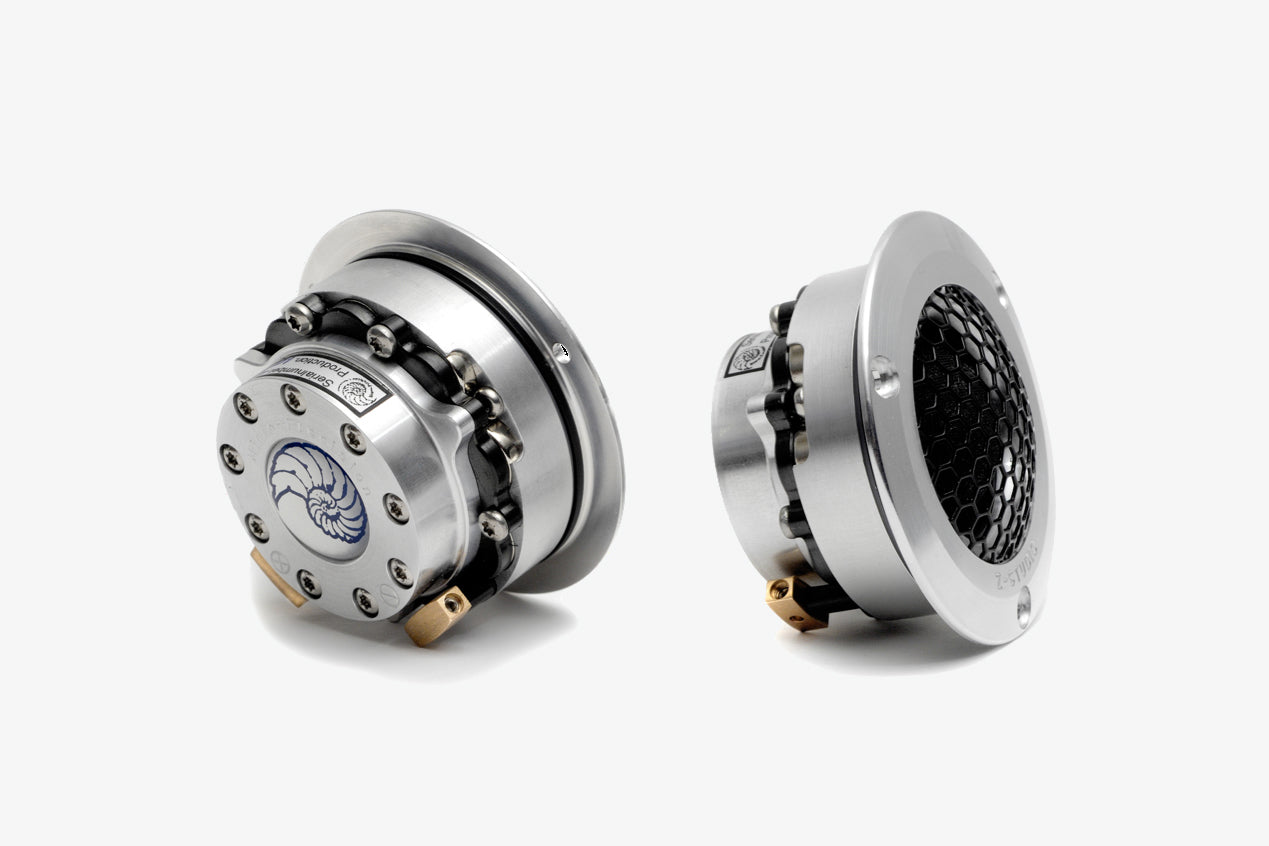

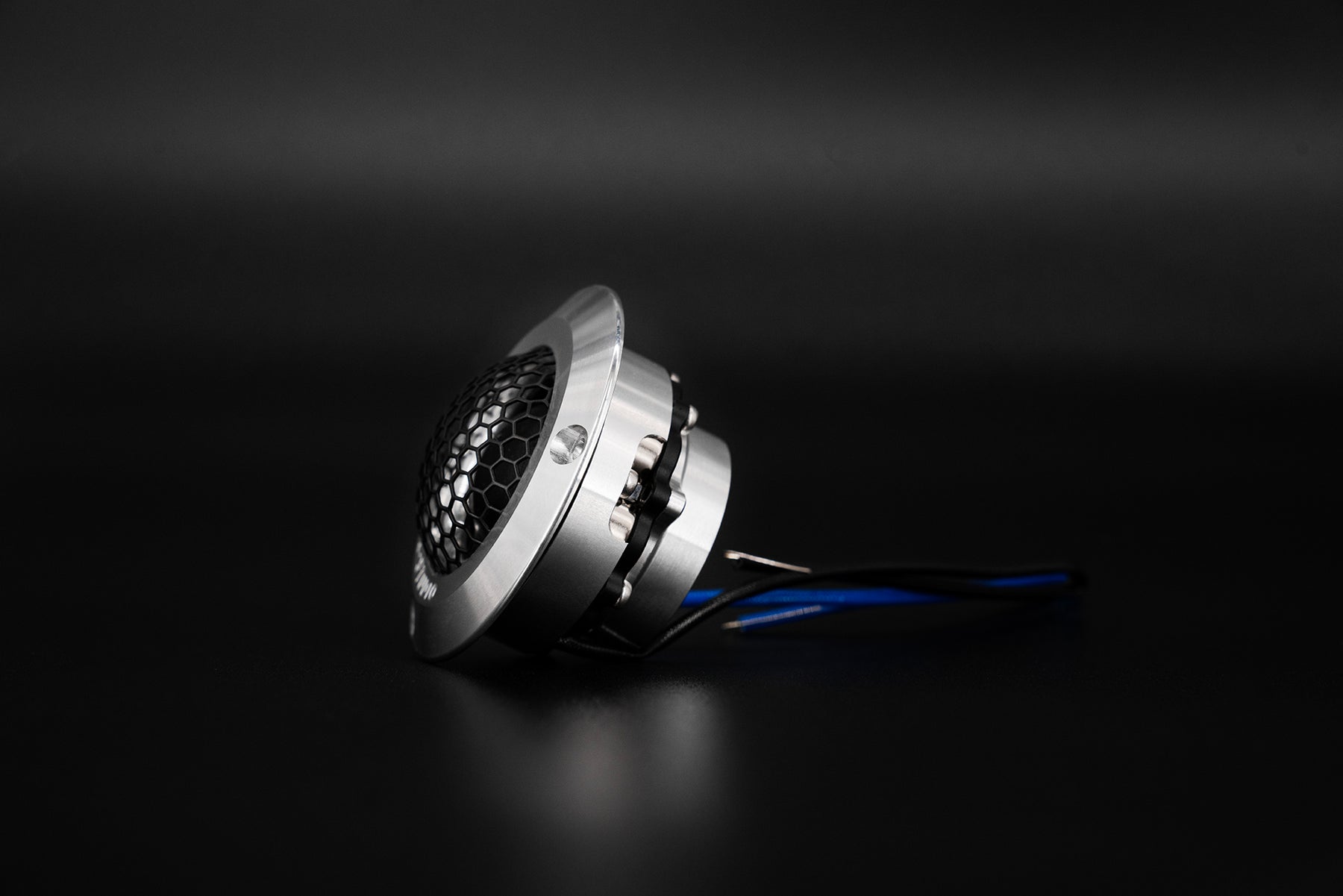

Micro Precision Z-Studio Tweeter - Pair

1 review

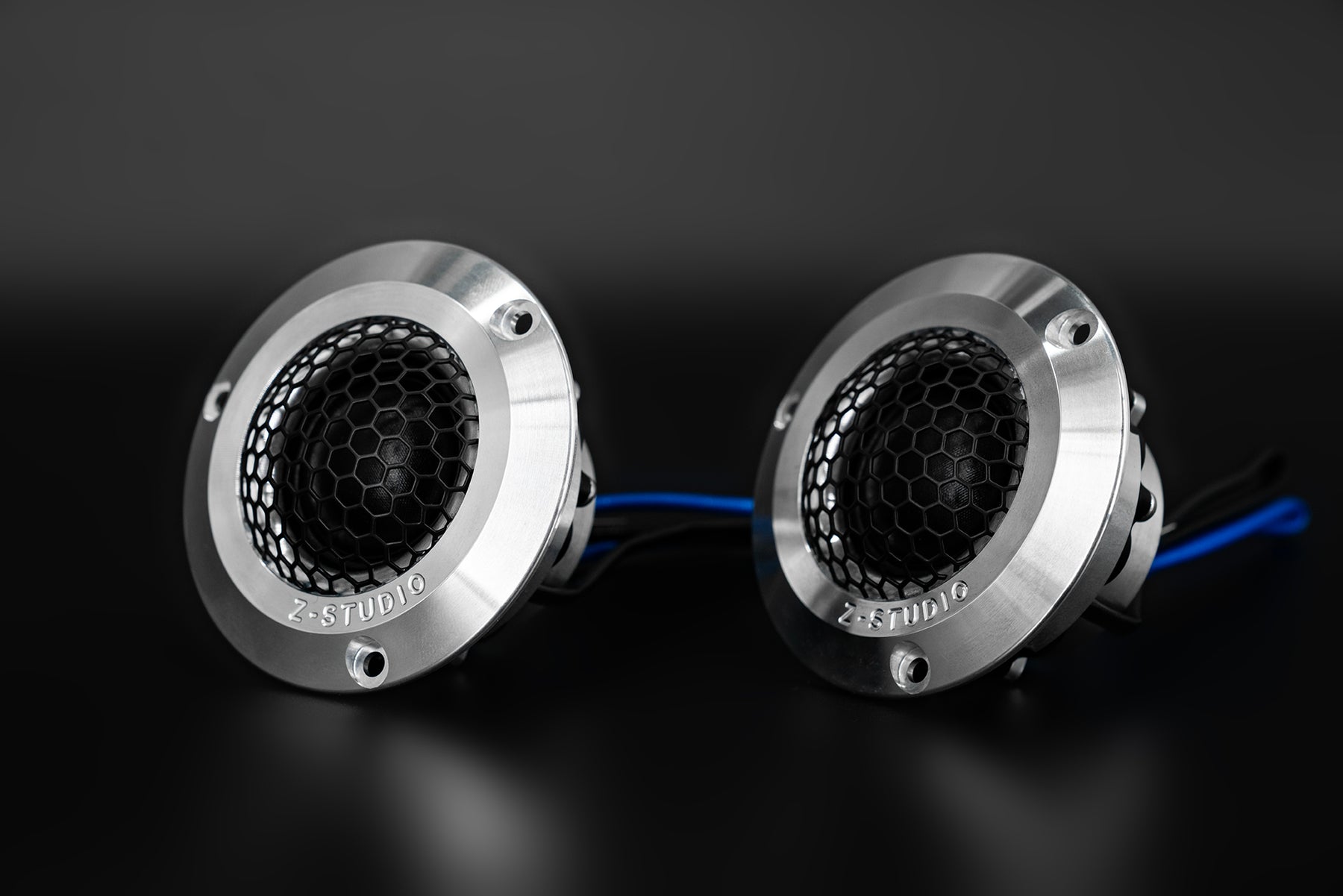

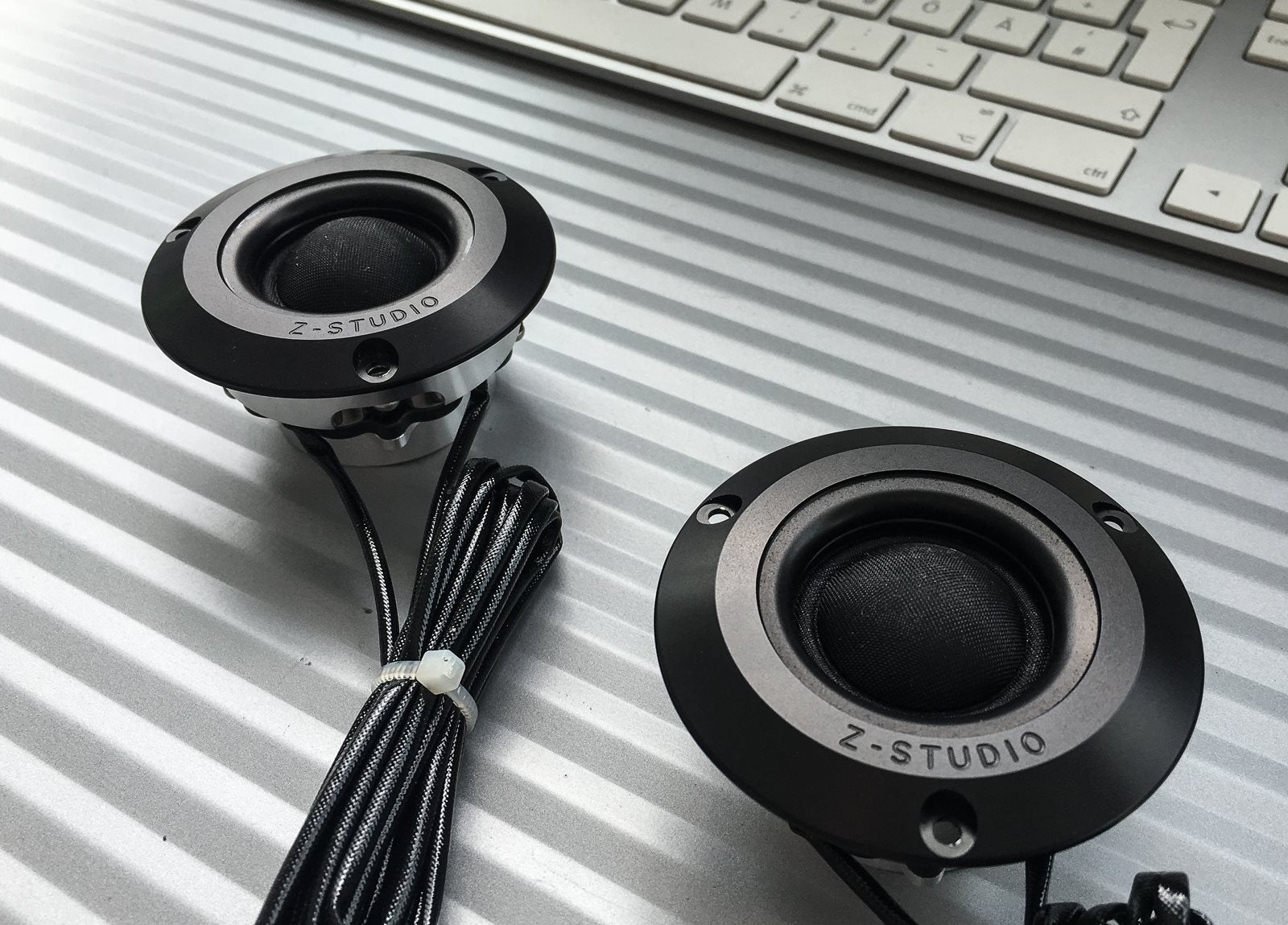

The Z-Studio Tweeter is Micro Precision’s top-tier high-frequency driver, built with zero tolerance for variation. Featuring a fully CNC-machined body, ultra-efficient motor, pure silver wiring, and a redesigned membrane and voice coil, it delivers exceptional resolution, dynamics, and output with minimal distortion.

Sold as a pair.

Specialty Order Only. Call For Consultation. 269-737-6649

$5,900.00

Custom order only. Contact us

Uncompromising Quality.

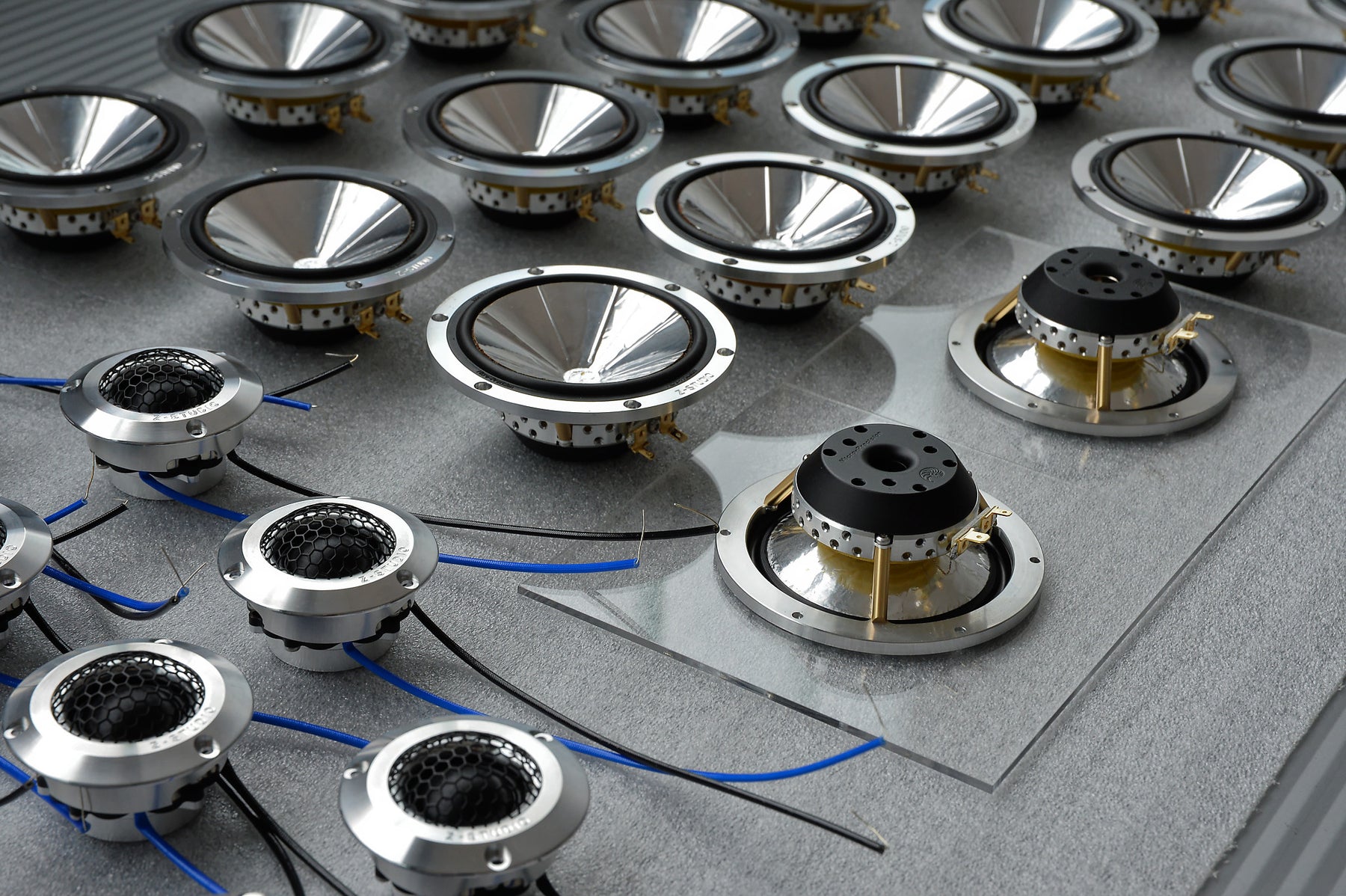

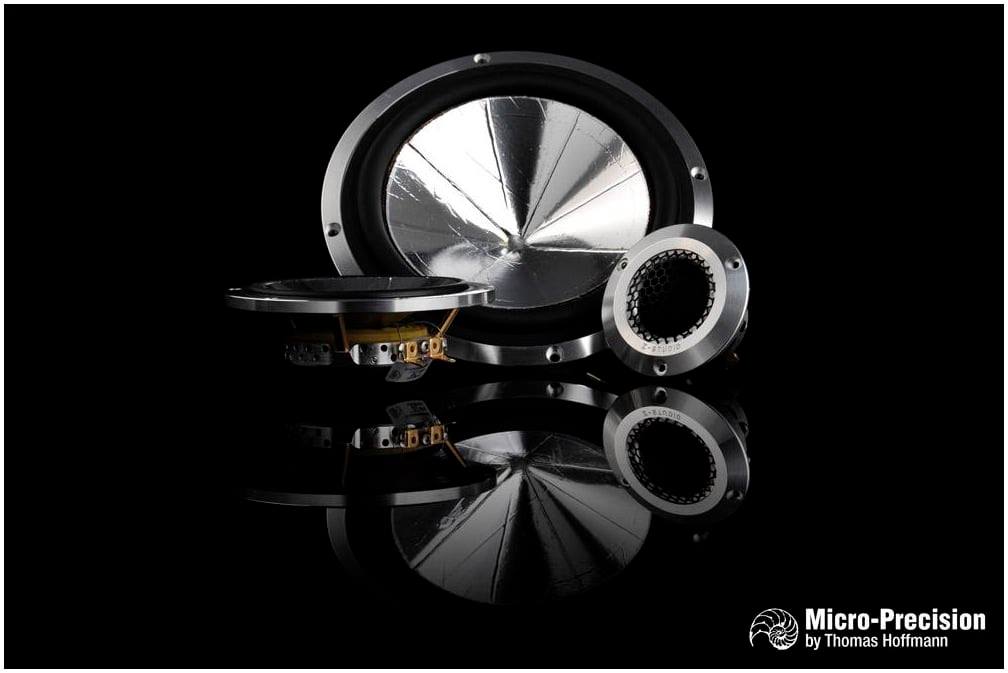

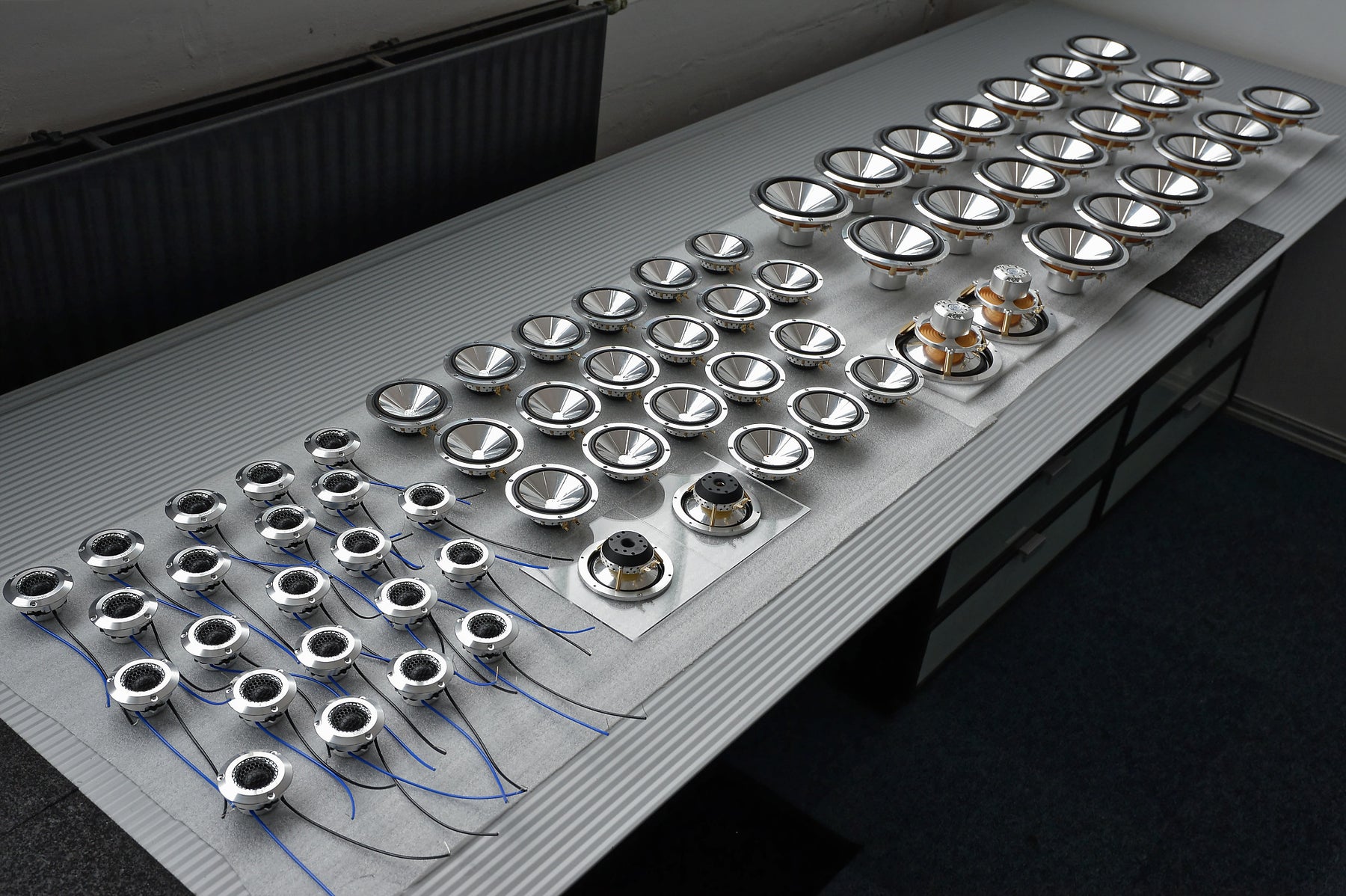

       The Micro Precision Z-Studio Tweeter, a culmination of four years of research and development, is a testament to the brand’s dedication to audio excellence. This tweeter is part of the Z-Studio range, which offers five exclusive products designed to meet the needs of discerning listeners. The underlying philosophy of all Z-Studio products is the necessity of a stiff and lightweight membrane for accurate sound reproduction.

       Precision-engineered with no tolerances and fully CNC manufactured, this tweeter stands out for its very high efficiency and strong magnetic field, ensuring exceptional dynamic range and resolution. It also comes with mounting accessories for easy installation.

       A key feature of the Z-Studio Tweeter is its incredibly light moving mass, less than 0.3 grams. This ultra-low mass allows it to reproduce every nuance of sound with full dynamics and without distortion. The membrane’s extreme stiffness is a result of a unique “resin foam between 6µm Aluminium foils” technology, a patented German innovation dating back to 1935 and now in its second generation of production. Handmade with meticulous care, the production of these membranes averages just one piece per day.

       The membrane comprises over 80% air within the resin foam, striking the perfect balance between low weight and maximum stiffness, coupled with optimal acoustical properties. This achievement is further enhanced by the membrane’s basis in natural materials, combining traditional craftsmanship with modern technology.

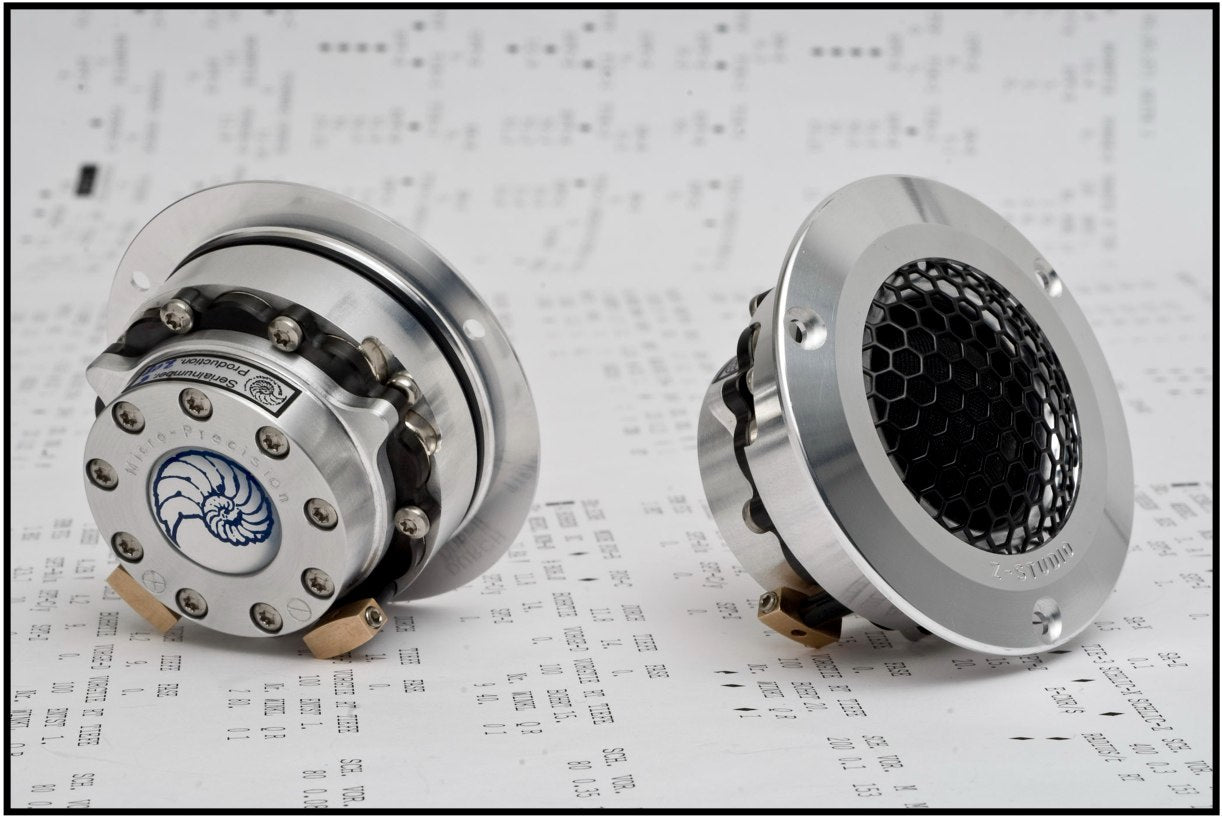

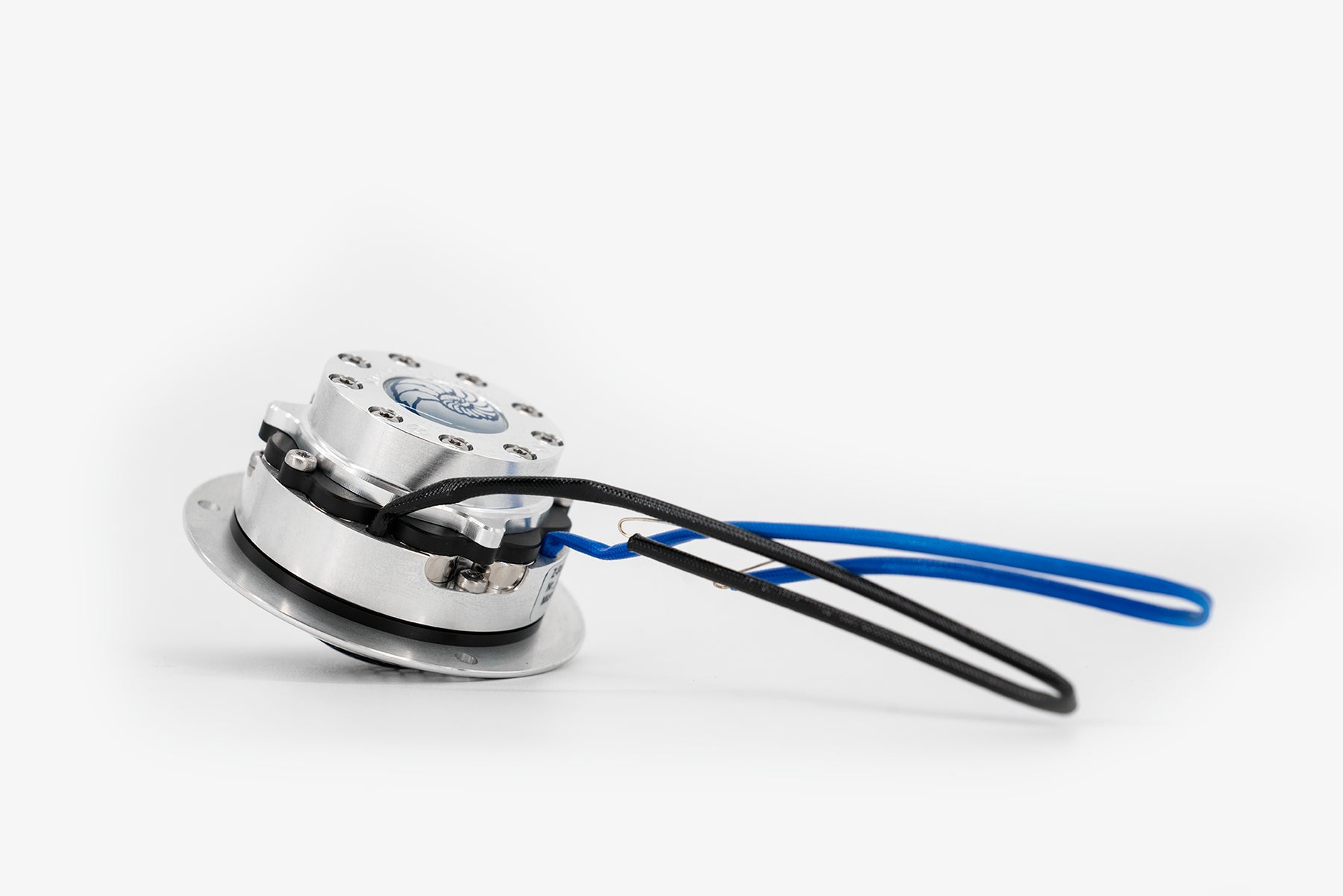

       The excellence of the Z-Studio Tweeter is further exemplified by its chassis, crafted using the finest CNC technology. This approach underscores Micro Precision’s commitment to using advanced techniques and materials to produce a tweeter that not only meets but exceeds the highest standards of audio performance.

Call For Availability & Price On All Micro Precision Products

  • RE: 4 ohms
  • FS: 1150 Hz
  • Efficiency: 94 dB/W/m
  • Outer Diameter: 67.0 mm
  • Cutout Diameter: 52.6 mm
  • Mounting Hole Pattern Diameter: 59.6 mm
  • Total Height: 35.0 mm
  • Interior Depth: 30 mm
  • Voice Coil: Kapton
  • Voice Coil Diameter: 25 mm
  • Membrane: Silk

This file download contains:

  • Technical information for Micro Precision 3-series, 5-series, 7-series, Z-series, and Z-studio speakers and amplifiers
Download Micro Precision Technical Datasheets - 2024
