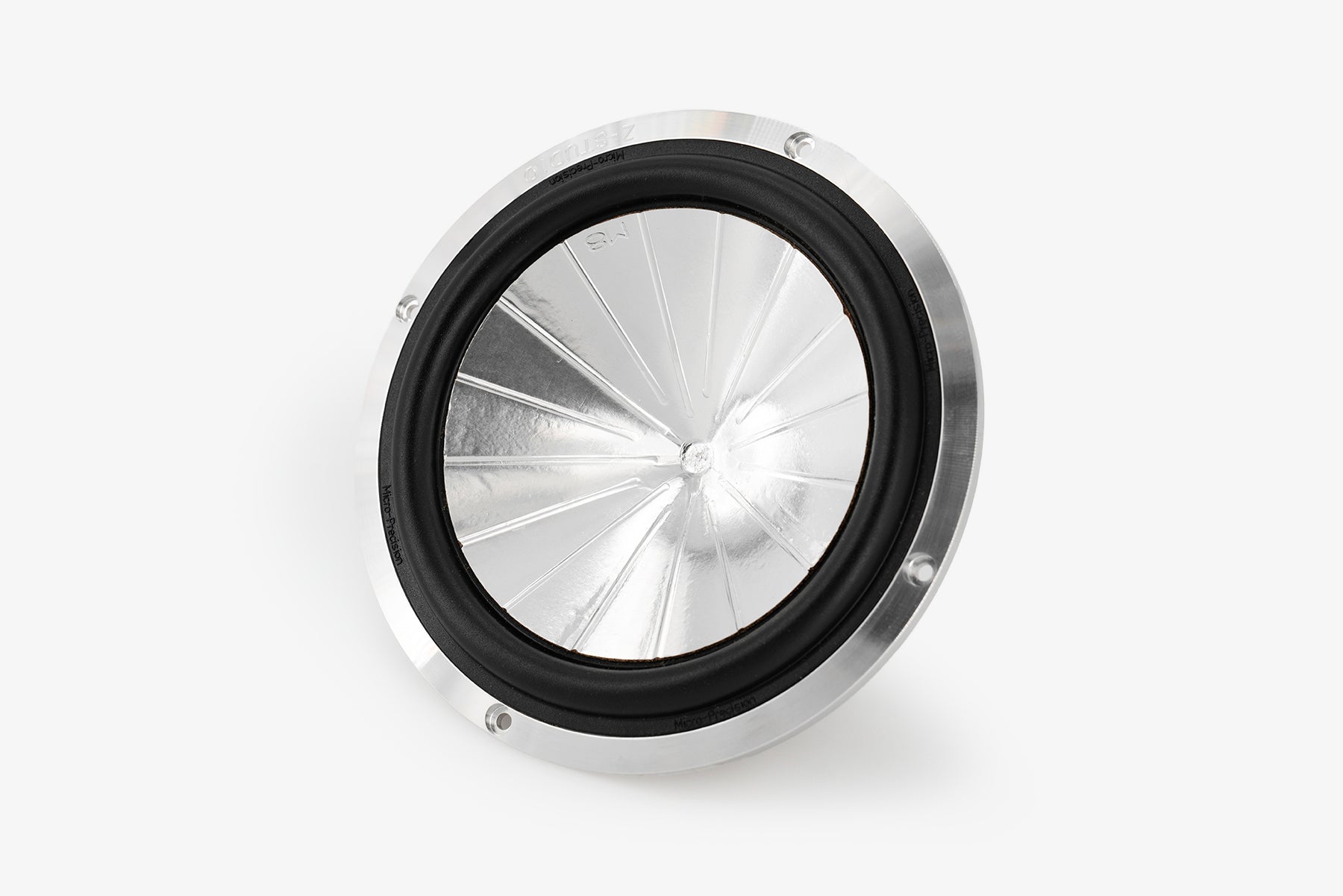

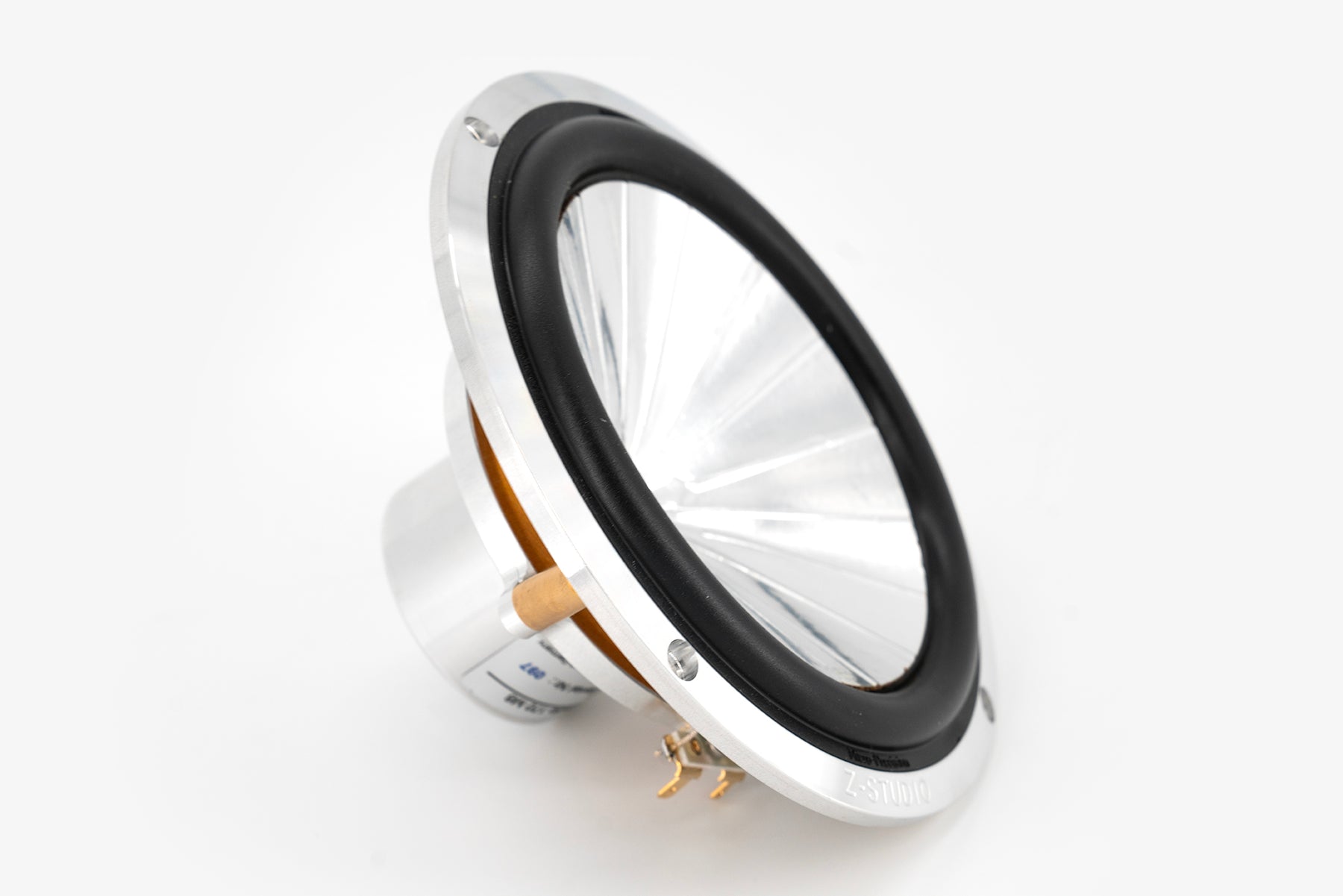

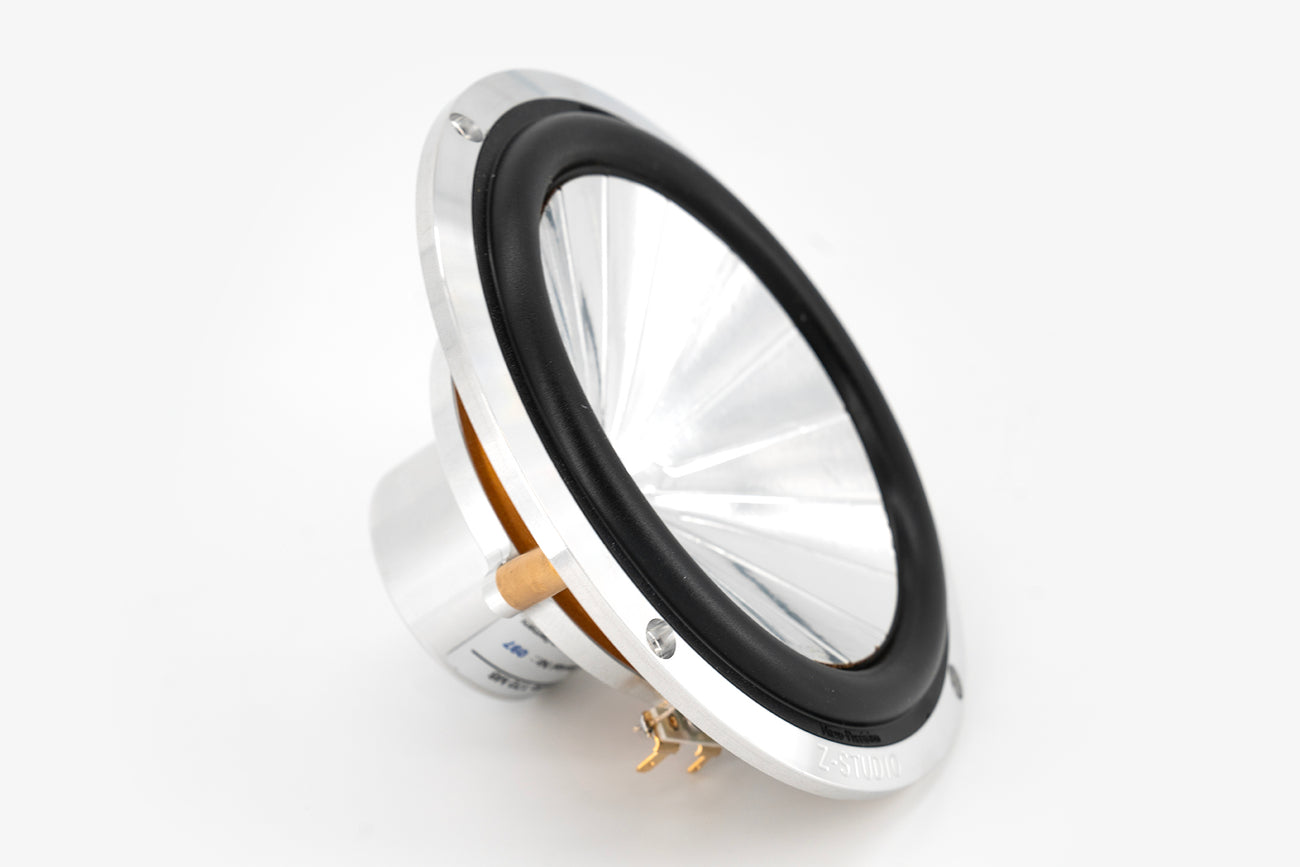

Micro Precision Z-Studio 170 6.5" Midbass - Single

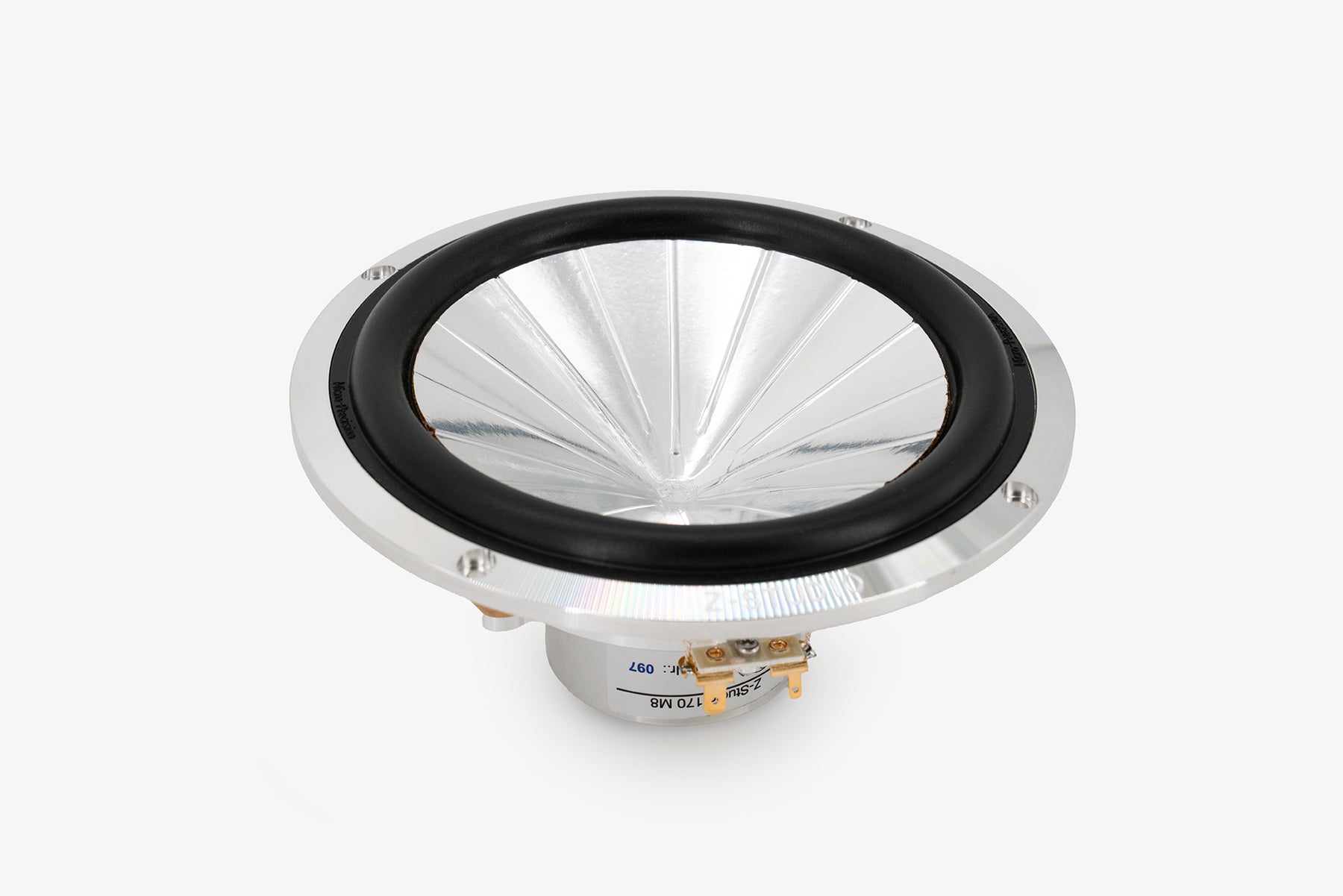

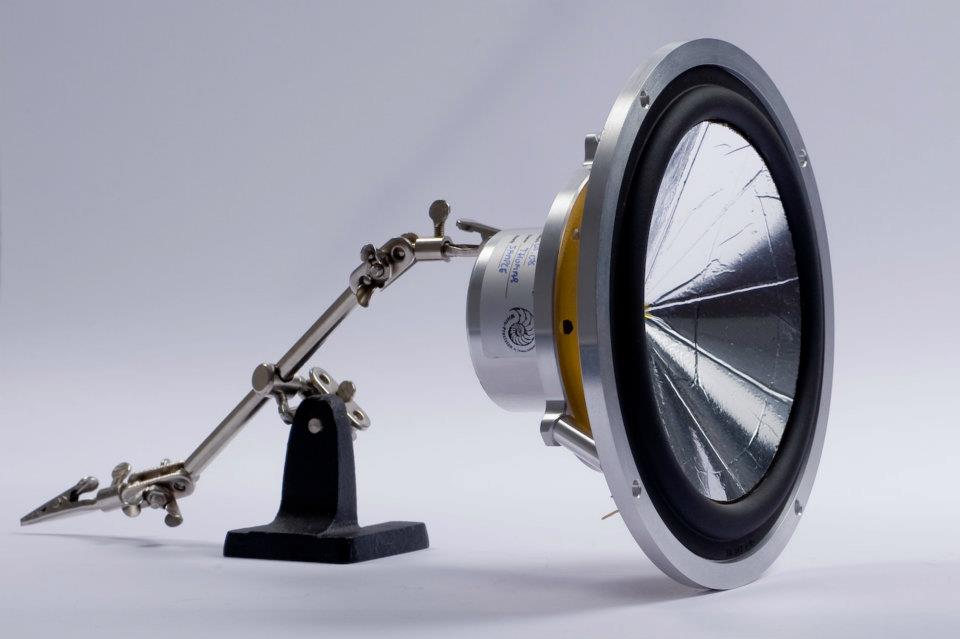

The Z-Studio 170 is Micro Precision’s flagship 6.5″ midbass driver,
built with zero compromises for the highest level of performance.
Featuring an ultra-light 2.2 g membrane, removable magnet system,
CNC-machined basket with brass damping, and extreme venting, it delivers
unmatched detail, clarity, and dynamics with virtually no distortion.
Sold as a single unit. Order 2 to receive a pair.
Specialty Order Only. Call For Consultation. 269-737-6649
$2,950.00
Custom order only. Contact us
Micro Precision Z-Studio 170 6.5" High-End Car Audio Midbass Driver
The Micro Precision Z-Studio 170 6.5-inch midbass driver, launched in May 2008, represents an advanced step in audio technology, following the release of the “Z-Studio Tweeter.” This midbass driver excels in delivering a balanced bass-midrange performance with exceptionally low distortion across the 50-5,000 Hz frequency range. It introduces a new level of detail and dynamic range without compression.

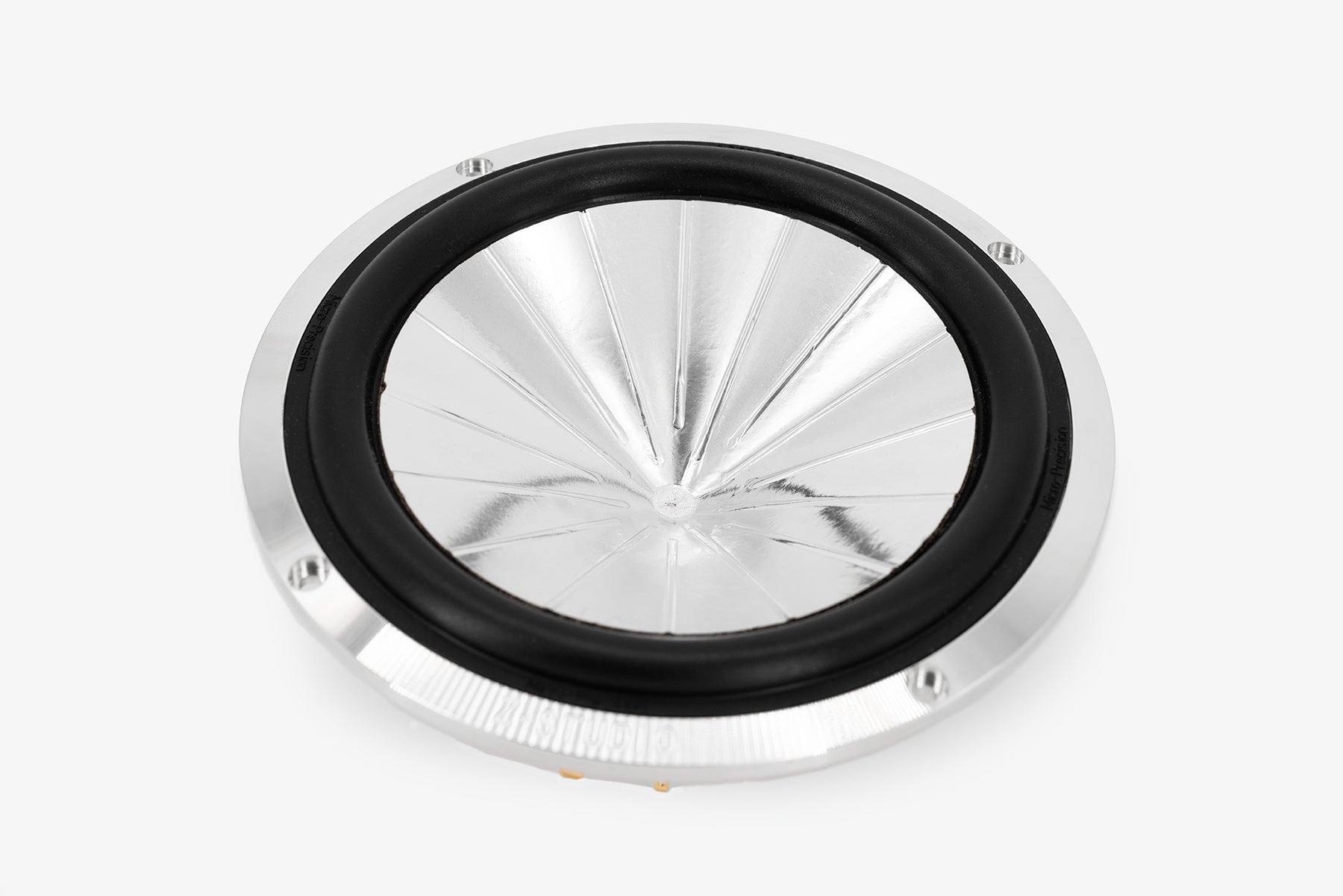

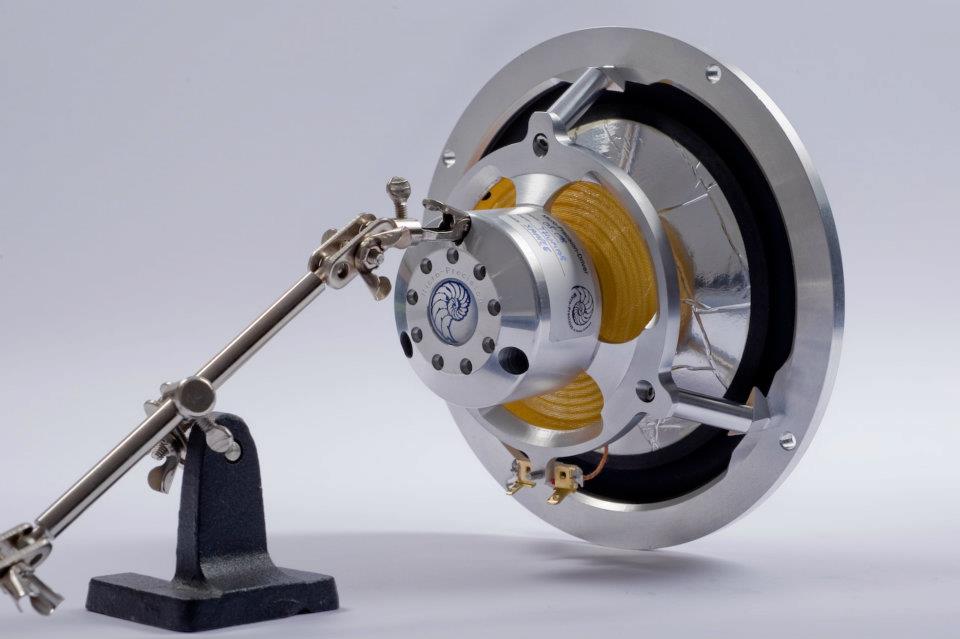

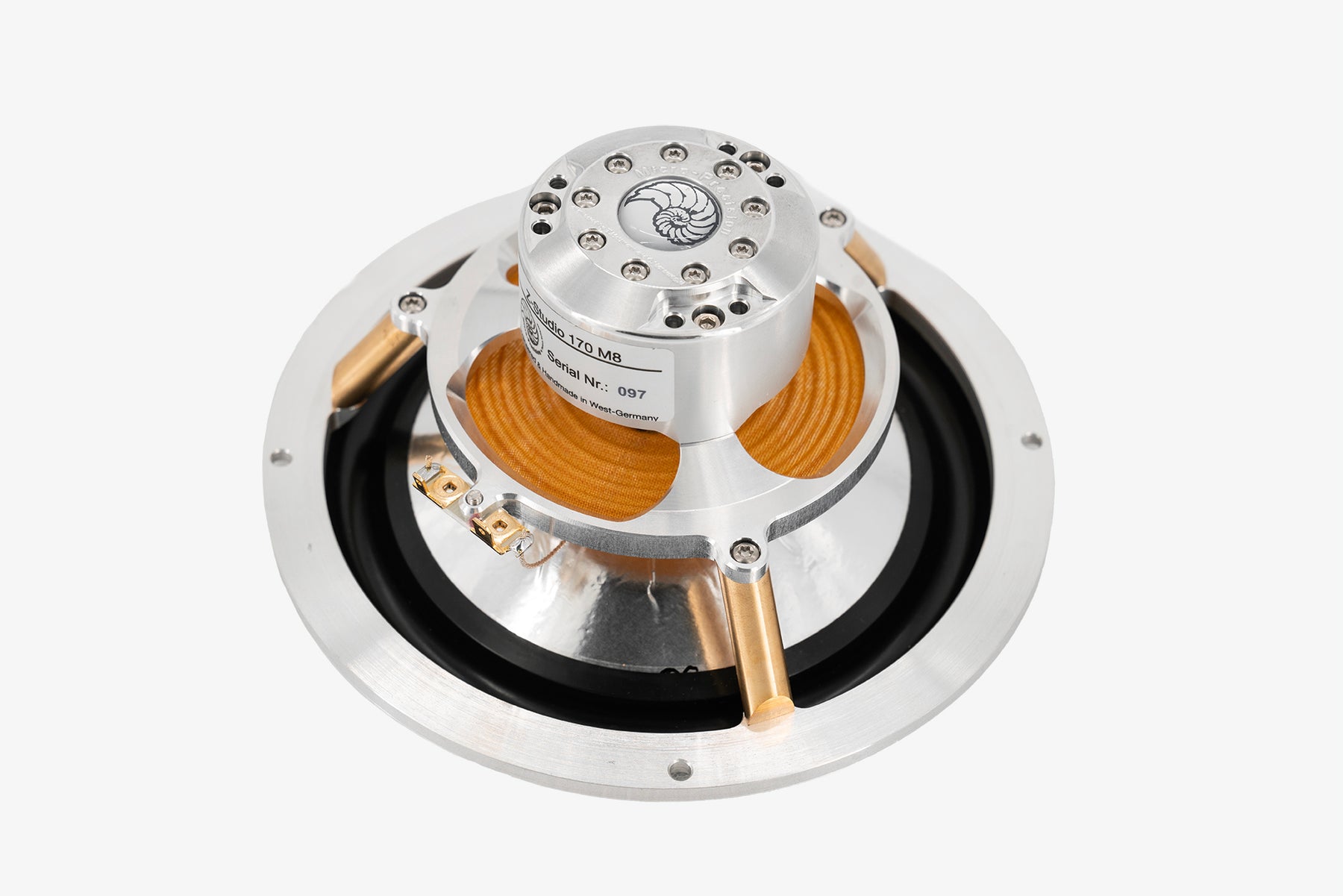

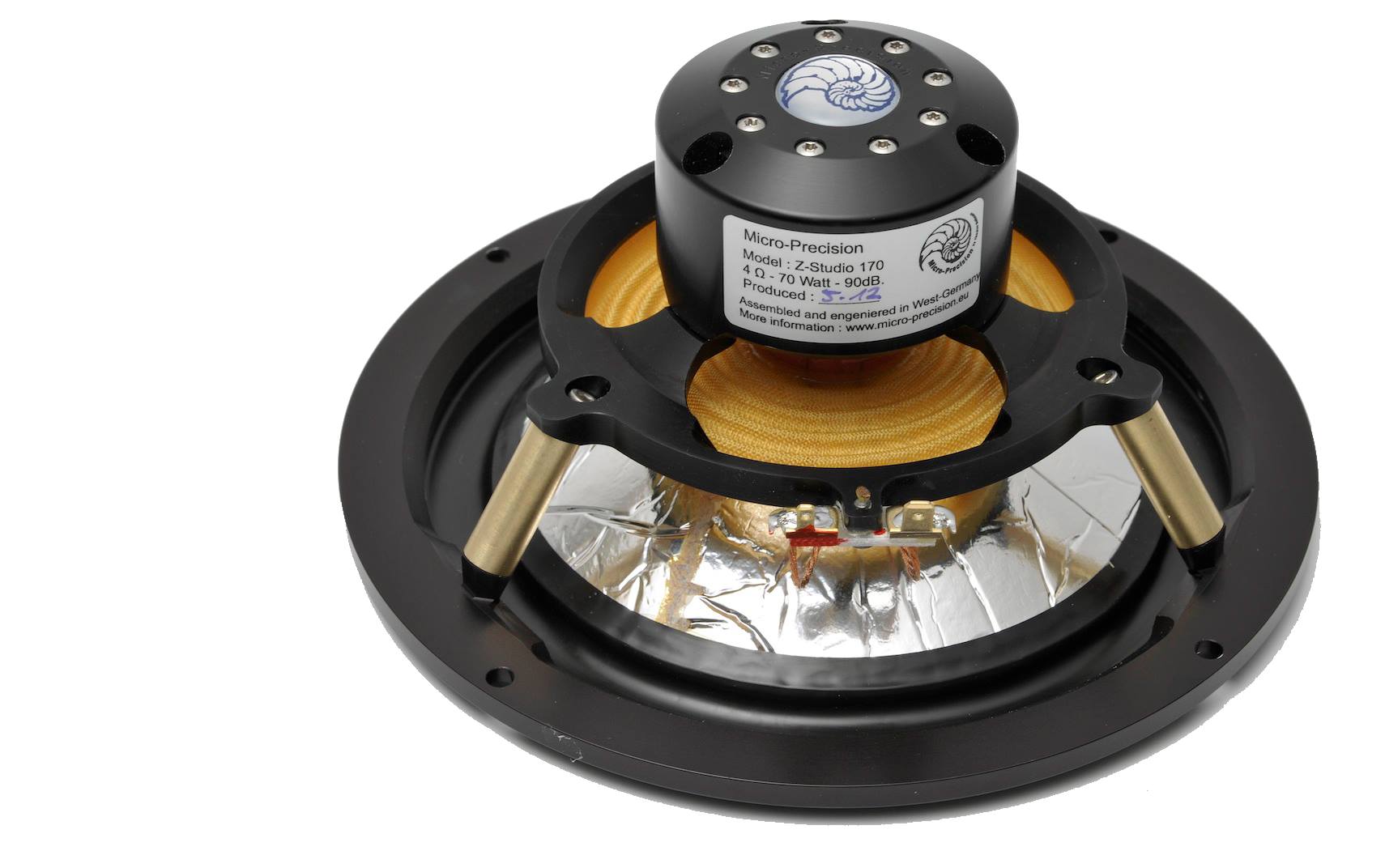

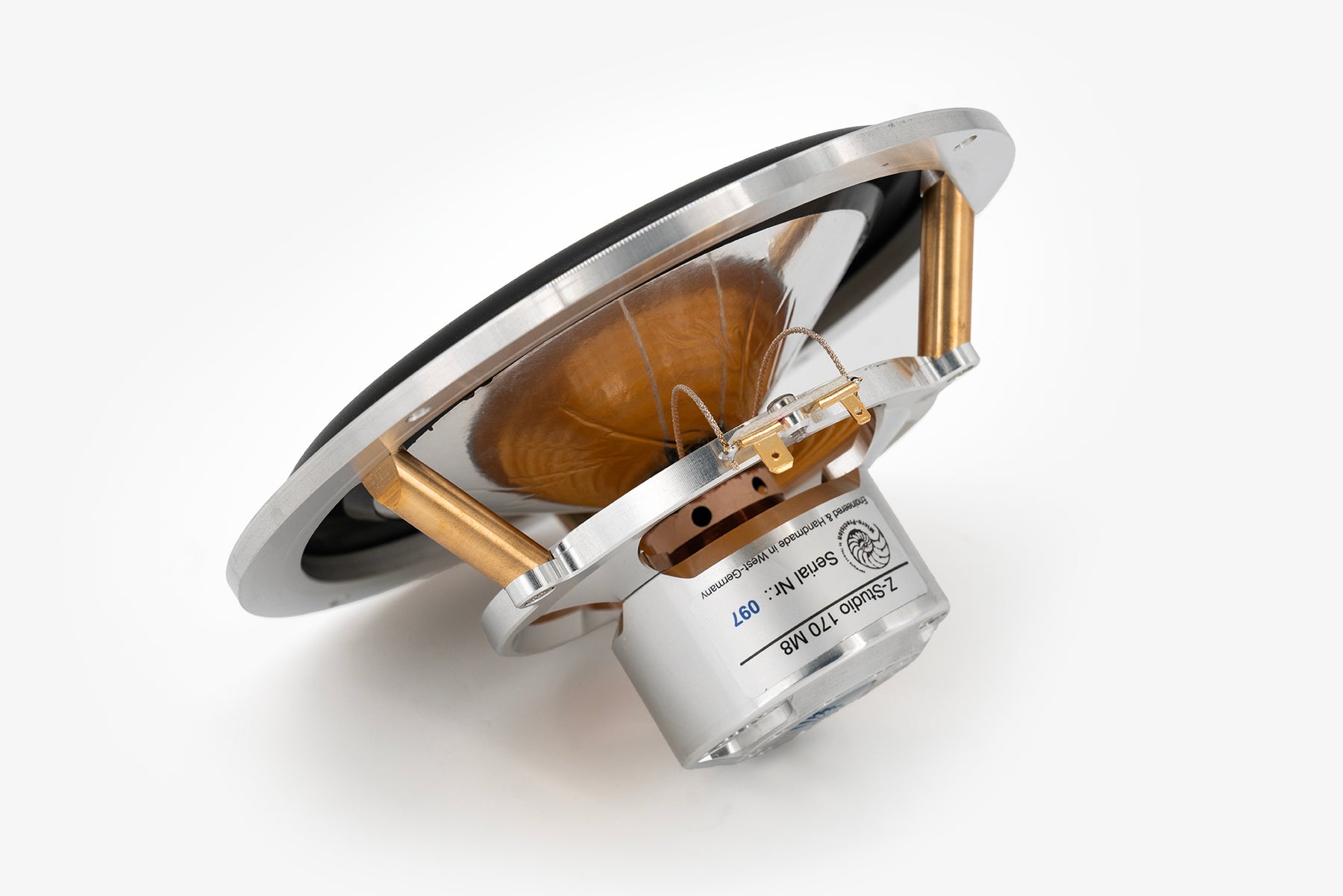

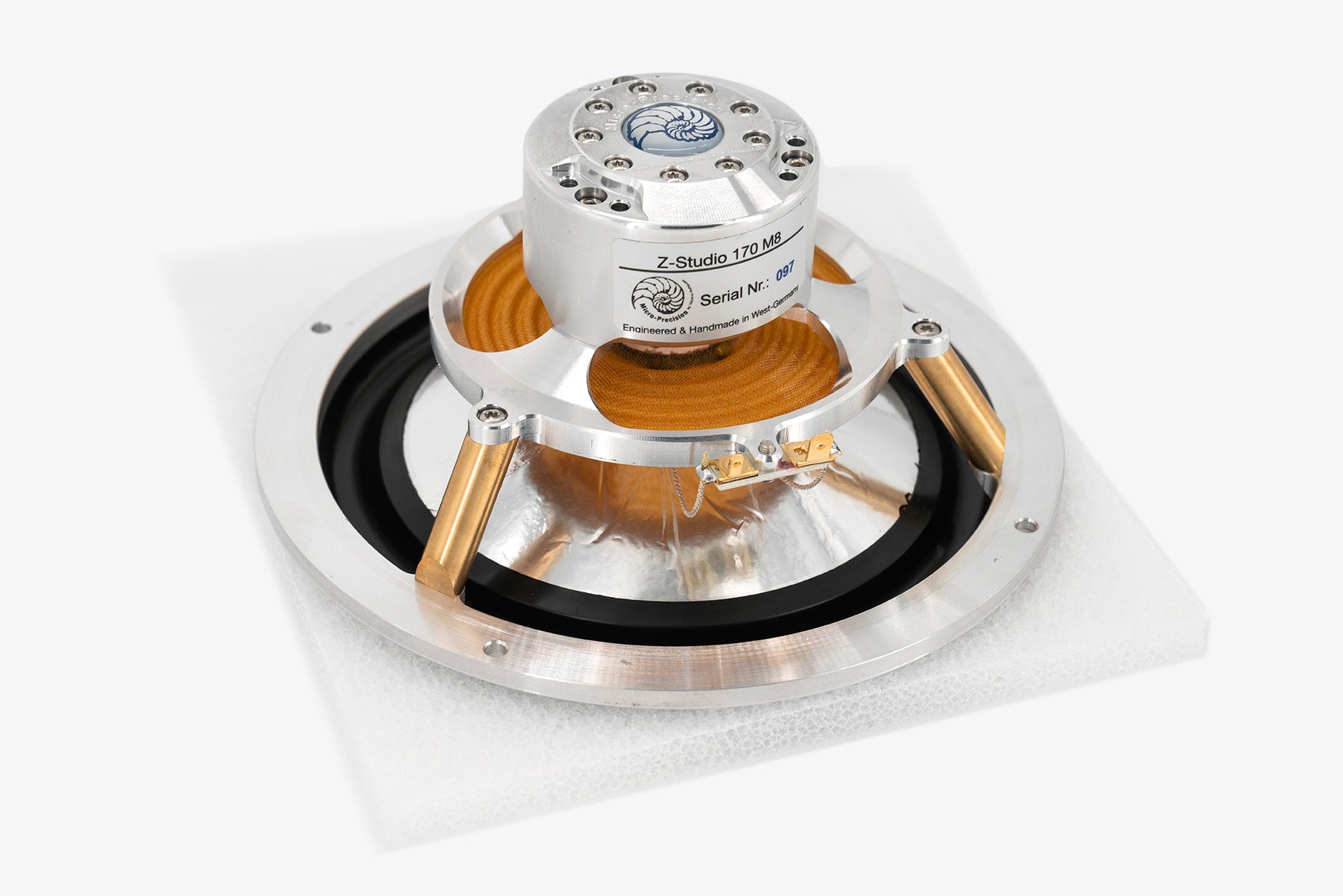

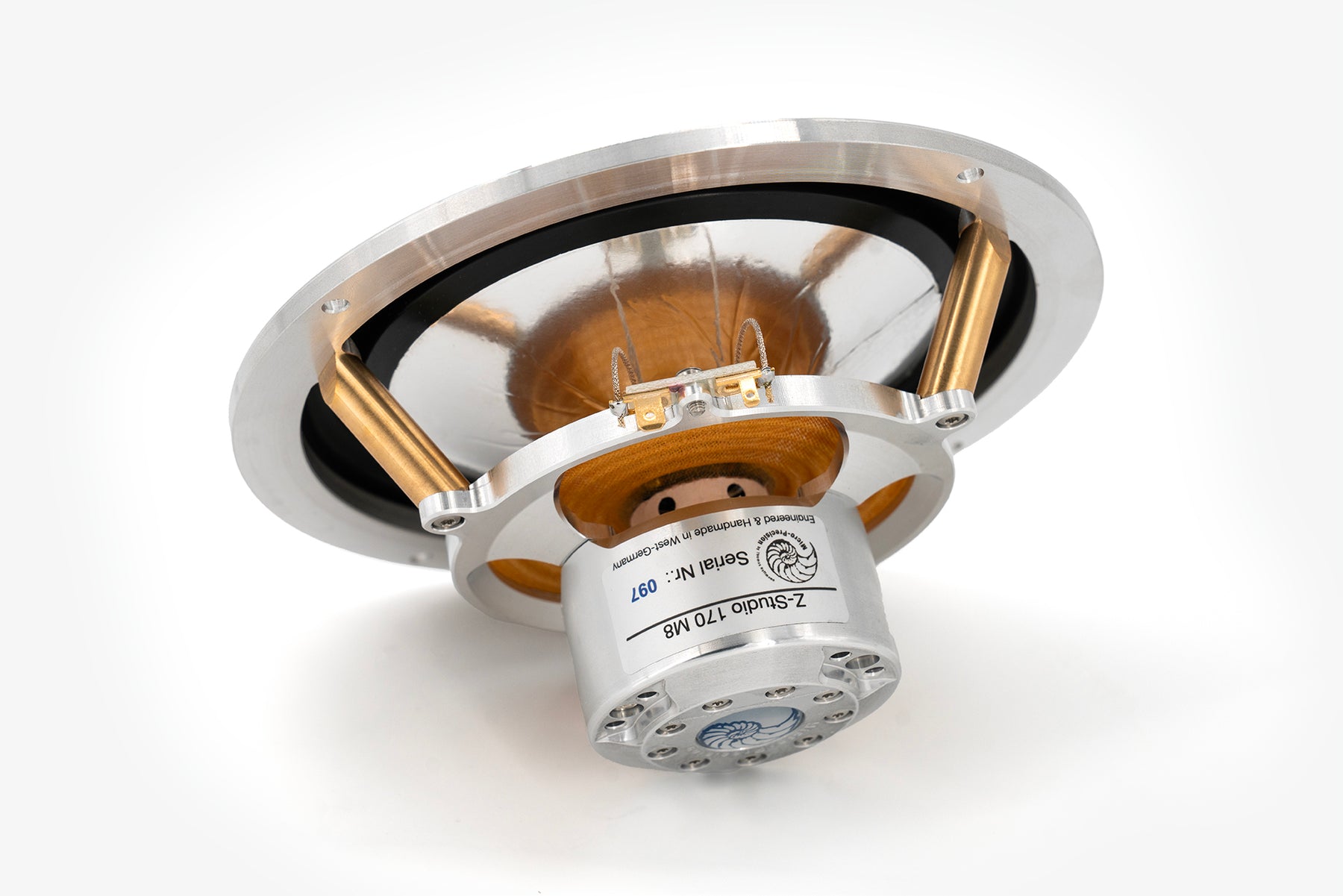

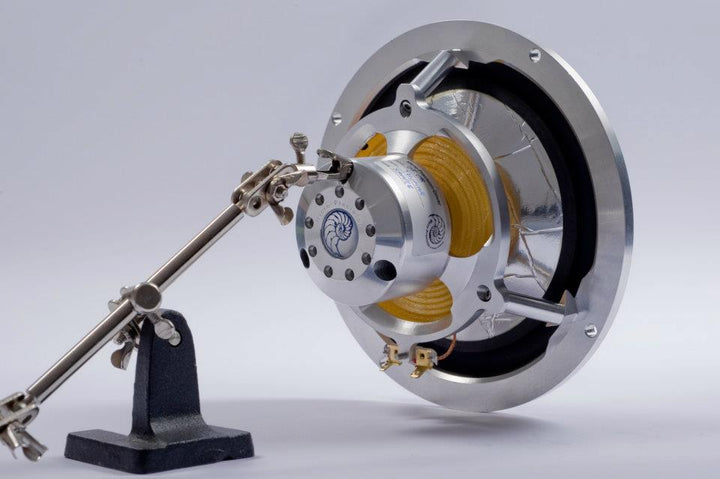

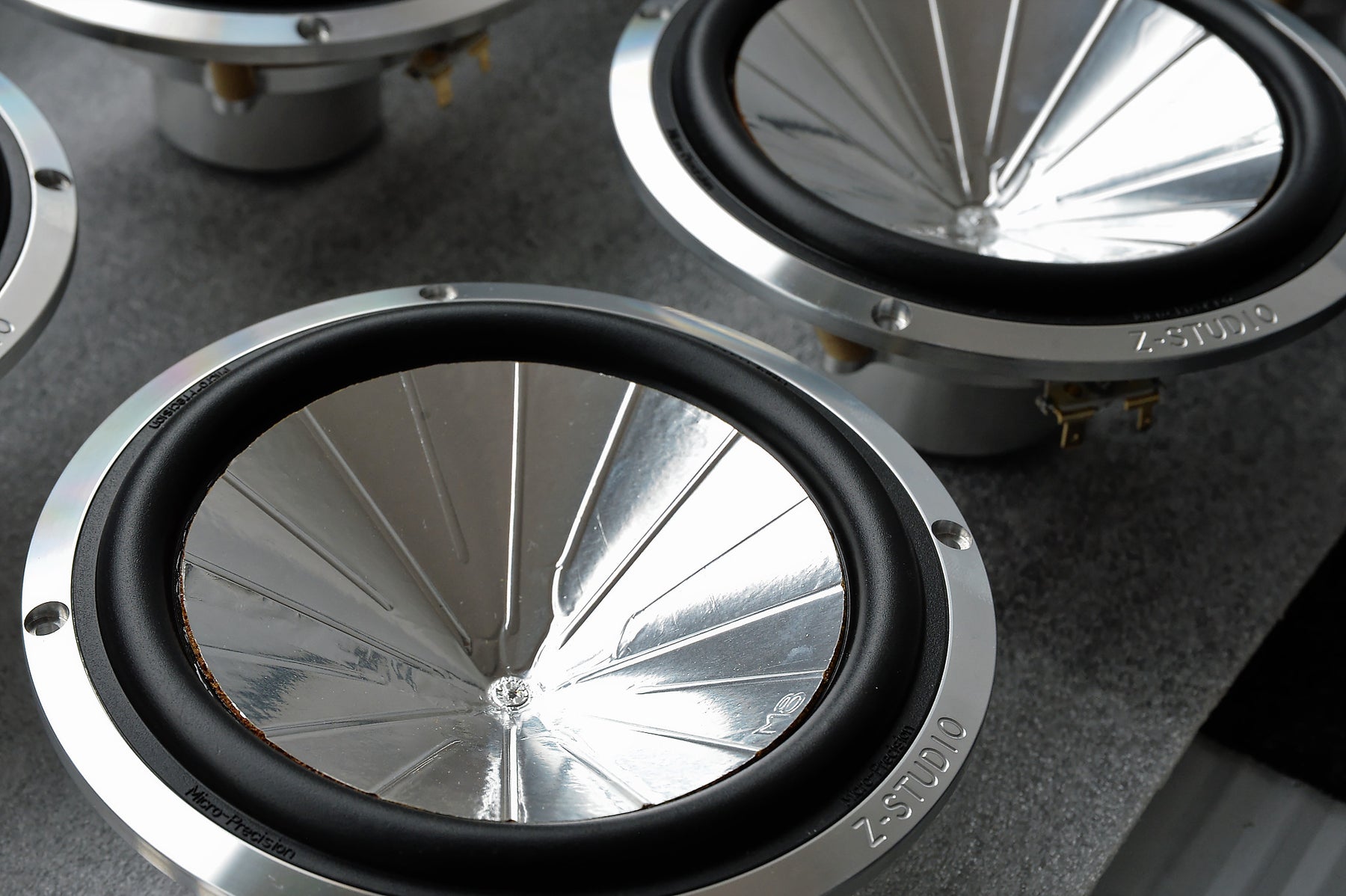

A key feature of the Z-Studio 170 is its innovative removable magnet system. This design allows for easy updates or upgrades to the magnet system without risking damage to the delicate membrane. The membrane itself is specially crafted for the clearest midrange and bass reproduction, weighing a mere 2.2 grams. Its surround geometry is meticulously designed using CAD software and produced to ensure optimal linear movement and perfect centering. The basket is precision-assembled, with 100% CNC production ensuring zero tolerance and no ringing. Additionally, the driver includes brass damping elements and maximized venting for the coil and spider, enhancing the overall sound quality.
- Total Height: 79.2mm
- Outer Diameter: 170mm
- Cutout Diameter: 145mm
- Mounting Hole Pattern Diameter: 162mm
- Mounting Depth: 72.2mm
- FS: 49Hz
- Sensitivity: 88db
- Impedance: 8-ohms
- Power Handling: 70 RMS, 150 Dynamic
- Voice Coil: GF/CCAW
- Voicecoil Diameter: 25mm
- Membrane: Z
- Recommended Minimum Filter with Recommended Power (70 RMS): 63Hz/12db
This file download contains:
- Technical information for Micro Precision 3-series, 5-series, 7-series, Z-series, and Z-studio speakers and amplifiers
