Micro Precision 3.16 MkII 6.5" Midwoofer - Pair

The Micro Precision 3.16 MKII is a 6.5-inch midbass driver featuring a rigid aluminum cone, vented anodized aluminum voice coil, and compact mounting depth. It is designed for clean, controlled midbass and midrange reproduction in two-way and three-way systems.

$450.00 $599.00

Micro Precision 3.16 MKII 6.5-Inch Midbass Driver

The Micro Precision 3.16 MKII is a 6.5-inch midbass driver designed for two-way and three-way automotive audio systems. It features a rigid aluminum cone and a vented anodized aluminum voice coil, providing a lightweight and controlled design for midbass and midrange reproduction.

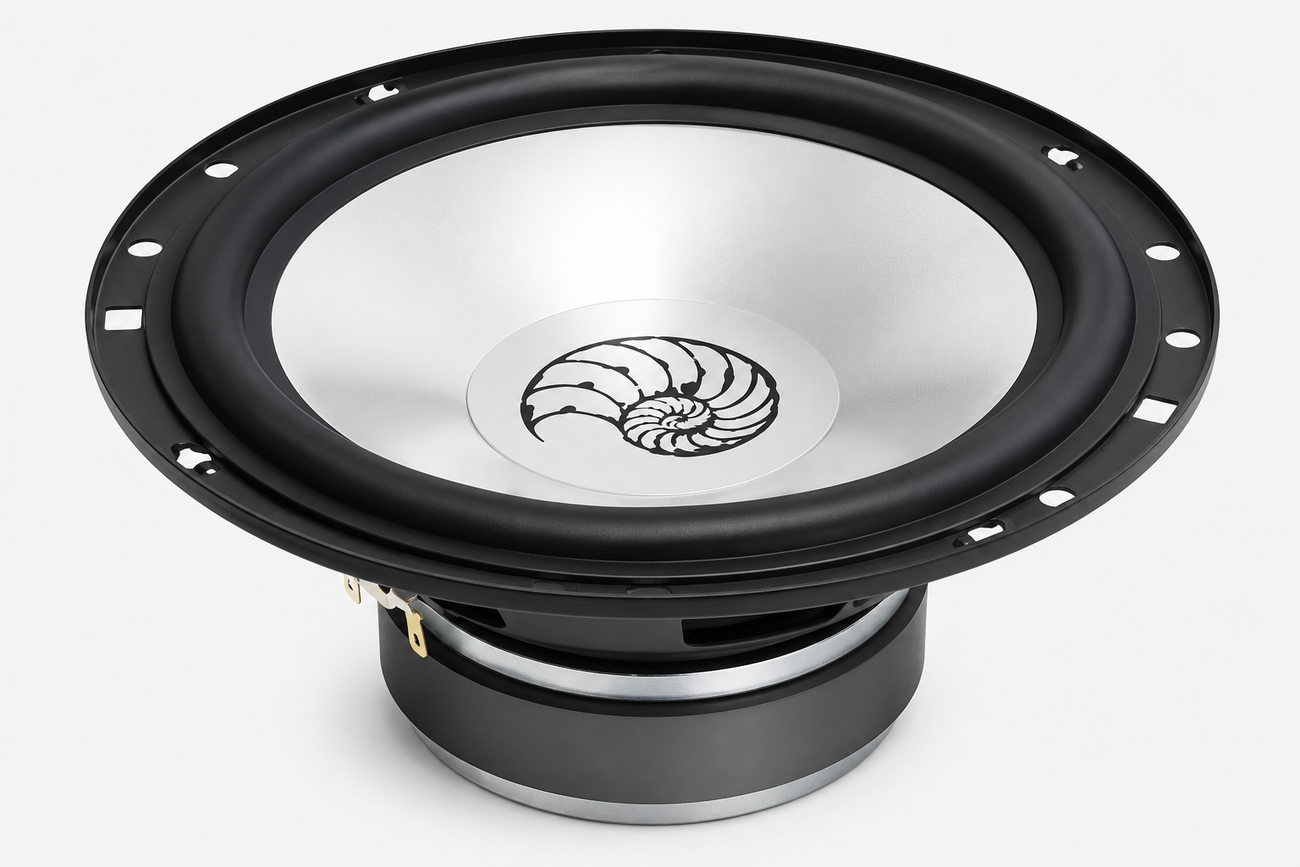

Aluminum Cone

The 3.16 MKII uses an aluminum cone with a geometry designed to control unwanted resonances through the midrange. This allows the driver to cover a broad operating range while maintaining clear and controlled reproduction.

Its combination of cone rigidity and relatively low moving mass makes it suitable for systems where both midbass impact and midrange detail are important.

Vented Aluminum Voice Coil

The driver uses Micro Precision’s vented 5+1 voice coil made from anodized aluminum. This lightweight voice coil complements the aluminum cone while ventilation assists with heat management during operation.

Compact Installation

The 3.16 MKII has a 145mm cutout diameter and a 64.2mm mounting depth, allowing it to fit many standard 6.5-inch automotive speaker locations.

With a free-air resonance of approximately 62Hz and sensitivity rated at 89.4dB, it is suitable for use as the midbass foundation of an active or passive component system.

Key Features

6.5-inch midbass driver
Rigid aluminum cone
Cone geometry designed to control midrange resonances
Vented 5+1 voice coil
Anodized aluminum voice coil
Approximately 62Hz resonant frequency
89.4dB sensitivity
64.2mm mounting depth
Suitable for two-way and three-way systems
Sold as a pair

Technical Data

Specification	Details
Product	Micro Precision 3.16 MKII
Speaker Type	Midwoofer
Quantity	Pair
Outer Diameter	167 mm
Cutout Diameter	145 mm
Drill Circle	157 mm
Total Height	67.3 mm
Interior Depth	64.2 mm
DC Resistance (RDC)	3.6 Ω
Resonant Frequency (Fs)	62.00 Hz
Qms	5.27
Qes	1.19
Qts	0.97
Vas	16.20 L
SPL	89.40 dB
CMS	0.66 mm/N
Voice Coil	AL 25/12
Voice Coil Material	Anodized Aluminum
Voice Coil Configuration	Vented 5+1
Membrane	Aluminum
Weight	1.9 kg / Pair

Physical Specifications

Outer Diameter: 167 mm (6.57")
Cutout Diameter: 145 mm (5.71")
Drill Circle: 157 mm (6.18")
Total Height: 67.3 mm (2.65")
Interior Depth: 64.2 mm (2.53")
Weight: 1.9 kg / Pair (4.19 lb / Pair)

Speaker Type: Midwoofer
Outer Diameter: 167 mm (6.57")
Cutout Diameter: 145 mm (5.71")
Drill Circle: 157 mm (6.18")
Total Height: 67.3 mm (2.65")

Interior Depth: 64.2 mm (2.53")
Membrane Material: Aluminum
Voice Coil: AL 25/12, anodized aluminum
Voice Coil Configuration: Vented 5+1
Weight: 1.9 kg / Pair (4.19 lb / Pair)
