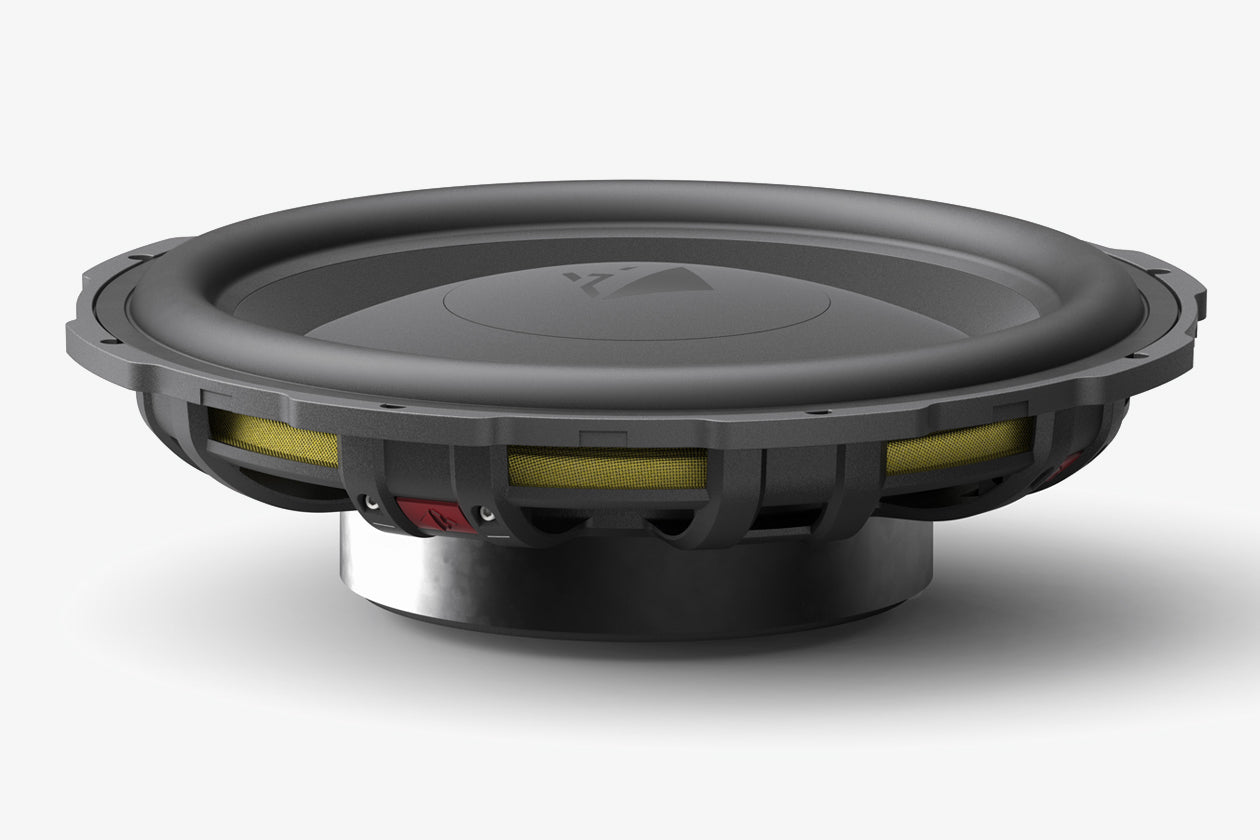

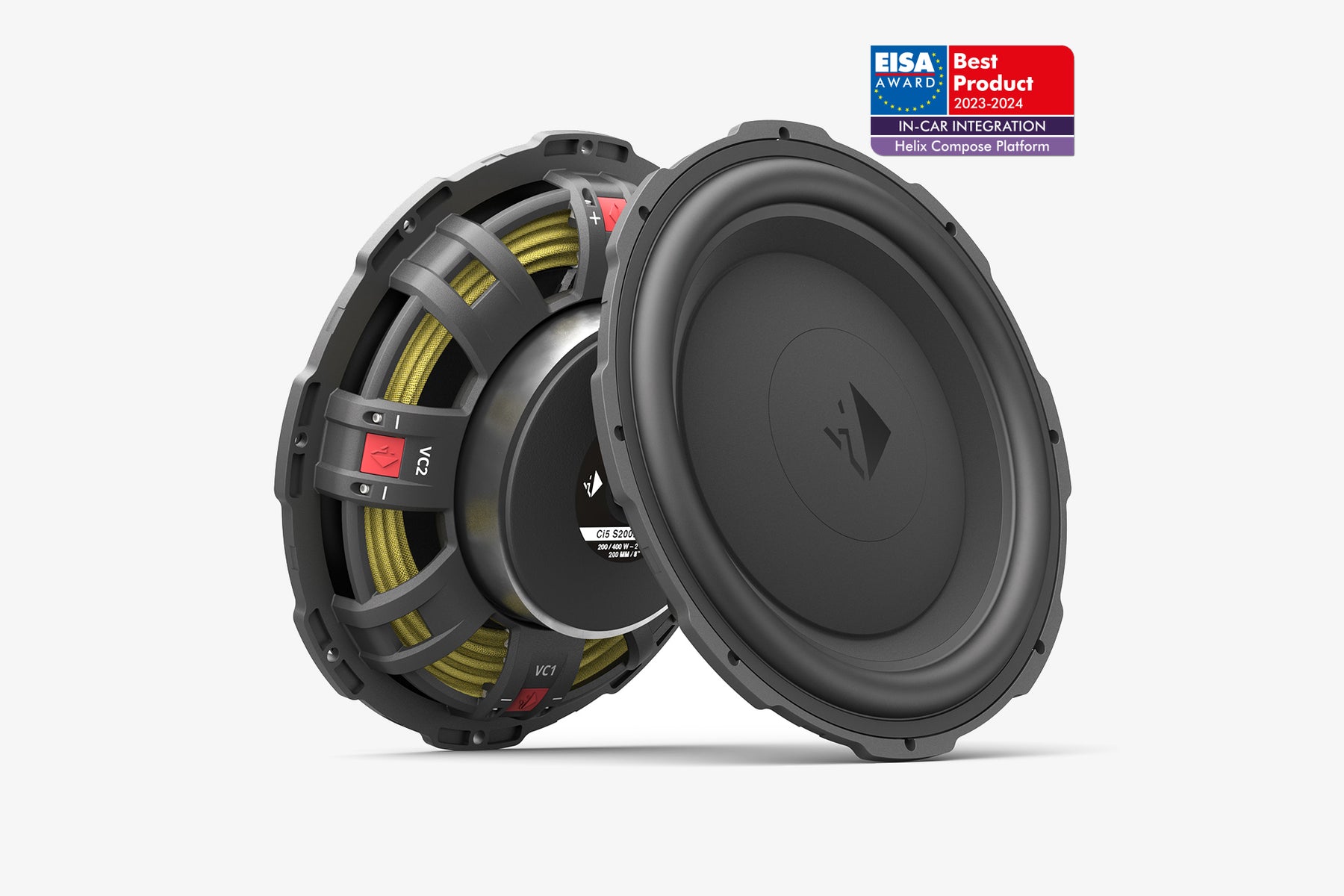

The Helix Compose Ci5 S200FM is a 200 mm hybrid woofer that blends the punch of a subwoofer with the precision of a mid-woofer, delivering deep, controlled bass even in tight spaces like BMW under-seats or Mercedes bulkheads. Available in D2 and S2 versions, it combines high excursion, smart FlexMount200 integration, and rugged design for powerful, vehicle-ready performance.
Born out of the increasingly demanding challenges of modern automobile technology and the HELIX-typical pursuit of intelligent solutions, we made the progressive redesign of proven universal speaker systems our mission. The result: our innovative HELIX COMPOSE platform that, according to the motto "developed inside the vehicle, for the vehicle", combines classic universal speakers with the advantages of vehicle-specific systems. Innovative materials and the latest technologies paired with smart, practical engineering – the best of both worlds in harmony: high efficiency, fantastic sound quality and enormous dynamics that fit in any vehicle. HELIX COMPOSE – universal speakers evolved.
The HELIX COMPOSE i5 series is the link between i7 and i3, created for sophisticated music lovers with a sparked ambition for a true hi-fi experience. A lovechild of phenomenal sound and unmatched practicality: Developed with the vision of unique speaker highlights that are also true problem solvers. All speaker impedances are perfectly matched for the combination with our HELIX and MATCH amplifiers, guaranteeing maximum performance at any time. In addition, we implemented our COMPOSE-exclusive mechanical technologies that offer unbeatable practical benefits.

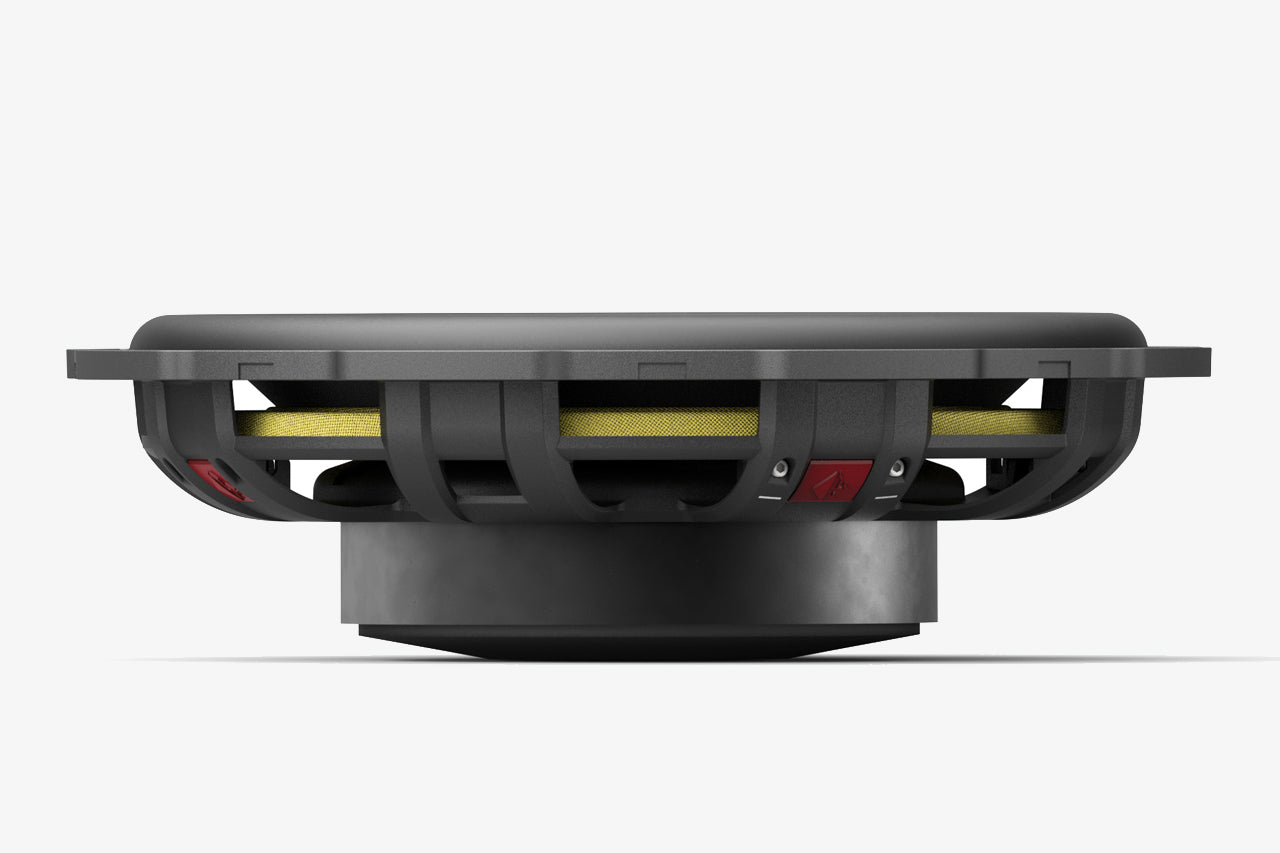

The Ci5 S200FM, as a 200 mm hybrid speaker, strikes the perfect balance between a mid-woofer driver and a subwoofer, impressing with its exceptionally high excursion, power handling and output volume. With its linear excursion of +/- 7.8 mm (D2: +/- 7.5 mm), it consistently delivers controlled and clear low-frequency reproduction, even at high sound pressure levels and low frequencies. The aim was to develop a speaker that works perfectly in BMW under-seat and Mercedes bulkhead applications without any compromises despite the extremely low installation depth of 47 mm. Thanks to the FlexMount200 technology, the Ci5 S200FM can be integrated comfortably and its design opens up completely new integration possibilities.
All HELIX COMPOSE i7, i5 and i3 speaker baskets are made of a high-tech polymer composite, which has been additionally reinforced with glass spheres. The result: maximum stability with minimal self-resonance, while also eliminating flux modulation of the magnetic system and maximum resistance to thermal influences. Last but not least, this allows for much more compact basket dimensions and thus simplified installations in cramped installation conditions.
The chassis are available as 1 x 2 Ohms (S2) or 2 x 2 Ohms (D2) version. Thus, these woofers always offers the right solution for every amplifier configuration to get the maximum performance out of it – whether mono, 2-channel or even multi-channel amplifier.
FlexMount is a mounting system based on specially developed adapter rings, allowing the installation of COMPOSE FlexMount speakers in an almost infinite number of vehicles. Thus, the universal loudspeaker effortlessly becomes a vehicle-specific loudspeaker, that can be easily installed in the original installation position of the vehicle in an acoustically optimized way with the matching FlexMount adapter ring.
Please note: ResoNix does not carry nor supply the FlexMount adapter rings.
