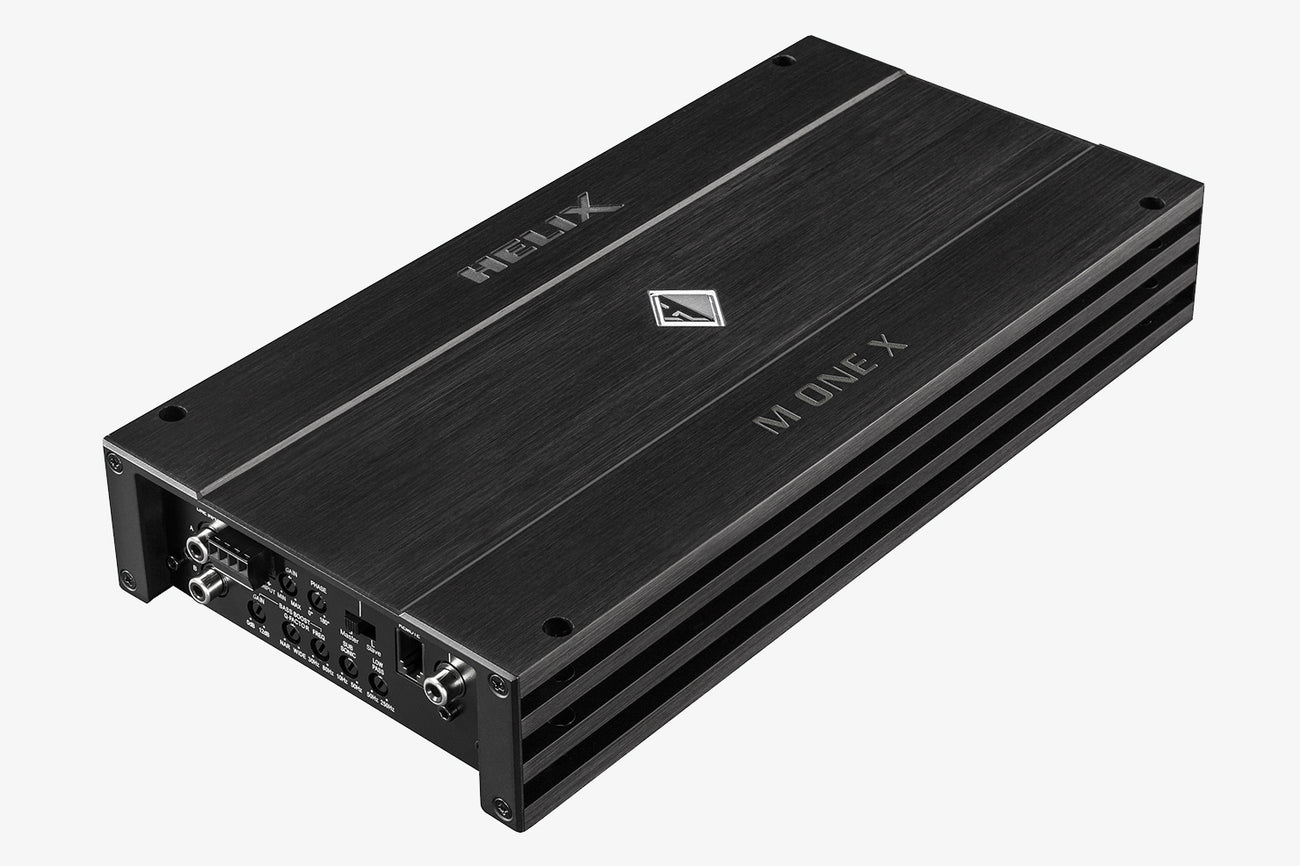

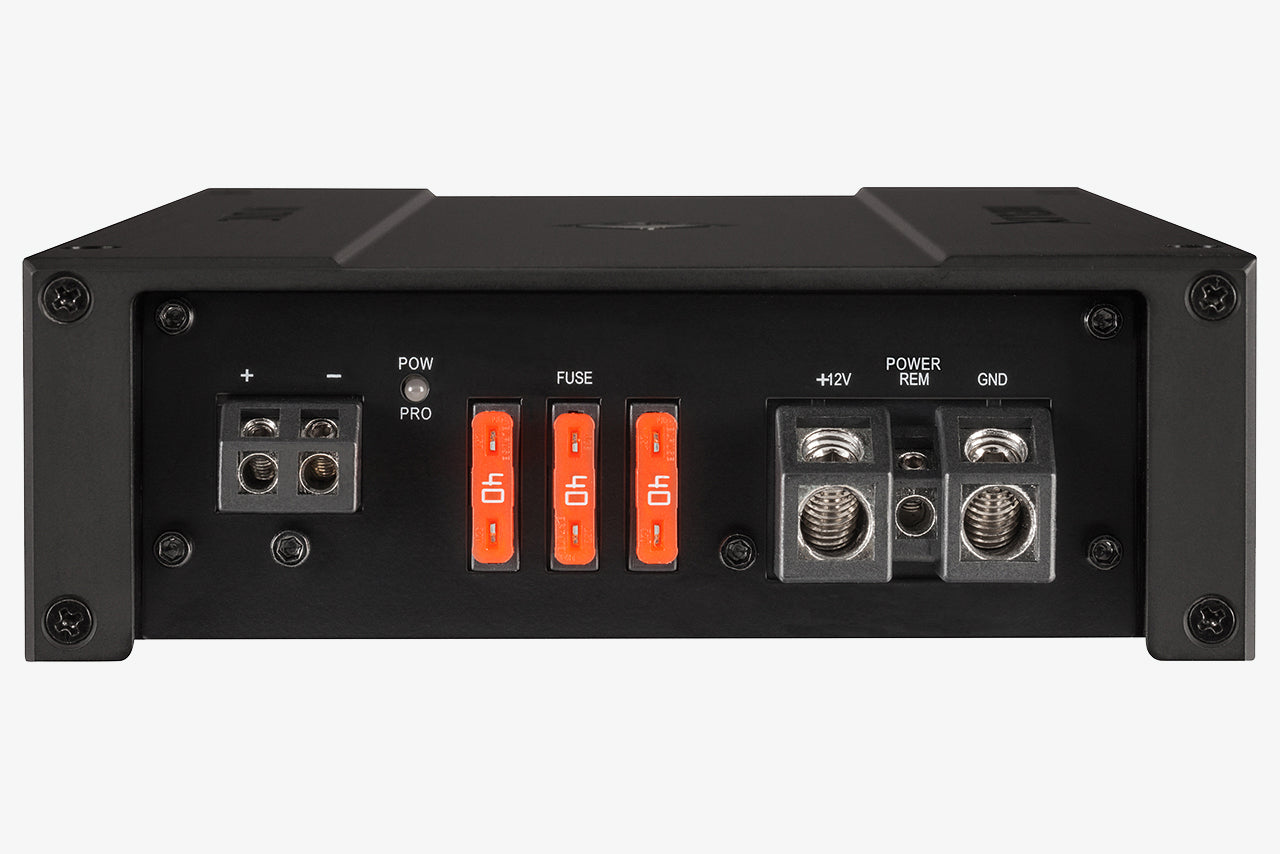

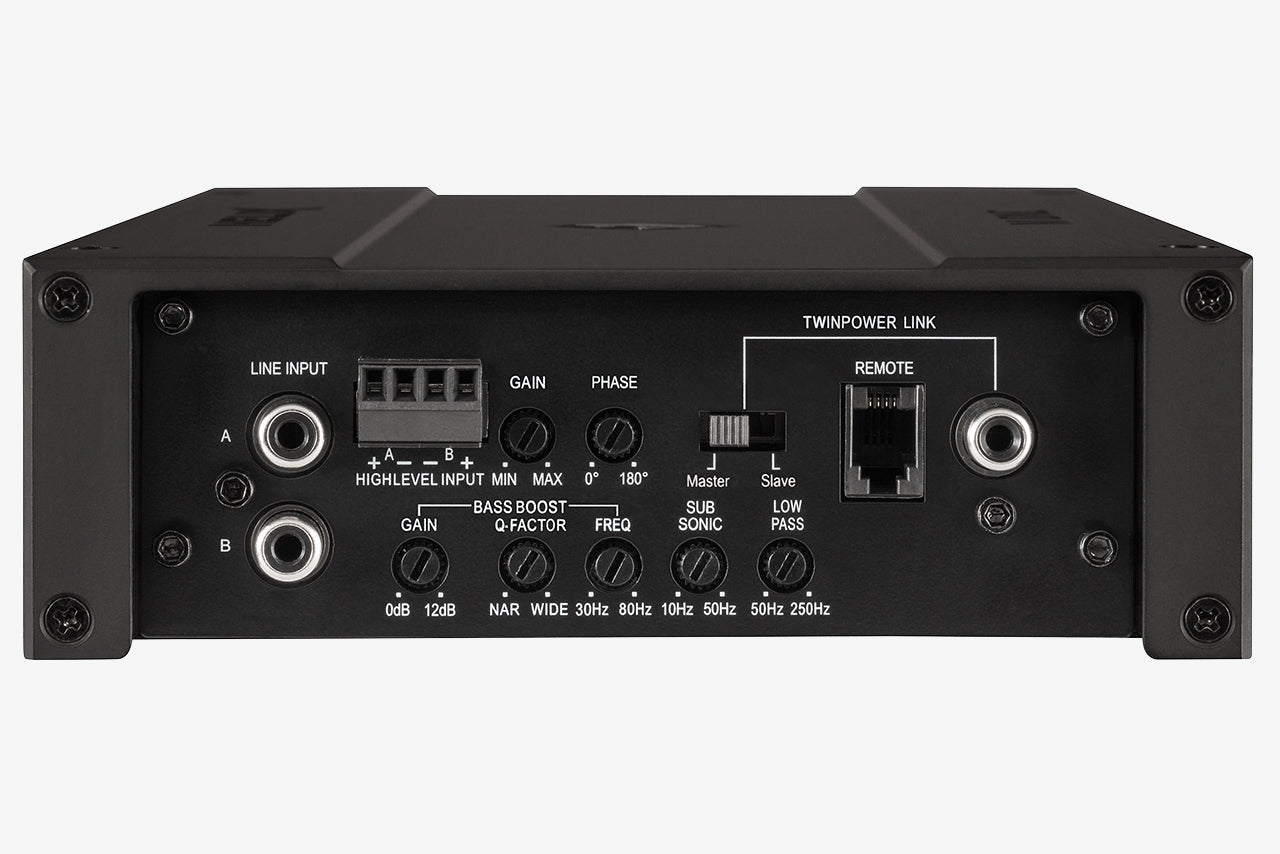

Helix M One X mono car subwoofer amplifier close up of the side panel of a Helix M One X mono car subwoofer amplifier showing its rca inputs and preamp options close up of the side panel of a Helix M One X mono amplifier showing its power and ground inputs, and speaker outputs

Helix M One X - Mono Amplifier

0 reviews

The Helix M One X is a compact mono amplifier that delivers powerful bass and clean sound quality. It's designed to fit seamlessly into any car audio system, offering big performance in a small package. Ideal for those looking to maximize sound without compromising space.

1030 watts x 1 @ 1-ohm

700 watts x 1 @ 2-ohm

400 watts x 1 @ 4-ohm

$600.00 $700.00

Please contact us before ordering

Discontinued. Please see our other amplifier offerings.

Small, efficient and uncompromisingly stable - the M ONE X is a highly compact monoblock for subwoofer applications. Designed from latest Class D technology this tiny amp can easily control speakers with 1 Ohm impedance. Its current capability makes the M ONE X a perfect partner for 2 x 2 Ohms subwoofers, where both voice coils are connected in parallel. And for even more output power, two M ONE X amplifiers can be combined to one single powerhouse – thanks to the TwinPower Link.

In addition a comprehensive and stunningly practical feature set leaves nothing to be desired. Last but not least installation will be a no-brainer due to the minimal dimensions.

Smart highlevel input

The latest generation of OE car radios incorporates sophisticated possibilities of diagnosing the connected speakers. If a common amplifier will be hooked up failure messages and loss of specific features (e.g. fader function) quite often appear - but not with the M ONE X.
The new ADEP circuit (Advanced Diagnostics Error Protection) avoids all these problems without loading the speaker outputs of the OE radio during high volumes unnecessarily.

Start-Stop capability

The switched power supply of the HELIX M ONE X assures operation even if the battery’s voltage drops down to 6 Volts during engine crank.

  • Small footprint Class D amplifier with up to 1,180
  • Watts RMS output power @ 1 Ohm for easiest combination with all 2 x 2 Ohms subwoofers connected in parallel
  • Start-Stop capability down to 6V supply voltage
  • Smart highlevel input with ADEP circuit and Auto Turn-On function
  • Integrated, active crossover with lowpass, bass boost, subsonic and phase control
  • TwinPower Link for connecting two amplifiers in bridged mode
  • Bass remote control for volume adjustment
  • Low heat dissipation thanks to extraordinary efficiency

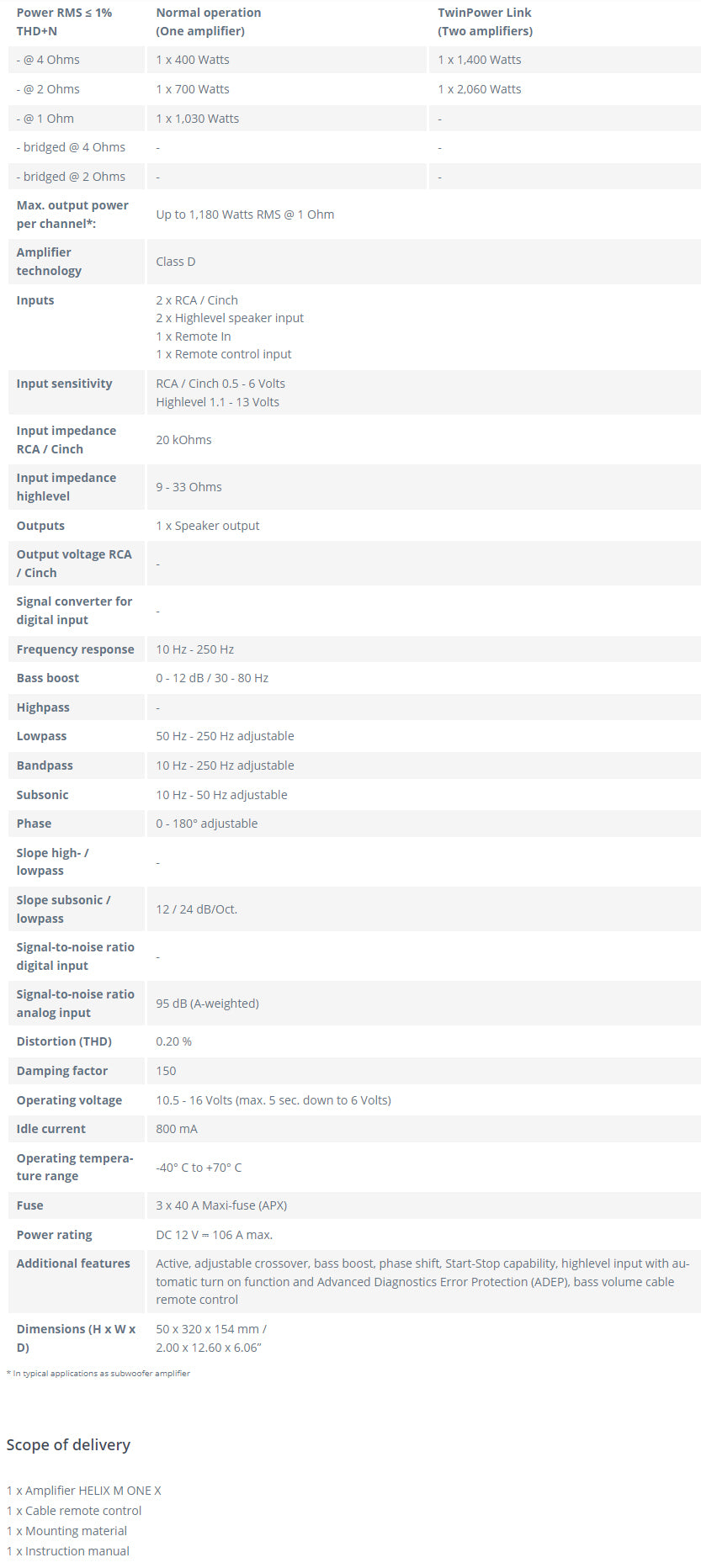

Audiotec Fischer Helix M One X Specification Sheet

Small, efficient and uncompromisingly stable - the M ONE X is a highly compact monoblock for subwoofer applications. Designed from latest Class D technology this tiny amp can easily control speakers with 1 Ohm impedance. Its current capability makes the M ONE X a perfect partner for 2 x 2 Ohms subwoofers, where both voice coils are connected in parallel. And for even more output power, two M ONE X amplifiers can be combined to one single powerhouse – thanks to the TwinPower Link.

In addition a comprehensive and stunningly practical feature set leaves nothing to be desired. Last but not least installation will be a no-brainer due to the minimal dimensions.

Smart highlevel input

The latest generation of OE car radios incorporates sophisticated possibilities of diagnosing the connected speakers. If a common amplifier will be hooked up failure messages and loss of specific features (e.g. fader function) quite often appear - but not with the M ONE X.
The new ADEP circuit (Advanced Diagnostics Error Protection) avoids all these problems without loading the speaker outputs of the OE radio during high volumes unnecessarily.

Start-Stop capability

The switched power supply of the HELIX M ONE X assures operation even if the battery’s voltage drops down to 6 Volts during engine crank.

  • Small footprint Class D amplifier with up to 1,180
  • Watts RMS output power @ 1 Ohm for easiest combination with all 2 x 2 Ohms subwoofers connected in parallel
  • Start-Stop capability down to 6V supply voltage
  • Smart highlevel input with ADEP circuit and Auto Turn-On function
  • Integrated, active crossover with lowpass, bass boost, subsonic and phase control
  • TwinPower Link for connecting two amplifiers in bridged mode
  • Bass remote control for volume adjustment
  • Low heat dissipation thanks to extraordinary efficiency
Audiotec Fischer Helix M One X Specification Sheet
