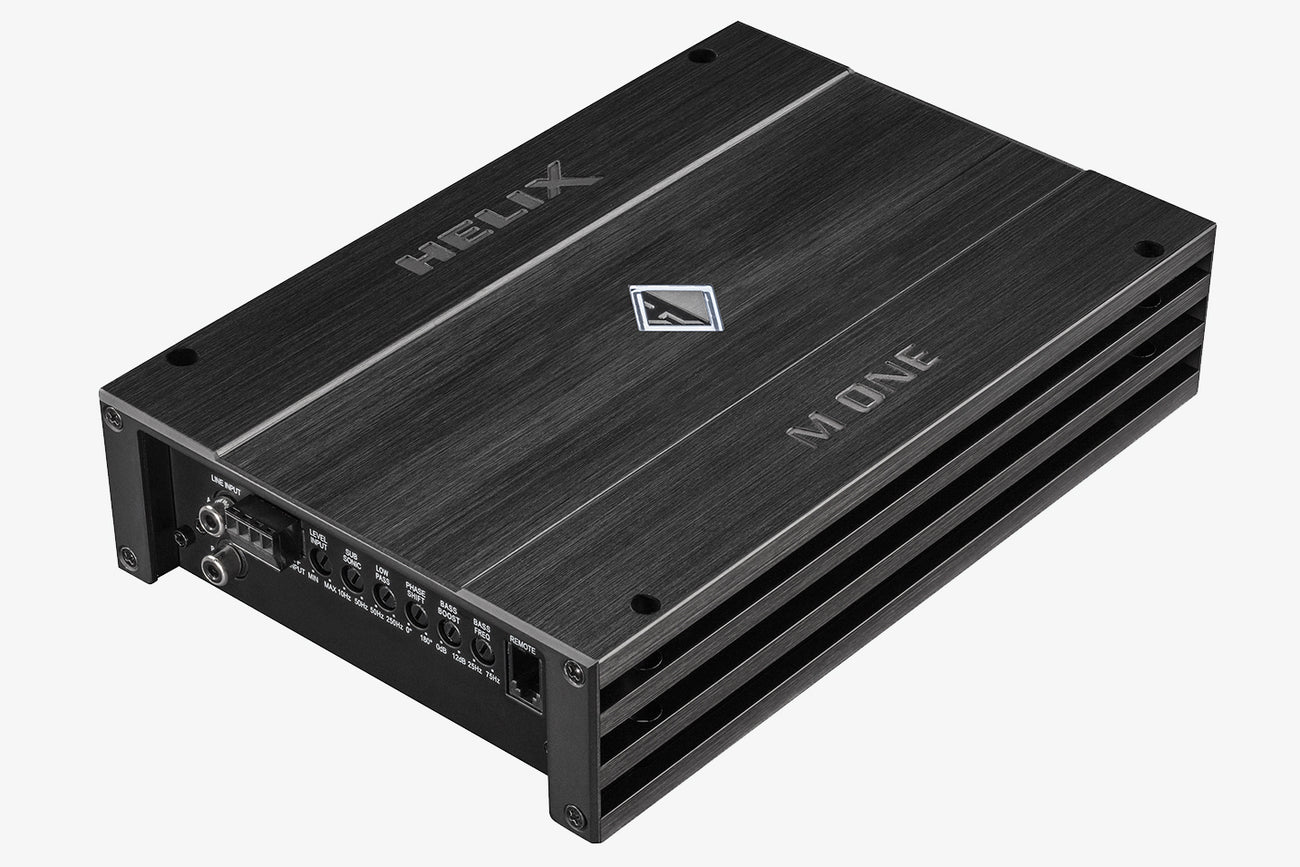

Helix M One - Mono Amplifier
0 reviews
The Helix M One is a compact mono amplifier that delivers powerful bass and clean sound quality. It’s designed to fit seamlessly into any car audio system, offering big performance in a small package. Ideal for those looking to maximize sound without compromising space. This unit is sold as open boxed goods.
600 watts x 1 @ 1-ohm
410 watts x 1 @ 2-ohm
240 watts x 1 @ 4-ohm
$500.00 $550.00
Affordable Power in a Compact Design
Small, efficient and uncompromisingly stable – the M ONE is a highly compact monoblock for subwoofer applications. Designed from latest Class D technology this tiny amp can easily control speakers with 1 Ohm impedance. Its current capability makes the M ONE a perfect partner for 2 x 2 Ohms subwoofers, where both voice coils are connected in parallel.
In addition a comprehensive and stunningly practical feature set leaves nothing to be desired. Last but not least installation will be a no-brainer due to the minimal dimensions.
Smart highlevel input
The latest generation of OE car radios incorporates sophisticated possibilities of diagnosing the connected speakers. If a common amplifier will be hooked up failure messages and loss of specific features (e.g. fader function) quite often appear – but not with the M ONE.
The new ADEP circuit (Advanced Diagnostics Error Protection) avoids all these problems without loading the speaker outputs of the OE radio during high volumes unnecessarily.
Start-Stop capability
The switched power supply of the HELIX M ONE assures operation even if the battery’s voltage drops down to 6 Volts during engine crank.
- Small footprint Class D amplifier with high output
power of 600 Watts RMS @ 1 Ohm for easiest combination with all 2 x 2 Ohms subwoofers connected in parallel - Start-Stop capability down to 6V supply voltage
- Smart highlevel input with ADEP circuit (Advanced Diagnostics Error Protection) and Auto Turn-On function
- Integrated, active crossover with lowpass, bass boost, subsonic and phase control
- Extremely stable output stage with high-current power transistors and 1 Ohm stability
- Bass remote control for volume adjustment
- SMD (Surface Mounted Device) manufacturing technology combines minimum space requirementwith maximum reliability
- Exclusive, extremely compact and clean design with illuminated HELIX-logo and low heat dissipation thanks to extraordinary efficiency
Affordable Power in a Compact Design
Small, efficient and uncompromisingly stable – the M ONE is a highly compact monoblock for subwoofer applications. Designed from latest Class D technology this tiny amp can easily control speakers with 1 Ohm impedance. Its current capability makes the M ONE a perfect partner for 2 x 2 Ohms subwoofers, where both voice coils are connected in parallel.
In addition a comprehensive and stunningly practical feature set leaves nothing to be desired. Last but not least installation will be a no-brainer due to the minimal dimensions.
Smart highlevel input
The latest generation of OE car radios incorporates sophisticated possibilities of diagnosing the connected speakers. If a common amplifier will be hooked up failure messages and loss of specific features (e.g. fader function) quite often appear – but not with the M ONE.
The new ADEP circuit (Advanced Diagnostics Error Protection) avoids all these problems without loading the speaker outputs of the OE radio during high volumes unnecessarily.
Start-Stop capability
The switched power supply of the HELIX M ONE assures operation even if the battery’s voltage drops down to 6 Volts during engine crank.
- Small footprint Class D amplifier with high output
power of 600 Watts RMS @ 1 Ohm for easiest combination with all 2 x 2 Ohms subwoofers connected in parallel - Start-Stop capability down to 6V supply voltage
- Smart highlevel input with ADEP circuit (Advanced Diagnostics Error Protection) and Auto Turn-On function
- Integrated, active crossover with lowpass, bass boost, subsonic and phase control
- Extremely stable output stage with high-current power transistors and 1 Ohm stability
- Bass remote control for volume adjustment
- SMD (Surface Mounted Device) manufacturing technology combines minimum space requirementwith maximum reliability
- Exclusive, extremely compact and clean design with illuminated HELIX-logo and low heat dissipation thanks to extraordinary efficiency
