Wavtech thinPRO12

Overall summary

In our testing of this specific sample, the Wavtech ThinPro 12 performed in line with what we typically see from shallow-mount subwoofers that prioritize compact installation depth. Within the 20 to 120 Hz range, distortion behavior was moderate and increased notably with level. At low drive levels, we observed a stable H2 feature around 30 Hz that did not scale with excursion, and at higher levels, H2 became the dominant distortion component while H3 remained secondary. There were no apparent signs of in-band breakup, but the overall distortion shape shifted with input, which suggests limited clean headroom in this particular unit.

The Klippel LSI data for this sample supports those findings but also shows some flaws. We measured the 70 percent BL threshold at just under 9 mm one-way xmax, and the 50 percent CMS limit at roughly 10.5 mm xmax. Inductance was relatively high at rest and showed variation with both position and current, which may contribute to the distortion behavior observed. The high-level sweep limit occurred at 11 volts in free air, corresponding to approximately 45 watts into a nominal 2 ohm load. As always, power limits in free-air testing are lower than in-box performance and should not be taken as direct indicators of thermal or rated limits.

Based on our measurements, a 0.707 Qtc sealed alignment would require about 1.55 cubic feet, while the manufacturer’s 0.6 cubic foot recommendation results in an estimated Qtc of about 0.94. That alignment provides a small bump in low-end response but rolls off earlier, depending on system tuning and cabin gain. This subwoofer would not typically be considered for infinite baffle use and seems best suited for applications where installation depth is the main constraint.

In summary, this sample of the ThinPro 12 appears to be aimed for tight-space installations where moderate output is acceptable and low frequency extension or distortion performance aren’t as much of a concern. For setups that prioritize lower distortion or greater headroom, other designs may offer significant advantages. As with any subwoofer, performance will vary with enclosure, tuning, and installation context, and our findings apply only to this specific test unit and its measured conditions.

Manufacturer's suggested use case

Wavtech positions the thinPRO12 as a true space-saver that is meant to behave like a full-depth sub. The headline claims are a 3 inch mounting depth, a split-gap (XBL2) motor design, 750 W RMS rating, and an unusually high 20 mm one-way linear xmax, with “over 2 inches” peak-to-peak travel. Intended use is small boxes that actually fit tight installs, with sealed from 0.4 to 1.0 ft³, optimal 0.6 ft³, and ported from 0.8 to 1.5 ft³, optimal 1.0 ft³. The pitch is simple, fits where others will not and still delivers big-sub output.

Our suggested use case

In this sample and under these test conditions, the thinPRO12 reads as another run-of-the-mill shallow-fit solution for tight spaces that works best when output and distortion performance demands are modest. Usable excursion falls very short of their 20 mm claim, we observed 8.85 mm one way at the 70 percent BL criterion, and inductance behavior becoming a practical constraint at around 5 mm. Inductance is high for a modern 12 inch subwoofer and varies with both position and current, which hurts upper-band cleanliness as level rises and makes this a tough sell even for high-passed front-sub use where stroke limits matter less.

Box size expectations should also be adjusted from what they recommend. A classic 0.707 sealed alignment computes to about 1.55 ft³ before displacement for this sample, while the advertised 0.6 ft³ sealed box yields roughly 0.94 Qtc and a noticeably peaky response and severe low-end roll off that would be very difficult to flatten with power and EQ. This driver is not an IB candidate and is not a single-sub high-output choice. It is a packaging play first, and with much more realistically adjusted installation requirements and output/distortion performance, it can serve as a basic shallow subwoofer. While it does have the mechanical capability of more output (xmech), but you would be pushing far into extreme levels of distortion.

Testing and linearity limits vs. what is advertised

What it took to reach our high-level sweep limit, and how that compares to the published specs.

High-level sweep rule: Set just under the BL 70 percent point from LSI

High-level sweep limit for this sample: 11 volts

Approximate electrical power at that limit at 20Hz: ~45 watts if treated as a 2 ohm resistive load, real power varies with frequency and impedance volts

Rated power (published): 750 W RMS

Power used to hit the standardized limits in free air, relative to their xmax rating free air: Approximately 16 percent. 5.2mm of excursion was hit with the 45 watts in free air for the high level distortion testing.

Claimed Xmax vs. measured at BL 70%: 8.85 mm measured vs 20mm manufacturer claim, only about 44 percent of claim

Xmax @ 50% CMS: 10.5 mm one way. ~50 percent of claimed 20mm xmax

Xmax @ 17% Le: 5.02 mm due to 17% Le(x) and Le(i) variation

Manufacturer suggested sealed enclosure size (and its resulting QTC): 0.6 ft³ which achieves a 0.940 QTC

Required sealed enclosure for 0.707 QTC: 1.55 ft³

Xmax @ 50% CMS: 10.5 mm one way. ~50 percent of claimed 20mm xmax

Overall performance snapshot

This is our subjective interpretation of the objective data. How we derive these scores can be found on the home page of the testing section.

Distortion & frequency response - TRF measurements

Method recap: Method recap: Nearfield microphone positioned at 1/10th the cone diameter plus two inches from the center, pointed at the cone. TRF sweeps at 1 volt and at a high level set just under the BL 70 percent point from LSI, which was 11 volts for this sample, which achieved 7mm of excursion at 20hz for this test. Plots shown in relative percent with 1/6-octave smoothing.

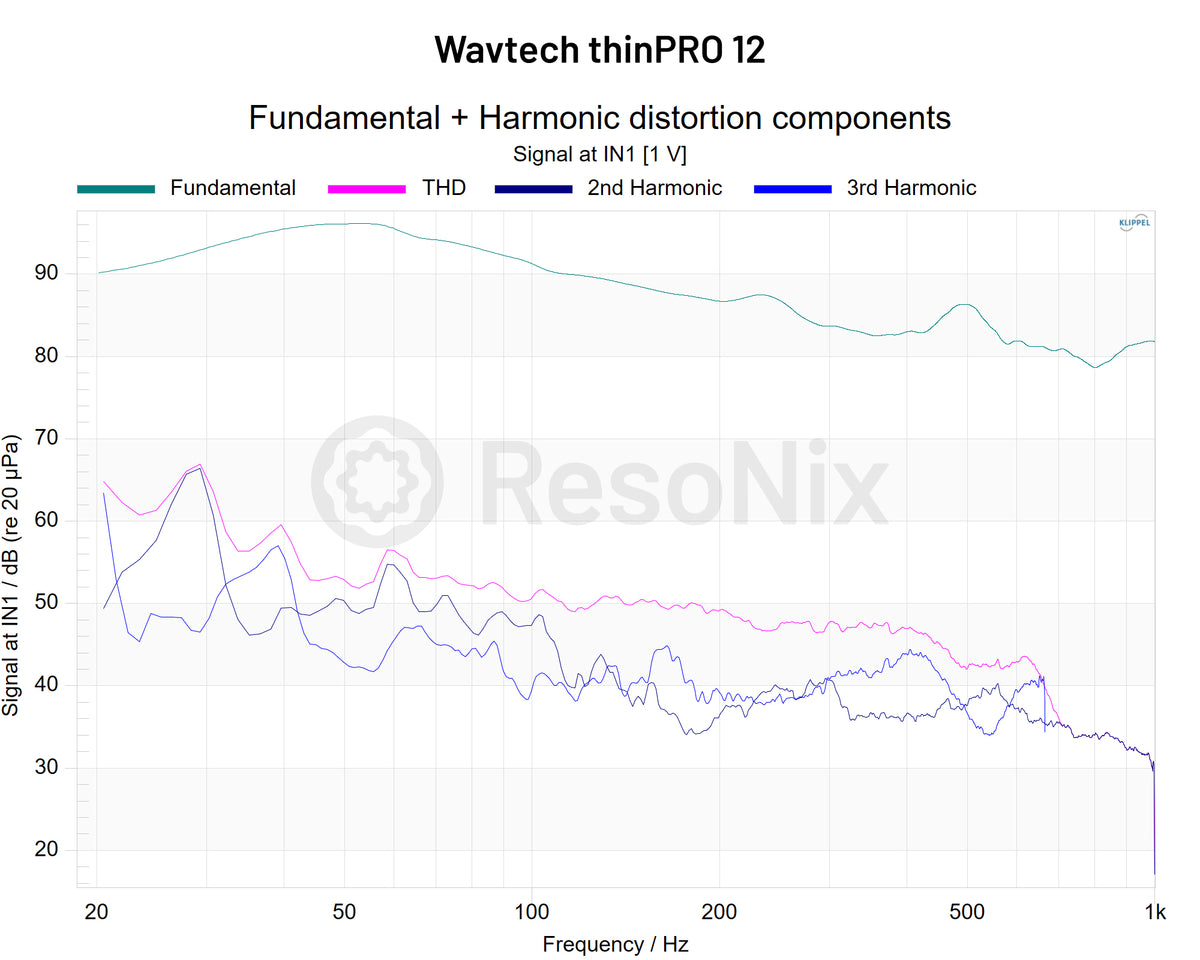

At 1 volt - baseline

Baseline behavior is not especially clean. There is a distinct, narrow H2 spike centered near 30 Hz that does not track upward when level is increased. This was shown across the 3 measurements to verify consistency. The rest of the band shows elevated even-order content in the lower bass and visible H3 through parts of the passband, consistent with the higher and more variable inductance we see elsewhere. The isolated H2 feature at ~30 Hz appears to be a low-level artifact rather than a level-scaled motor non-linearity, and in practical use it is unlikely to dominate once drive increases, but it may indicate flex of the cone, mechanical noise, or other artifacts.

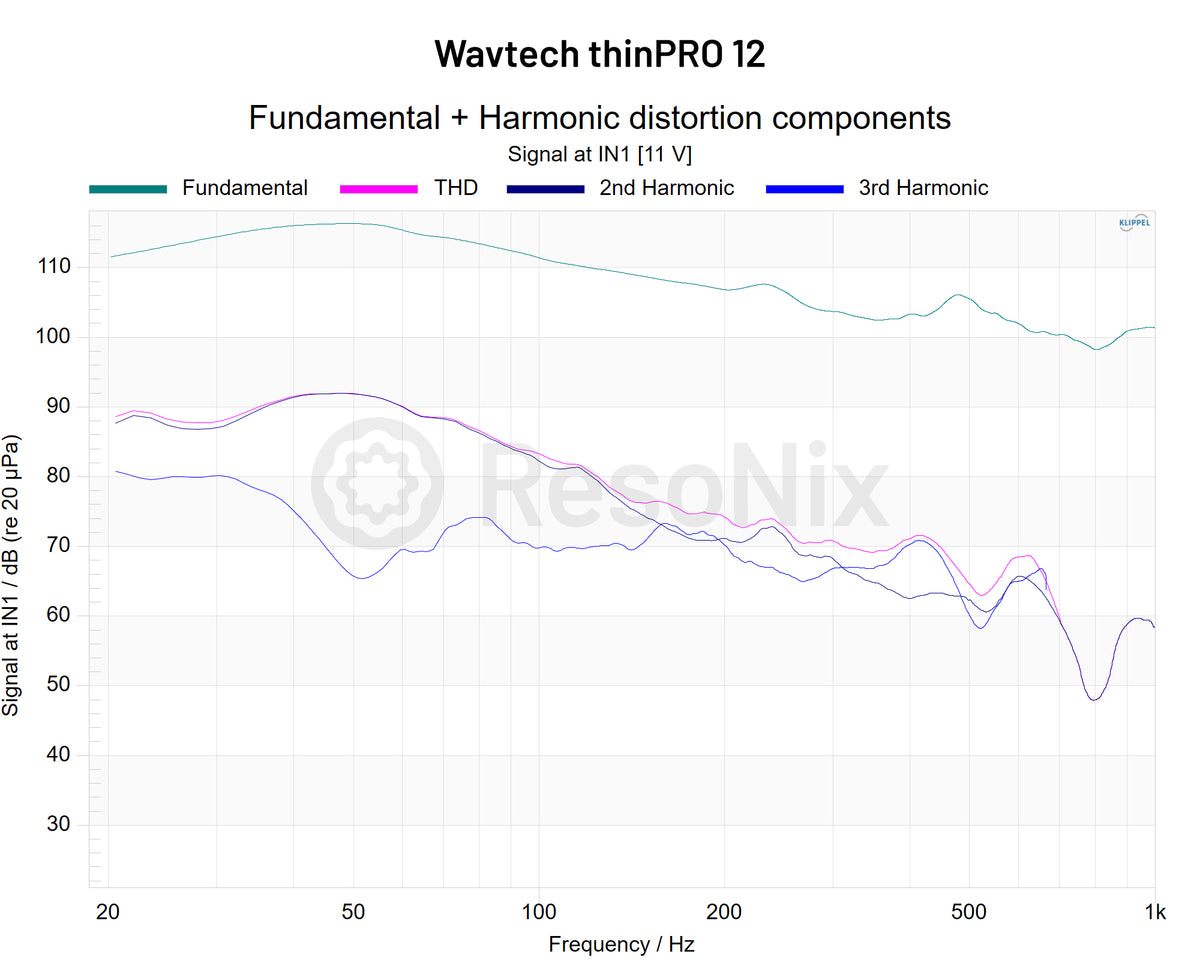

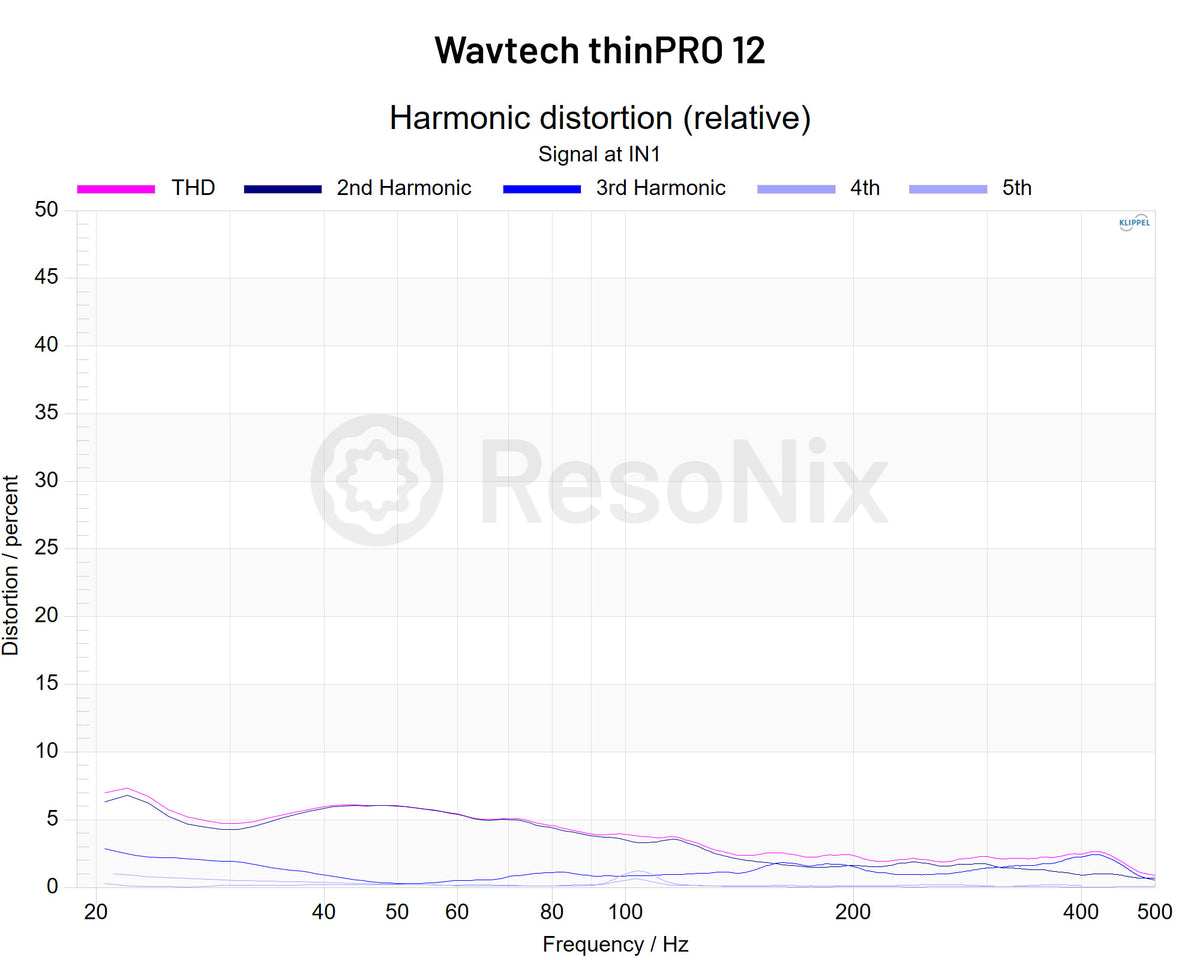

At high level voltage (11 volts)

With the high-level sweep set by the BL 70 percent rule giving us an excursion amount of 7mm at 20hz, the second harmonic becomes the dominant component across most of the passband. H2 rises broadly rather than as a single sharp peak, while H3 increases more modestly and remains secondary. No discrete in-band breakup is evident, but overall distortion shape shifts with level, which aligns with limited motor linearity and position- and current-dependent inductance. Overall, its not the worst, but its definitely not ideal considering how little power and xmax this unit actually has.

Delta - 1 volt distortion vs. high level distortion

Compared to 1 volt, even-order content grows sooner and stronger across the band, while the isolated ~30 Hz H2 spike does not escalate and therefore reads as a low-drive artifact, either an artifact of something not measurable via LSI, or a small mechanical noise that is proportionally larger at very low fundamentals. The rise in H2 at higher drive is consistent with increasing asymmetry and the tightening BL window, with Le(x,i) variation contributing to the non-linearity as stroke and current rise.

What this means in practice

In this sample and under these test conditions, performance is decent if you keep the driver inside its real limits, which are much lower than advertised. Plan your target curve and gains so normal listening stays within roughly 5 to 6 mm one way where inductance behavior is not yet the dominant constraint, and avoid asking for both high current and large stroke at the same time. Once you push past about 7 mm and toward the BL 70 percent point near 8.85 mm, even-order content rises and the distortion shape shifts, and the commonly used 50 percent CMS point near 10.5 mm offers little additional clean headroom.

In short, keep it very conservative, aim for a larger sealed box near a 0.707 alignment to reduce stroke for a given output, and do not rely on EQ to create low-bass headroom that the BL, CMS, and Le behavior do not support.

Motor & suspension linearity - LSI measurements

Method recap: Klippel LSI large-signal identification for this unit, cold and used for enclosure computations. Standard thresholds in this project are BL 70 percent, CMS 50 percent, and a 17 percent inductance variance criterion. Commentary below ties the large-signal behavior to the acoustic results.

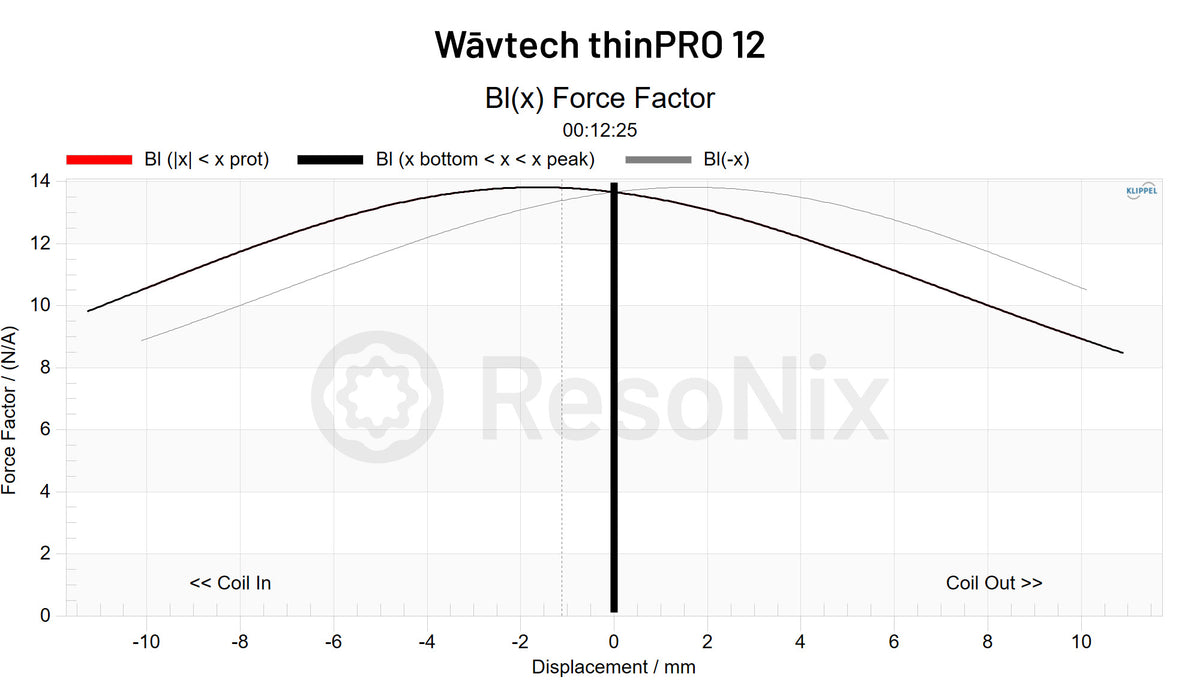

Bl(x)

Bl(x) shows how much motor force a speaker produces as the voice coil moves, B is magnetic field strength and L is the wire length in that field. A high, wide, symmetrical BL curve means linear control and low distortion, a steep or uneven drop means earlier output limits and rising distortion, which is why BL(x) is often the most telling single Klippel LSI indicator of real performance.

Bl(x) window and shape

The usable BL window reaches the 70 percent criterion at about ±8.85 mm. For a driver marketed at 20 mm one way, that is a narrow working window, and the plateau is not flat. XBL2 is a split-gap topology that, when executed well, maintains a broad, flat force plateau similar to a good underhung design. In this sample and under these conditions, the BL curve measures as a sharp peak rather than flat, with roll-off from center beginning much earlier than you would want for a low-distortion sub. It reads more like a narrow peak that tightens quickly than a broad, level shelf. This symmetrical non-linearity is a cause of odd-order harmonic distortion.

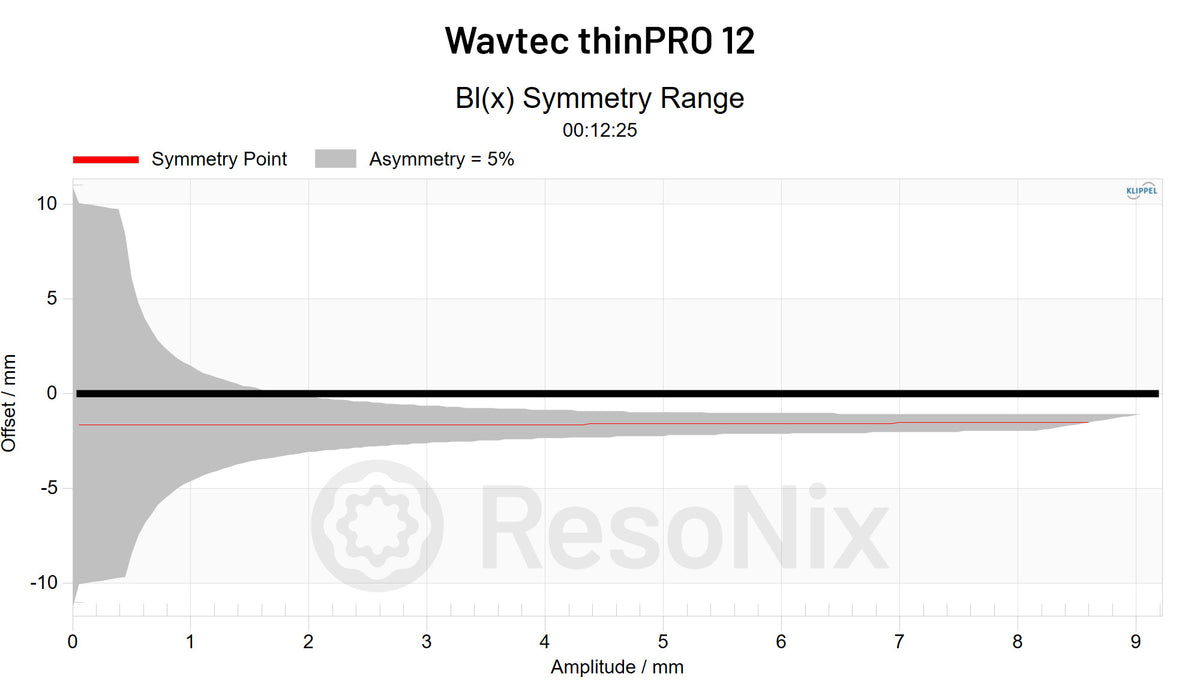

Bl(x) symmetry

Only fair. There is a modest bias in the symmetry range, with earlier BL collapse on one side of stroke than the other. That imbalance aligns with the even-order growth seen on the high-level TRF sweep, where H2 becomes dominant as excursion increases. A small coil rest-position offset would likely center the BL window and reduce even-order growth. Note that such an offset may improve symmetry but will not widen or flatten the plateau, which would require changes to the gap and coil geometry.

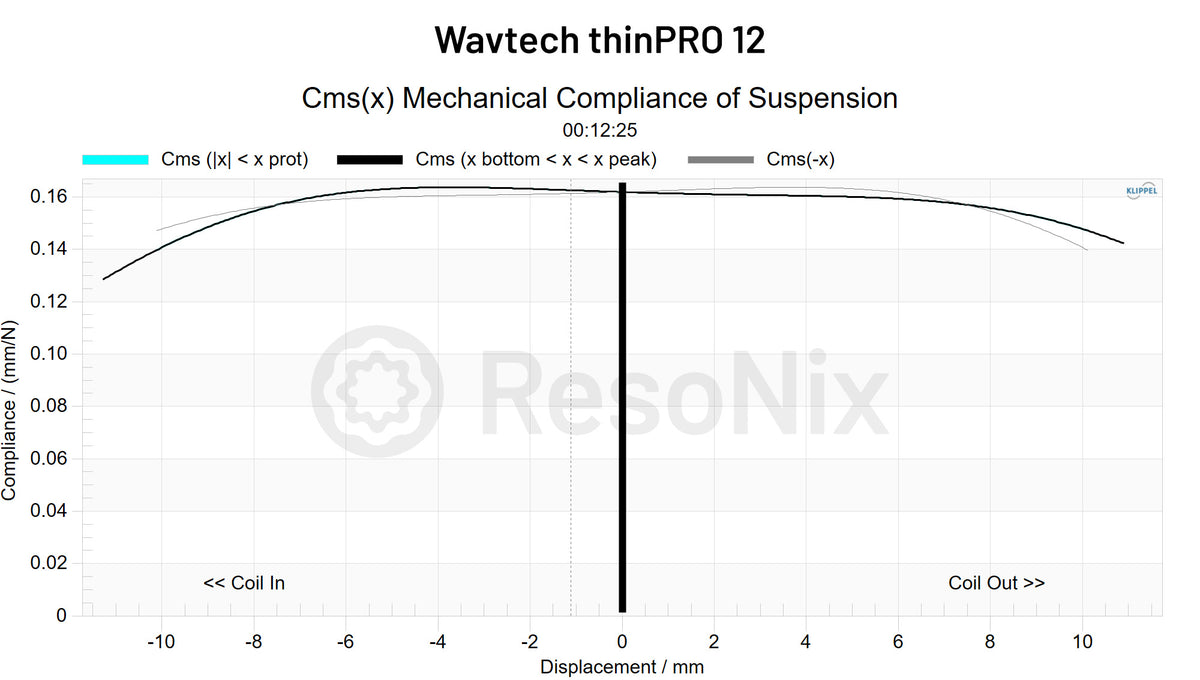

Cms(x)

Cms(x) is suspension compliance versus displacement, the inverse of stiffness. When the curve is broad and symmetrical, motion is linear and distortion stays low. Early roll off or offset indicates progressive stiffening or mis-centering, which adds mechanical distortion and caps clean excursion.

Cms(x) window and shape

Compliance is soft around center and turns progressively stiffer with stroke. The commonly used 50 percent CMS criterion occurs at about 10.5 mm one way, a hair outside the BL 70 percent point, so suspension is not the first limiter in this sample. Relative to the published 20 mm one-way figure, that KMS criterion corresponds to roughly half the advertised stroke. Inside roughly ±6 mm the slope is moderate, then it steepens sooner than ideal, which reduces margin before distortion growth and does not provide a broad, gentle operating region.

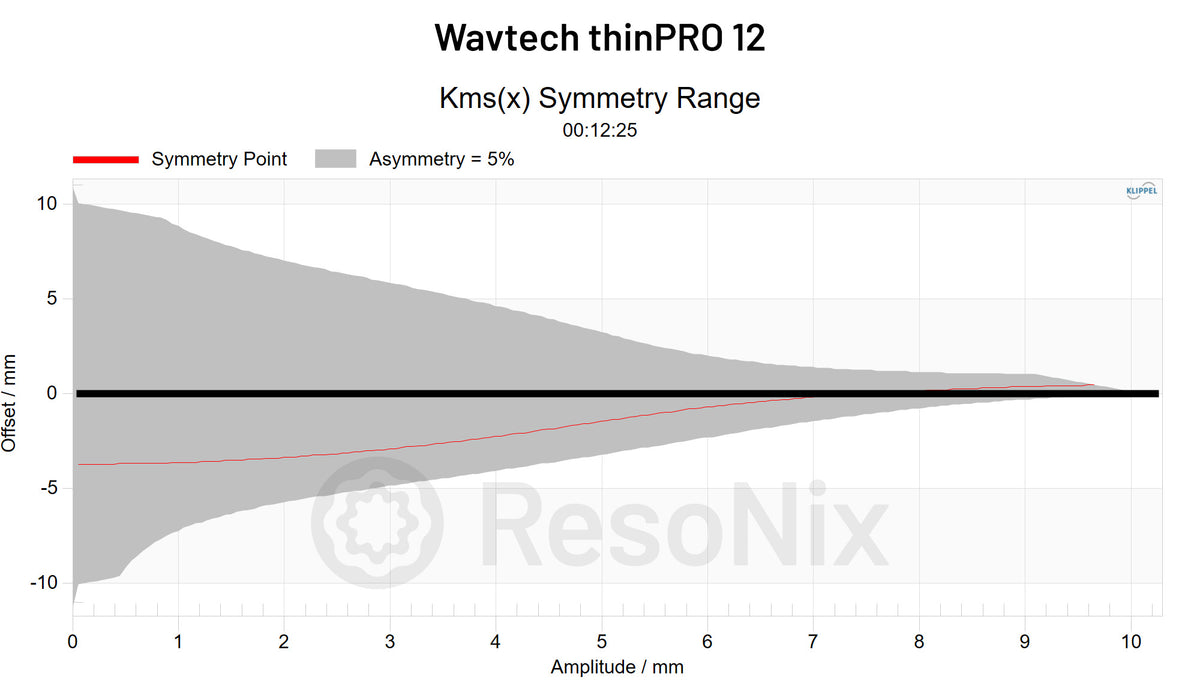

Cms(x) symmetry

Within the measured ±8.85 mm window, symmetry is acceptable. Beyond that, LSI only resolves the suspension curve to about 87 percent, so we treat the far-end trend cautiously. The trajectory leading into that region shows stiffness increasing earlier on one side of stroke than the other, indicating a modest bias. That imbalance tracks with the even-order rise seen on the high-level TRF sweep where H2 dominates as excursion increases. A small rest-position adjustment of the coil or spider pack could improve KMS centering and reduce even-order growth, though it would not change how quickly stiffness ramps outside mid-stroke.

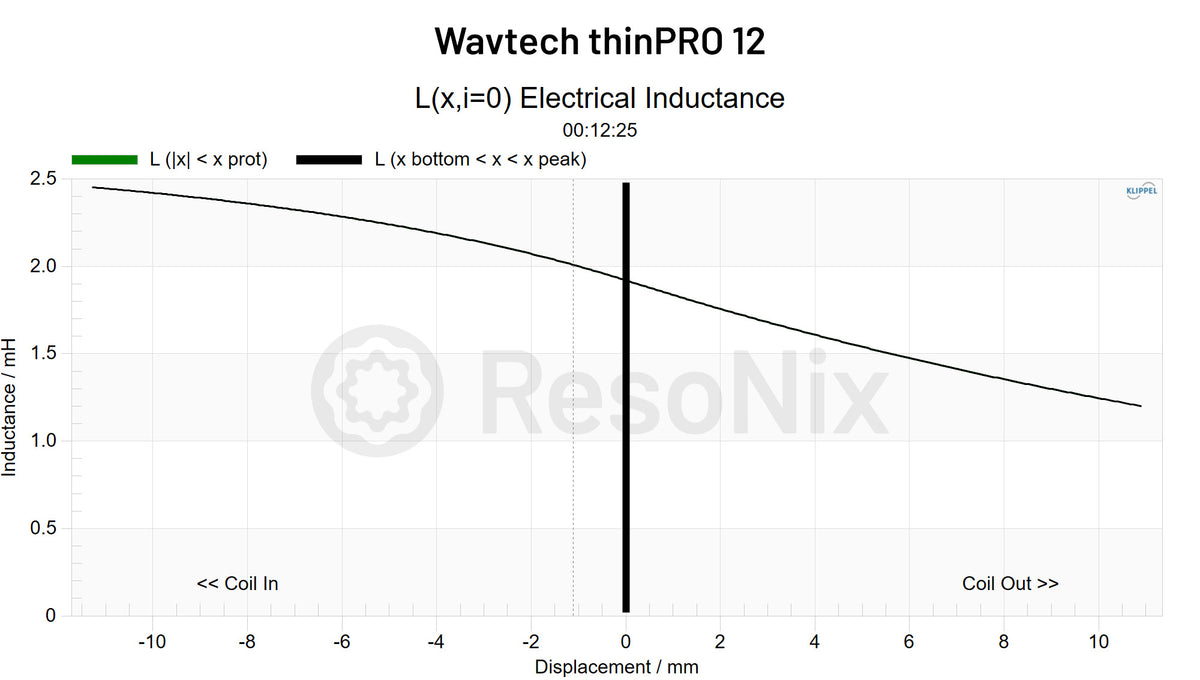

Inductance - Le(x) and Le(i)

Le(x) and Le(i) measure how a subwoofer’s voice coil inductance changes with position and current. These curves show how stable the motor’s magnetic field is under real movement and drive conditions. When inductance varies heavily, it causes distortion, uneven response, and a loss of upper-band clarity, which is why Le(x) and Le(i) are critical for evaluating how clean and consistent a motor’s behavior really is.

Level and shape

In this sample and under these conditions, inductance at rest is high, Le(x=0) ≈ 1.92 mH, and it varies strongly with position. By +5 mm it drops to about 1.54 mH, roughly 20 percent lower than center, and by −5 mm it rises to about 2.24 mH, roughly 17 percent higher. At the BL 70 percent limits near ±8.85 mm, Le ranges from about 1.30 mH to 2.39 mH, a spread of roughly 56 percent across the stroke window. The asymmetry, lower on one side and higher on the other, aligns with the even-order rise seen in the high-level TRF sweep where H2 dominates at increased excursion.

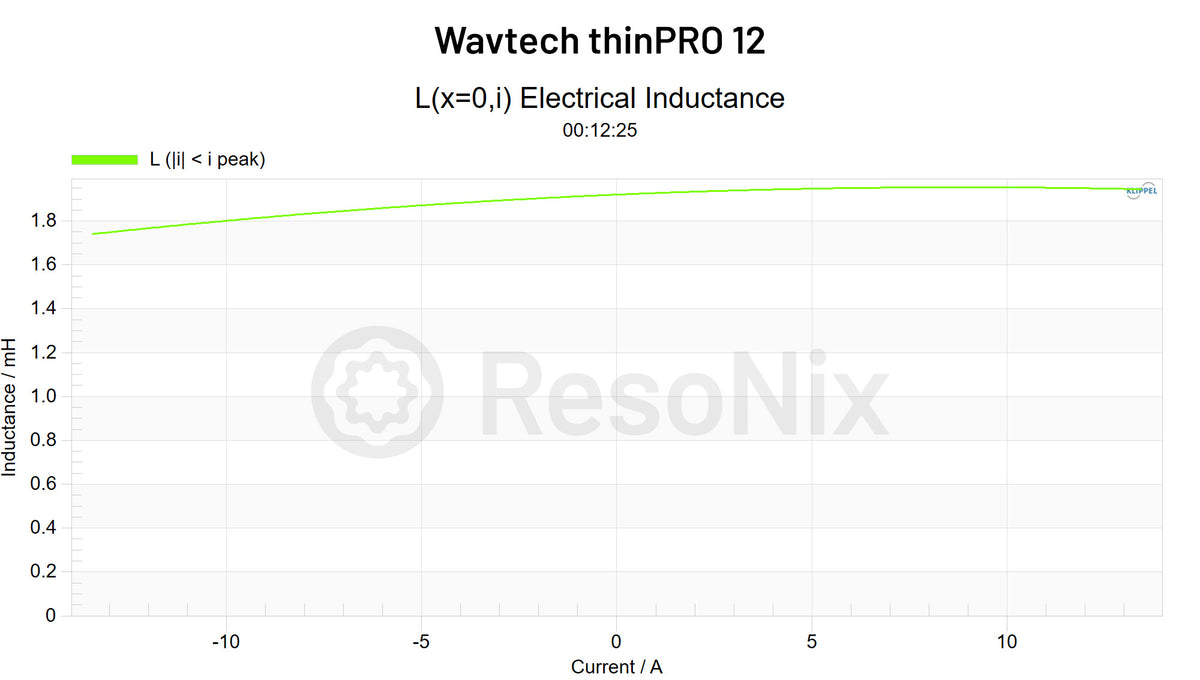

Current dependence

As drive current increases and decreases, the inductance does not stay fixed. It climbs a hair at positive levels, but falls off at negative levels. In practice, that level dependence slightly reshapes the response and pushes distortion up as you turn it louder, which is part of why inductance became a practical limit around ~5 mm.
Tie-back: The combination of a high Le at rest, large position dependence, and measurable current dependence explains the reduced upper-band cleanliness with level and why inductance behavior became a practical constraint around ~5 mm, as noted earlier in the advisory and TRF sections.

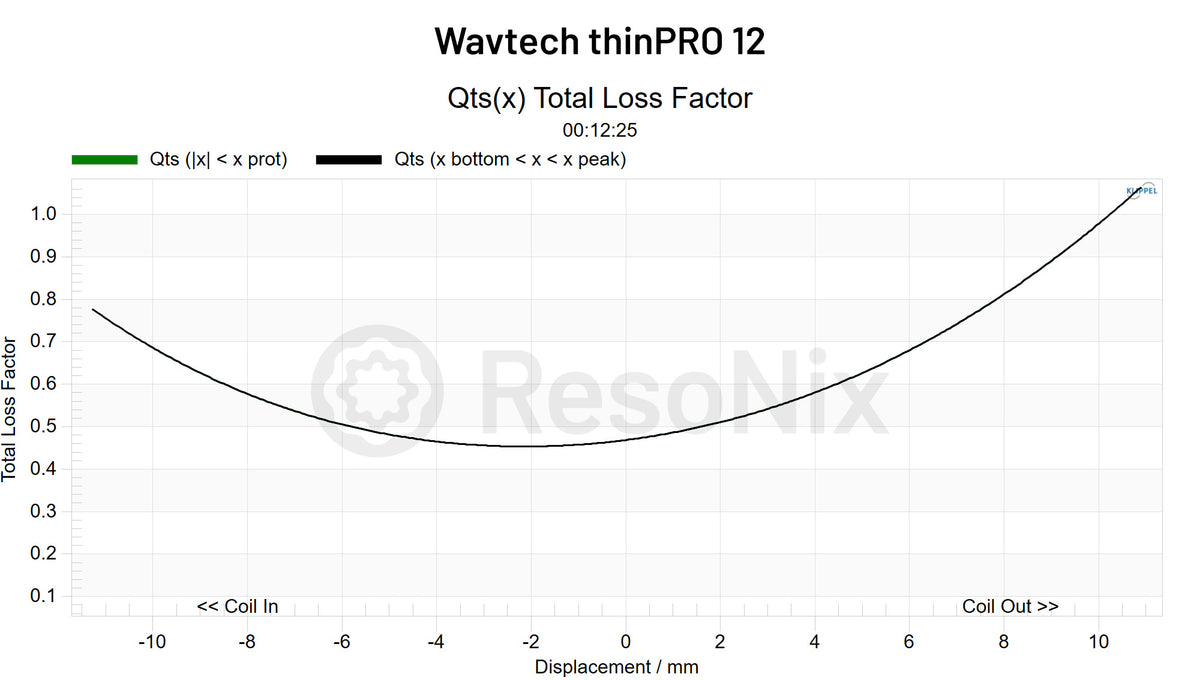

Qts(x)

Qts(x) is the driver’s total damping versus excursion, combining electrical and mechanical losses. Stable, symmetrical Qts(x) means consistent control, while large variation or asymmetry signals uneven damping that can shift response, raise distortion, and cause compression.

Qts stability

In this sample and under these conditions, total damping is only fair. Around center it holds together for a few millimeters, then Qts drifts upward as stroke increases, with the rise occurring earlier on one side of travel than the other. That trend follows the narrowing BL window and the steeper KMS behavior toward the limits, so electrical damping weakens as force factor falls while mechanical damping contribution shifts with stiffness.

Tie-back: The level-dependent change in Qts aligns with what we saw in TRF, even-order content grows sooner at higher drive and the response shape is less stable. In practical terms, a small sealed box that already targets a high Qtc compounds this behavior, while a larger sealed volume that lands near ~0.707 will be more forgiving, though it will not fix the underlying BL and Le contributors.

LSI takeaway

In this sample and under these test conditions, the XBL2 implementation measures like a poorly executed split-gap design, delivering a narrow, peaked BL window with only fair symmetry. The BL 70 percent limit occurs at ±8.85 mm, less than half of the 20 mm one-way claim, and the commonly used 50 percent CMS criterion is near ±10.15 mm, also well below the claim. So in this samples instance, both motor and suspension set a MUCH lower usable stroke than advertised, which was 20mm. Inductance is high at rest and varies strongly with position and current, becoming a practical constraint around ~5 mm.

In practice, this unit nearly reaches the BL limit at 11 volts in free air, so clean headroom is limited by motor linearity, suspension linearity, and inductance behavior rather than a discrete resonance, which matches the high-level TRF pattern of rising H2 and shape drift. Put plainly, the measured linear capability is not even half of what is advertised, and the sealed volume needed for ~0.707 versus the stated 0.6 ft³ creates a large claim-to-reality gap that can mislead buyers who rely on the published specs.

Enclosure alignment calculations

Manufacturer sealed enclosured recommendations and the resulting QTC: 0.6 ft³ which nets a 0.940 QTC

Sealed volume required for 0.707 QTC on this sample: 1.55 ft³

Applicable for infinite baffle? No. Qts and usable/clean xmax are way too low.

T/S parameters
