JL Audio 12W7AE-3

Overall summary

In this sample and under these test conditions, the 12W7AE-3 delivers very high output potential in sealed boxes thanks to a large BL-based stroke, but distortion is high for this class, which limits its appeal if sound quality is your goal. At 1 V, THD is about 7.5 percent at 20 Hz with another feature just under 5 percent near 30 Hz. At the standardized high level, THD is about 15 percent at 20 Hz with high H2 and noticeable H3 across much of the passband.

Large-signal behavior explains the pattern. BL 70 percent lands at 34.1 mm one way with a mostly flat shelf through roughly ±20 mm and a slight tilt that weakens coil-in and strengthens coil-out. CMS 50 percent is not reached on this sample, resolving to about 84 percent when BL hits 70 percent, and the suspension is biased coil-in. The earliest constraint is inductance. Le at rest is about 1.27 mH and varies strongly with position and current, with the 17 percent Le criterion at about 18.77 mm one way. Qts is about 0.55 at rest and rises toward about 0.70 by roughly 30 mm.

On the microphone, the 1 V sweep shows a high baseline distortion response with small low-level artifacts that disappear at higher drive, indicating operating noise within the driver rather than measurement noise. At the high-level sweep set just under the BL 70 percent point, the cone reaches about 32 mm one way at 20 Hz in free air, and the distortion response remains high, with H2 growth and persistent H3 that track the measured Le(x) and Le(i) behavior.

For enclosures, the manufacturer’s sealed recommendation of 1.375 ft³ computes to Qtc ≈ 0.794 on this sample, while about 2.14 ft³ targets ~0.707. In that ~0.707 alignment, plan roughly 1,250 W at 10 Hz and about 1,500 W at 20 Hz to touch the BL 70 percent stroke of 34.1 mm, noting that the practical clean limit occurs earlier near ~18.77 mm due to inductance. Infinite baffle can look appealing from the resting Qts, but the combination of moving mass, motor and suspension tuning, and strong Le variation make a compact sealed alignment the better fit here.

Manufacturer's suggested use case

JL Audio positions the 12W7AE-3 as its reference 12 inch subwoofer for high-performance automotive sub-bass. It is presented as uniquely capable of extreme output, strong dynamics, and tight, articulate bass with very low distortion in either sealed or ported systems. For the 12 inch model, JL specifies a nominal 3 ohm load, 1000 watts RMS power handling, 29 mm one-way linear excursion by overhang method, and enclosure recommendations of 1.375 ft³ sealed or 1.75 ft³ ported. The W7AE line is marketed as a solution for deep, rich, evenly balanced bass that tracks complex program material accurately while remaining reliable under heavy use.

According to JL, performance comes from a set of patented technologies and platform choices. Dynamic Motor Analysis optimization is claimed to keep motor force linear across a wide excursion and power range, which they say reduces distortion and preserves transient accuracy. Elevated Frame Cooling routes high-velocity air across the top plate, while a radial cross-drilled pole piece adds venting to manage heat and minimize parameter shift. The mineral-filled polypropylene W-Cone uses a dual-skin structure for stiffness with low mass, and the OverRoll surround places the surround outside the mounting flange to maximize usable piston area and maintain linear motion. FCAM cone attachment is used for precise alignment at long stroke, and the suspension employs a progressive-roll spider with a plateau-reinforced attachment. The anniversary edition adds a black satin cast-alloy frame, a silver anodized trim ring, and special badging, and JL notes that the W7 platform holds multiple U.S. patents covering its motor, suspension, and assembly.

Our suggested use case

In this sample and under these test conditions, the 12W7AE-3 makes sense if your goal is high output in a sealed enclosure and you have real amplifier power available. The manufacturer’s 1.375 ft³ sealed recommendation computes to about 0.794 Qtc on this sample for a punchier alignment. A more neutral target is about 2.14 ft³ for ~0.707 Qtc. For power planning in the ~0.707 sealed alignment, it takes roughly 1,250 W at 10 Hz and 1,500 W at 20 Hz to reach the BL 70 percent xmax of 34.1 mm. That is the displacement potential this motor can deliver in sealed.

If sound quality and low distortion are your priority, this is not a strong candidate. On this sample, the inductance limit arrives early at ~18.77 mm one way, and TRF distortion is high at both low and high drive, with ~7.5 percent THD at 20 Hz at 1 V and ~15 percent THD at 20 Hz at the high-level sweep, along with elevated H2 and noticeable H3 across the passband. In practical terms, choose this when you want loud sealed bass and are willing to accept higher distortion, not when you are chasing the cleanest, most transparent low frequency reproduction.

Testing and linearity limits vs. what is advertised

What it took to reach our high-level sweep limit, and how that compares to the published specs.

High-level sweep rule: Set just under the BL 70 percent point from LSI

High-level sweep limit for this sample: 44 volts

Approximate electrical power at that limit at 20Hz: ~725 W into 2.66 Ω. Real power varies with frequency/impedance. volts

Rated power (published): 1000 W RMS

Power used to hit the standardized limits in free air, relative to their xmax rating free air: ~73%

Claimed Xmax vs. measured at BL 70%: 29.0mm claim vs 34.1mm measured, ~118% of the claimed 29.0mm

Xmax @ 50% CMS: Not reached within our protection window; ~84% is what was reached for CMS when BL hit 70%; test aborted after a bottoming-out event near ~40 mm during pink-noise stimulus.

Xmax @ 17% Le: ≈ 18.77 mm from 17% Le(x)/Le(i) variation, approximately only ~65% of the claimed 29.0 mm xmax

Manufacturer suggested sealed enclosure size (and its resulting QTC): 1.375 ft³ which results in a 0.794 QTC

Required sealed enclosure for 0.707 QTC: 2.10 ft³ nets a 0.707 QTC.

Xmax @ 50% CMS: Not reached within our protection window; ~84% is what was reached for CMS when BL hit 70%; test aborted after a bottoming-out event near ~40 mm during pink-noise stimulus.

Overall performance snapshot

This is our subjective interpretation of the objective data. How we derive these scores can be found on the home page of the testing section.

Distortion & frequency response - TRF measurements

Method recap: Method recap: Nearfield mic positioned at 1/10th the cone diameter plus 2 inches, on-axis. Response measured to 1 kHz and THD to 500 Hz. 1/6-oct smoothing. Two drive levels, 1 V baseline and a high level set at 44 V per the under BL-70 rule derived from LSI for this unit, reaching 32.3mm of excursion at 20Hz. Distortion reported both as percent and by harmonic.

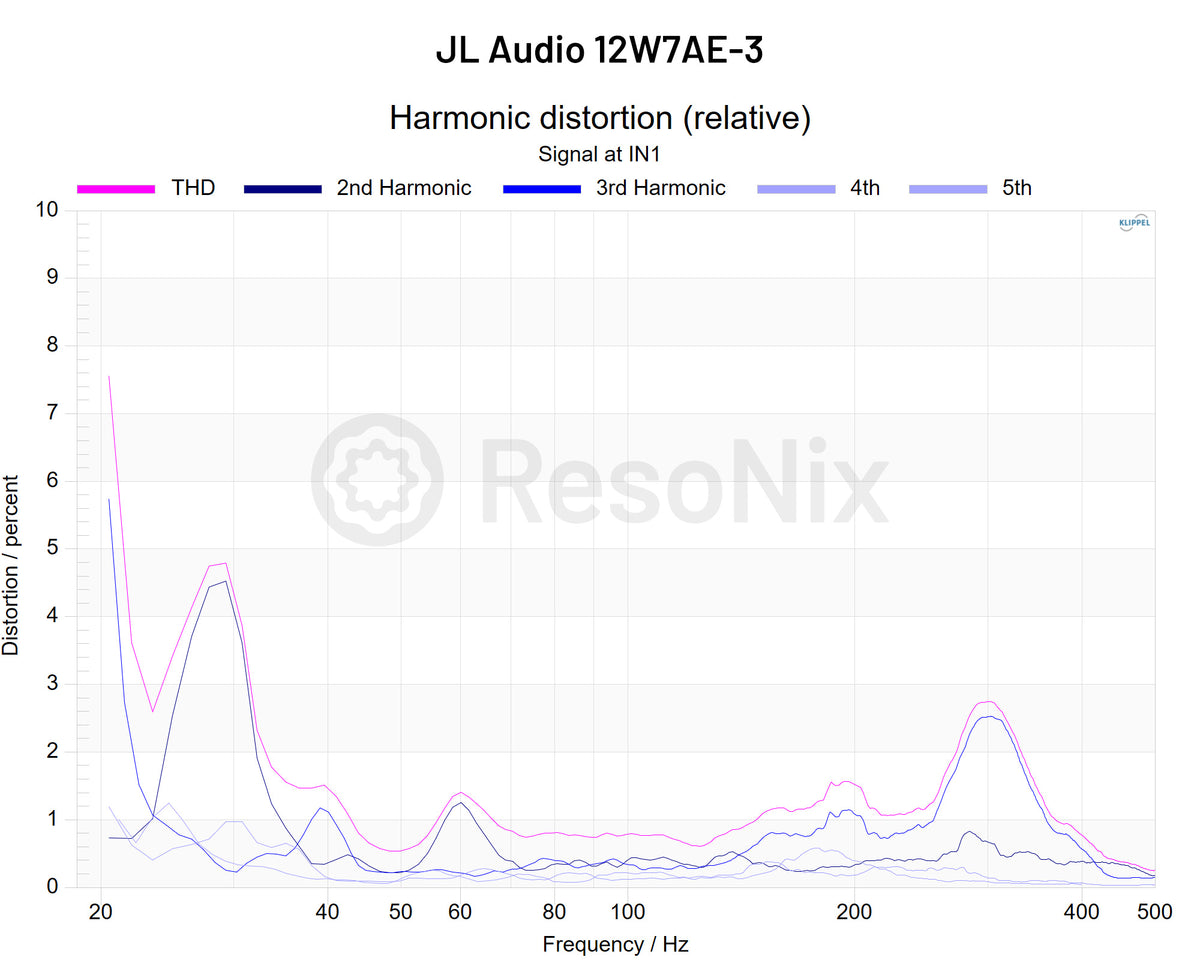

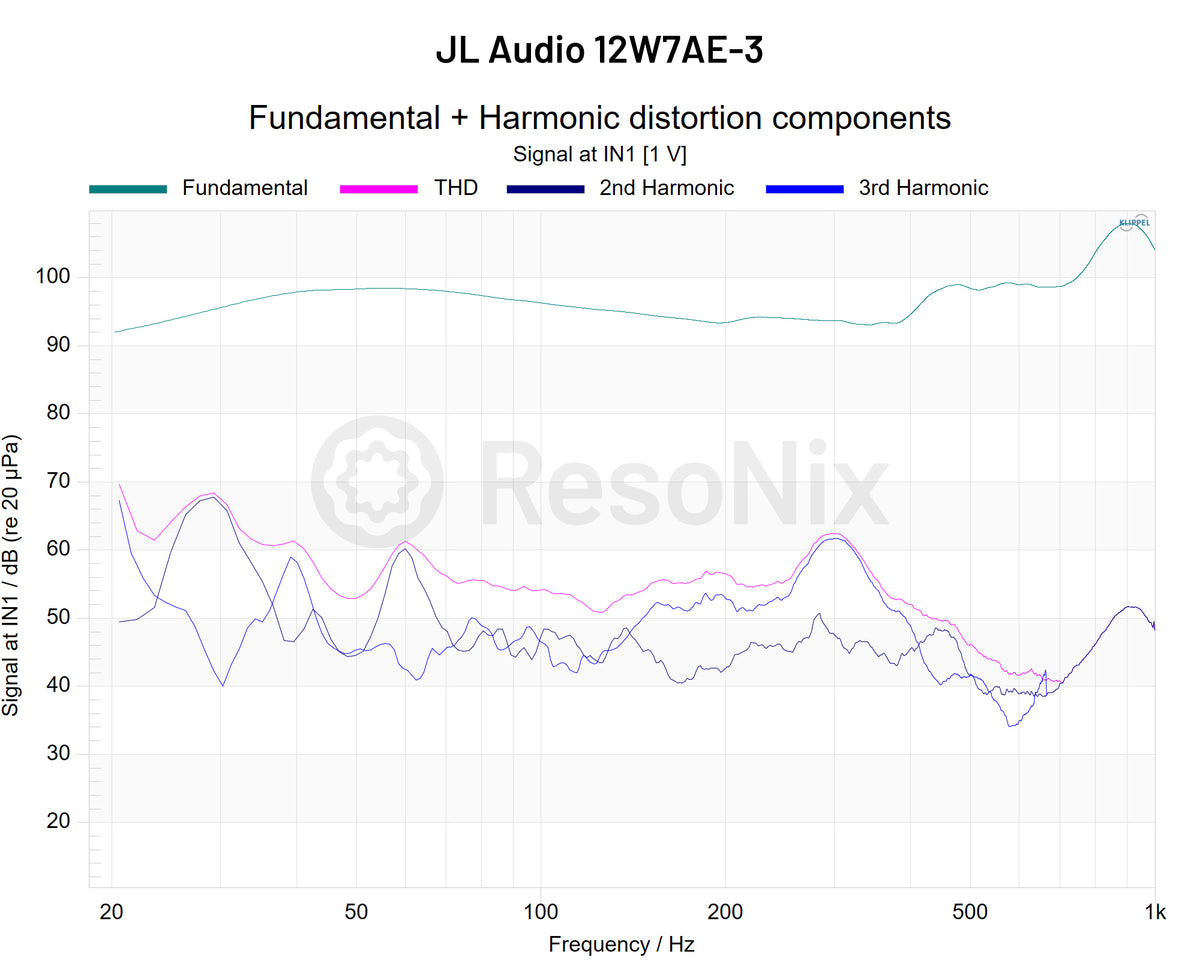

At 1 volt - baseline

Baseline distortion is already very elevated for a 12 inch subwoofer of this class. THD reaches about 7.5 percent at 20 Hz and there is a second feature near 30 Hz at just under 5 percent. Above roughly 40 Hz, distortion does not collapse to very low values, and both H2 distortion and H3 distortion remain visible through the passband. Response shape is not very stable at this level with a few artifacts that vanish at higher level, which indicates some level of operating noise within the driver itself, likely minor mechanical or airflow interactions that are masked at higher drive.

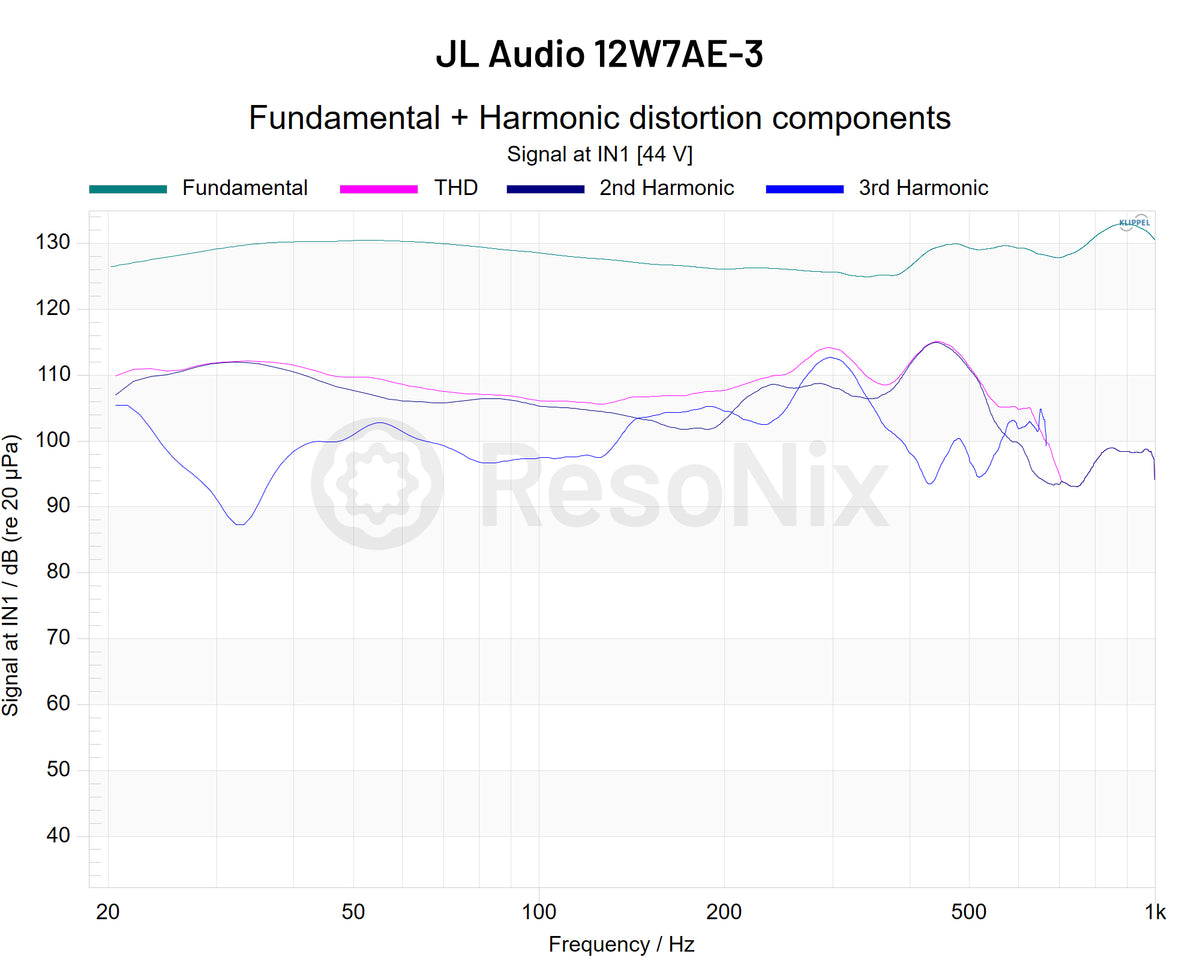

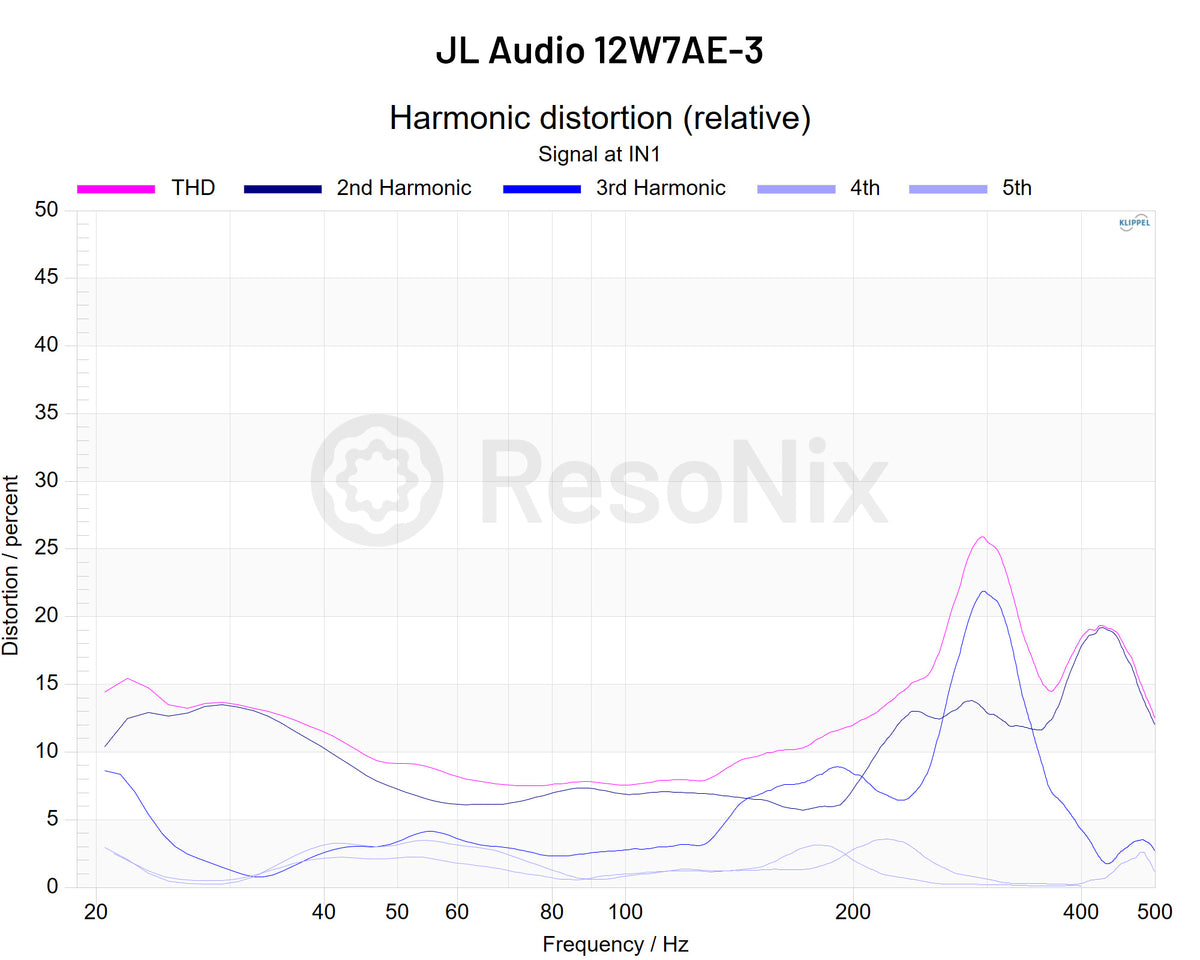

At high level voltage (44 volts)

At the high-level sweep, THD climbs to about 15 percent at 20 Hz and stays elevated across most of 20 to 120 Hz. H2 distortion rises significantly and H3 distortion is clearly present, consistent with increased current swing and position-dependent inductance behavior. In free air at 20 Hz the cone reaches about 32mm one way at this drive level (2mm less than its 70% BL limit), and the response shows mild level-dependent shape drift that tracks the inductance trend rather than a discrete resonance. No suspension wall or sudden compression feature is seen inside the tested band at this level.

Delta - 1 volt distortion vs. high level distortion

From 1 V to 44 V, the distortion floor does not scale benignly. Both the magnitude and the shape change, with H2 distortion growth and persistent H3 distortion aligning with the LSI finding that the Le 17 percent criterion occurs early at about 18.77 mm. BL remains usable to 34.1 mm at the 70 percent standard and CMS 50 percent was not reached before BL, so the rise in distortion with drive is best explained by inductance variation with position and current, or by other mechanical features of this driver, but not by a suspension limit in this sample.

What this means in practice

For this sample, distortion behavior is the constraint. It starts high at small signal and rises quickly with level, driven by Le(x) and Le(i), not by a suspension wall. Treat about 19 mm one way as the practical clean limit even though BL 70 percent is 34.1 mm. Running near 44 V at 20 Hz reaches about 32 mm with roughly 15 percent THD, so designs that stack large stroke and current in the 20 to 40 Hz region will not stay clean.

In sealed systems, keep the target curve conservative below roughly 35 Hz and avoid heavy low-shelf boosts. If you need more headroom, add cone area rather than trying to buy it with EQ and power, which only pushes H2 and H3 higher. In short, use this when loud sealed bass is the goal, and plan the system so the driver spends little time past ~19 mm one way in the lowest octave.

Motor & suspension linearity - LSI measurements

Method recap: Klippel LSI large-signal identification for this unit, cold and used for enclosure computations. Standard thresholds in this project are BL 70 percent, CMS 50 percent, and a 17 percent inductance variance criterion. Commentary below ties the large-signal behavior to the acoustic results.

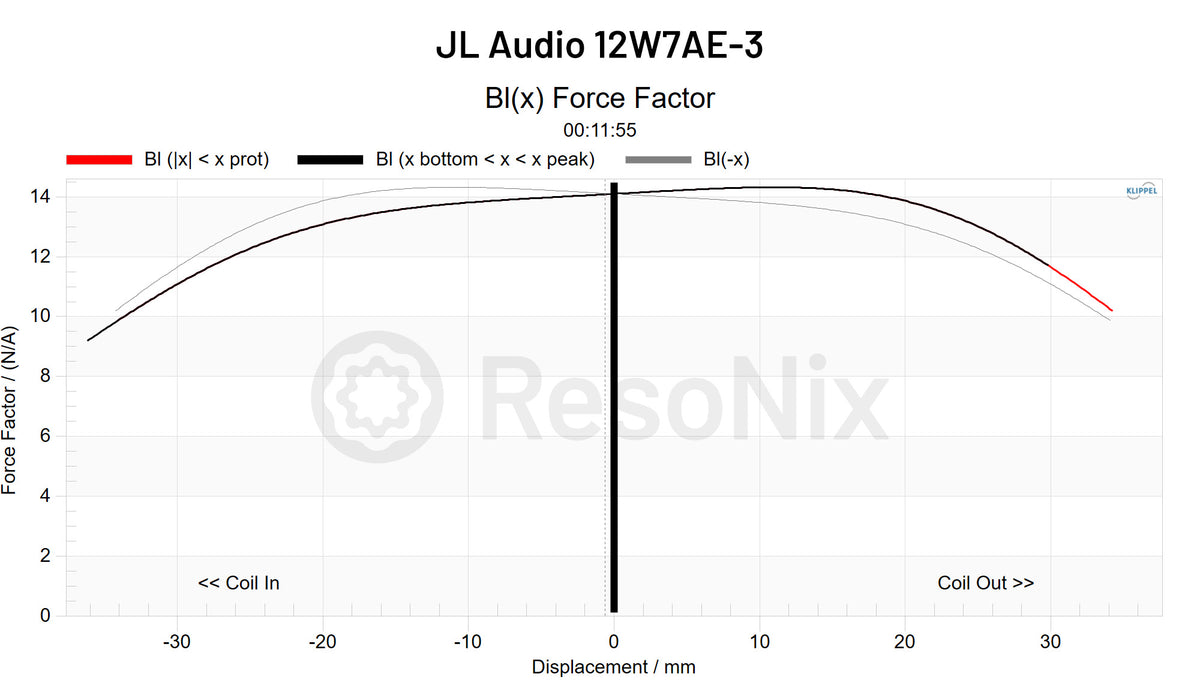

Bl(x)

Bl(x) shows how much motor force a speaker produces as the voice coil moves, B is magnetic field strength and L is the wire length in that field. A high, wide, symmetrical BL curve means linear control and low distortion, a steep or uneven drop means earlier output limits and rising distortion, which is why BL(x) is often the most telling single Klippel LSI indicator of real performance.

Bl(x) window and shape

In this sample, the 70 percent BL standard lands around 34.1 mm one way. The central shelf is mostly flat through roughly ±20 mm, with a slight tilt that shows less force on the coil-in side and more force on the coil-out side. Practically, this is a very wide BL window for a 12, but the tilt helps explain why even-order distortion components begin to rise as stroke increases.

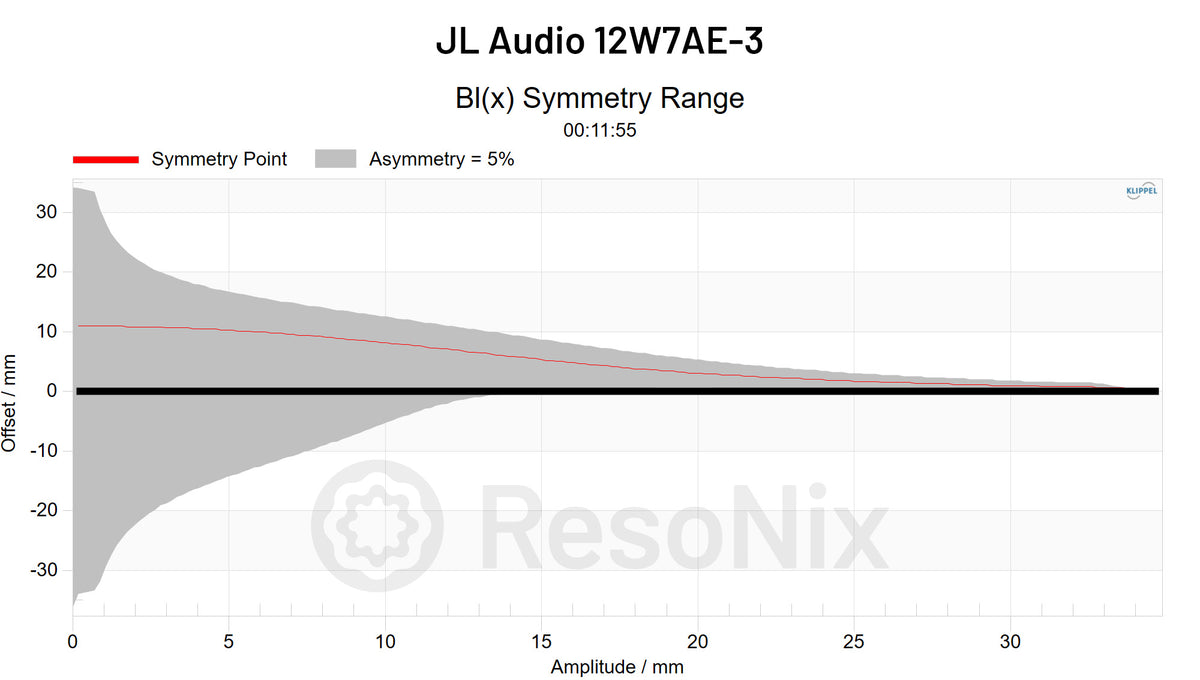

Bl(x) symmetry

BL symmetry is biased coil-out, especially at lower stroke (by about 11mm). In practice, inward motion runs into the weaker side sooner, which tends to raise H2 distortion and trims clean headroom on inward peaks on this sample.

Cms(x)

Cms(x) is suspension compliance versus displacement, the inverse of stiffness. When the curve is broad and symmetrical, motion is linear and distortion stays low. Early roll off or offset indicates progressive stiffening or mis-centering, which adds mechanical distortion and caps clean excursion.

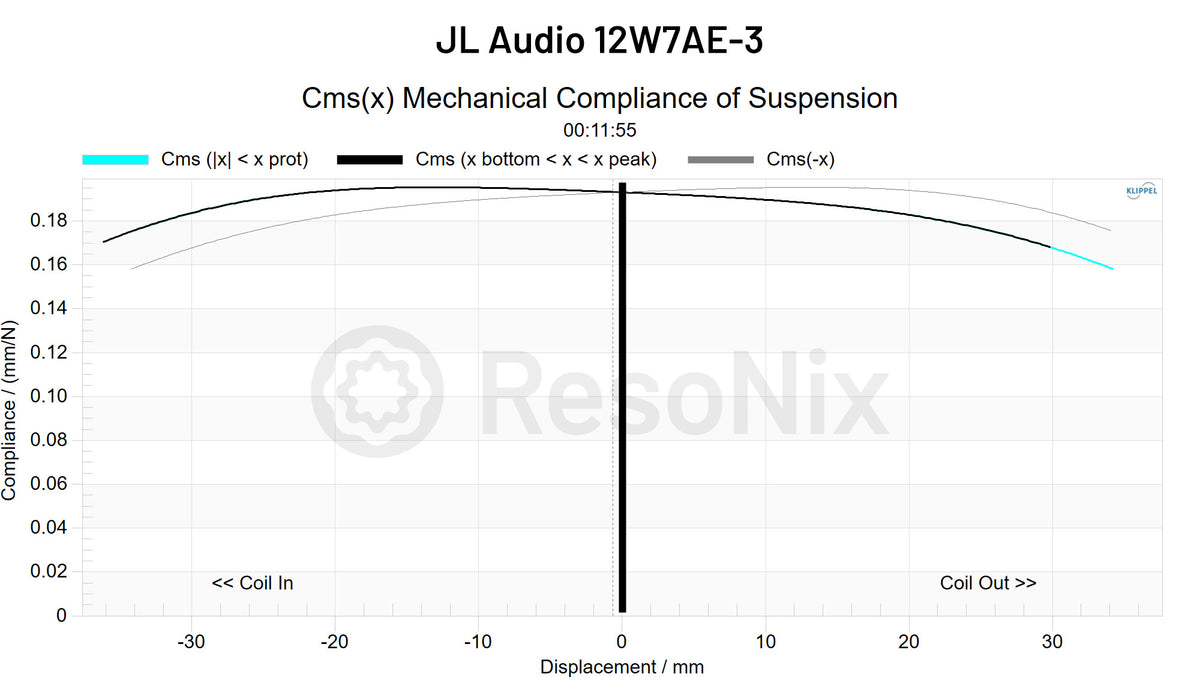

Cms(x) window and shape

CMS 50 percent not reached on this sample; CMS resolved to ~84% when BL reached 70%. The CMS plot shows a clear tilt, with higher compliance coil-in and early stiffening coil-out (compliance falls steadily from around center toward +30 mm). This supports “good travel without hitting CMS 50%” while explaining why even-order content grows as excursion increases.

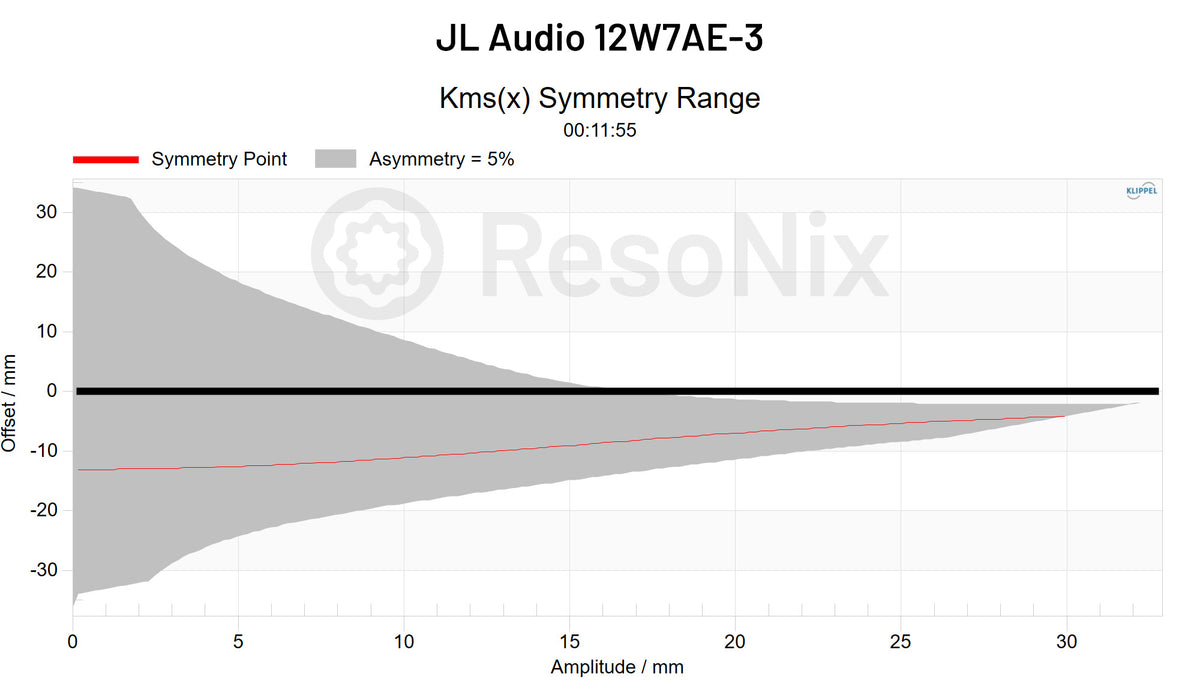

Cms(x) symmetry

Suspension asymmetry is strongly biased coil-in. The Kms-symmetry-range plot shows a negative symmetry offset ~−12 mm at small amplitude, trending back toward center by ~30 mm, which is consistent with earlier inward-half compression and added H2 on inward peaks.

Inductance - Le(x) and Le(i)

Le(x) and Le(i) measure how a subwoofer’s voice coil inductance changes with position and current. These curves show how stable the motor’s magnetic field is under real movement and drive conditions. When inductance varies heavily, it causes distortion, uneven response, and a loss of upper-band clarity, which is why Le(x) and Le(i) are critical for evaluating how clean and consistent a motor’s behavior really is.

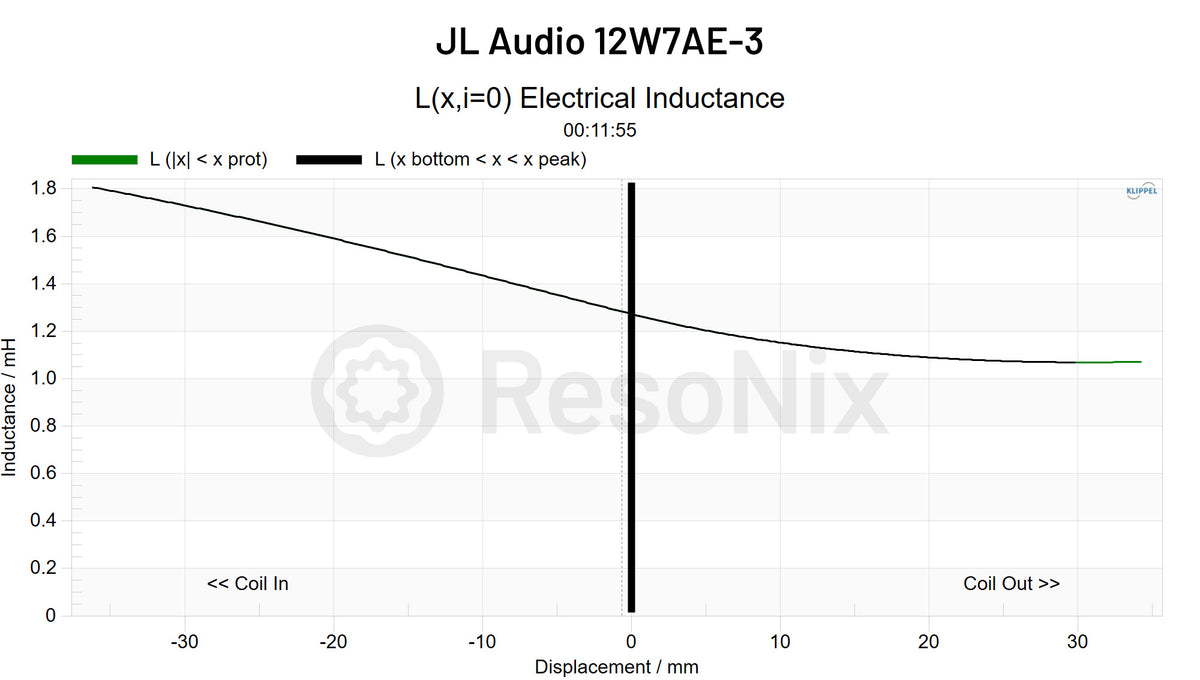

Level and shape

Inductance at rest is Le(0) ≈ 1.27 mH. Position dependence is strong, swinging to about ~1.80 mH coil-in and ~1.08 mH coil-out by the travel extremes, roughly +42 percent / −15 percent from rest. Using the common 17 percent variance guideline, the practical inductance-based displacement limit occurs at ~18.77 mm one way, well before the BL 70 percent value, which explains the elevated H2/H3 distortion trend at higher drive.

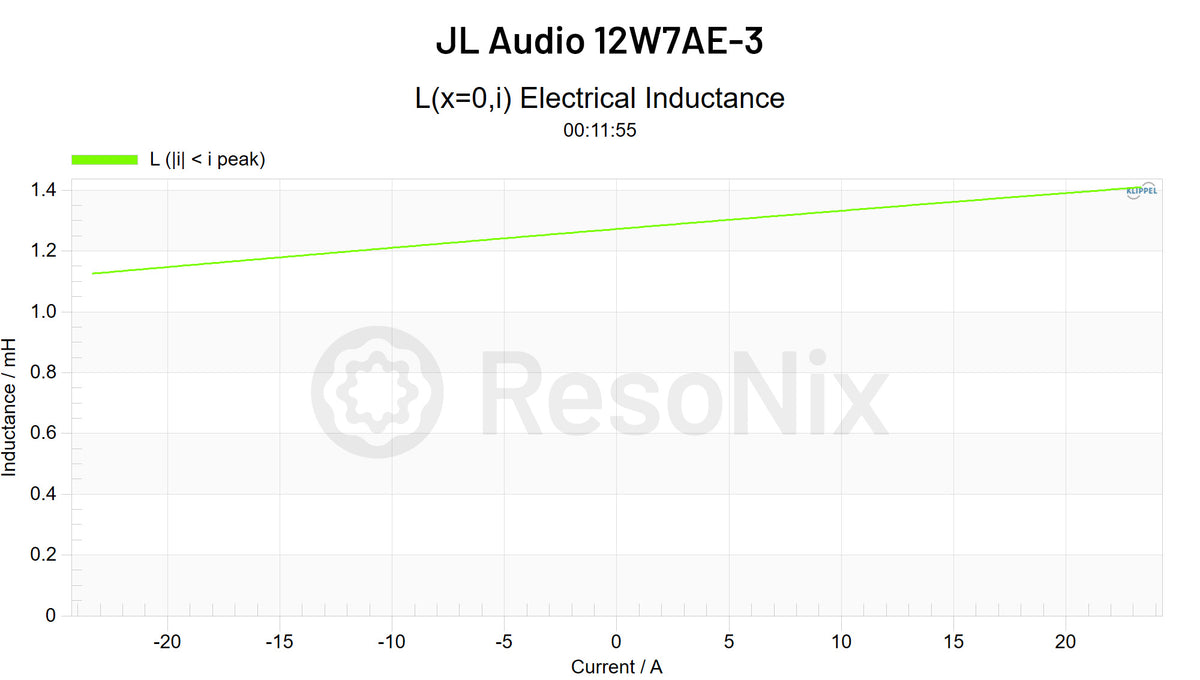

Current dependence

Le(i) increases markedly with current, more than most other subs in this project, which further nudges response shape with level and sustains odd-order growth at higher stroke.

Qts(x)

Qts(x) is the driver’s total damping versus excursion, combining electrical and mechanical losses. Stable, symmetrical Qts(x) means consistent control, while large variation or asymmetry signals uneven damping that can shift response, raise distortion, and cause compression.

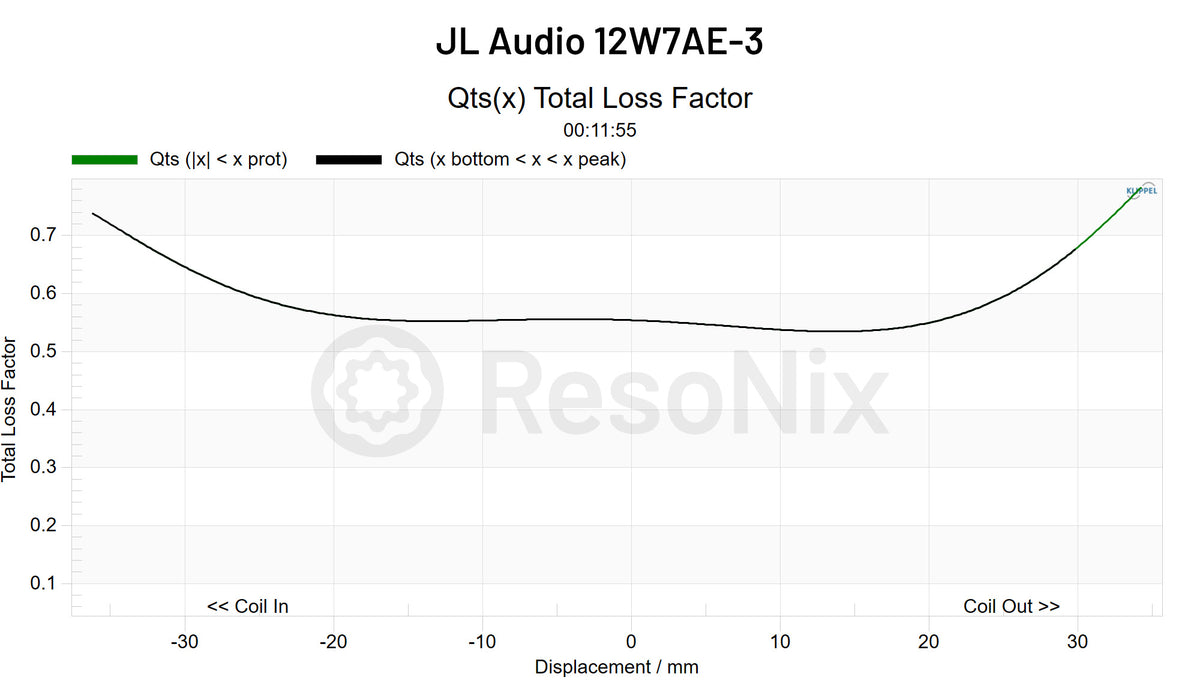

Qts stability

Very effective damping is flat to about ±20 mm, then rises with stroke, moving from ~0.55 at x = 0 toward ~0.70 around 30 mm. That rise is consistent with the mild level-dependent response drift observed in the high-level TRF sweep on this sample.

LSI takeaway

In this sample and under these test conditions, practical clean headroom is set by inductance behavior well before the motor or suspension limits. JL publishes 29 mm one way by overhang, but by the common BL 70 percent definition this unit resolves to 34.1 mm, with a mostly flat shelf through about ±20 mm and a mild tilt that weakens coil-in and strengthens coil-out. CMS 50 percent is not reached on this sample, CMS resolves to ~84 percent when BL hits 70 percent, and the CMS curve itself is biased coil-in, which pairs with the BL tilt to favor even-order growth on opposing half cycles. The Kms symmetry range corroborates the suspension bias, showing a negative symmetry offset near −12 mm at small amplitudes that trends back toward center by roughly 30 mm.

The earliest constraint is inductance. Le(0) ≈ 1.27 mH and varies strongly with position, swinging to roughly ~1.80 mH coil-in and ~1.08 mH coil-out, with the 17 percent Le criterion occurring at ~18.77 mm one way. Le also rises notably with current. These large Le(x)/Le(i) changes align with the TRF results, where at 1 V THD is already elevated (~7.5 percent at 20 Hz with another feature near 30 Hz), and at the standardized high level of 44 V the driver reaches about 32 mm one way at 20 Hz with ~15 percent THD at 20 Hz and persistent H2 and H3 across most of the passband. A separate pink-noise attempt bottomed the unit near ~40 mm, which does not imply clean operation to that displacement. Net, the motor provides a very wide BL window and the suspension does not collapse early, but inductance variation dominates first, so a ~19 mm one-way inductance-based limit should be treated as the practical clean excursion boundary on this sample rather than the higher BL-based figure.

Enclosure alignment calculations

Manufacturer sealed enclosured recommendations and the resulting QTC: 1.375 ft³ which results in a 0.794 QTC

Sealed volume required for 0.707 QTC on this sample: 2.10 ft³ nets a 0.707 QTC.

Applicable for infinite baffle? It can work based on the high QTS, relatively low moving mass, and high excursion. That said, I have heard from other trusted members in various circles that they haven't had good luck with this subwoofer in IB for various reasons, and most end up sticking to sealed enclosures.

T/S parameters
