Audiofrog GB12D4

Overall summary

In this sample and under these test conditions, the Audiofrog GB12D4 comes across as an average-at-best 12-inch subwoofer. Its performance is ultimately limited by inductance behavior, with also underwhelming motor force (BL) and suspension linearity playing secondary roles.

At 1 volt, the TRF distortion sweep shows a fairly typical result for this class. There are no major breakup modes in-band, though low-frequency distortion does begin to rise earlier than average. Total harmonic distortion reaches as high as 24 percent. H3 rises smoothly and peaks around 18 percent, overtaking even-order H2, which also peaks high at around 15 percent.

During the high-level sweep, which is set just under the 70 percent BL threshold from our LSI data at 16 volts and 15.5 mm excursion at 20 Hz, we see an unusual distortion shape. H3 distortion rises sharply and becomes dominant below 40 Hz. This trend directly follows the LSI results, which show Le varying strongly with both position and current.

The large-signal data confirms the ceiling. The usable portion of the BL curve is narrow and asymmetric. This sample crosses the 70 percent BL threshold at about 16.5 mm one-way excursion. The suspension reaches the 50 percent CMS threshold at 12.6 mm.

So the linear stroke is modest even before we consider inductance. But inductance is the real limiting factor here. Using the 17 percent Le variation guideline, clean output is limited to just 5.7 mm one-way. This is consistent with the TRF results, where distortion ramps up early despite staying under the BL-defined xmax. The actual xmax ends up well below the manufacturer’s claimed 19 mm.

Drive and stroke behavior reflect the same picture. With the dual 4 ohm coils paralleled to 2 ohms, Re measures about 2.3 ohms. The 16 volt sweep corresponds to roughly 112 watts in free air. At that level, the cone reaches 15.5 mm excursion at 20 Hz and about 24.5 mm at 10 Hz. So yes, the moving system can travel, but it does not stay clean doing so. Distortion is driven by inductance behavior first, suspension second, and motor third.

Bottom line, in this sample and under these conditions, the GB12D4 does its job in the intended band, but runs out of clean output much sooner than the spec sheet suggests. Inductance is the primary constraint, followed by non-ideal motor and suspension behavior. This explains why the TRF data shows an early and smooth H3 rise and a lower low-frequency ceiling compared to other drivers with flatter Le(x) and more stable Le(i).

Manufacturer's suggested use case

Audiofrog’s GB12D4 is a 12-inch subwoofer aimed at high performance in compact sealed and modest vented boxes. It uses a treated paper cone, a 3-inch fiberglass-former voice coil, dual 4-ohm coils with an external impedance switch for 2 or 8 ohms, and a proprietary vented cast-aluminum basket. The motor includes a copper pole-cap to reduce inductance and distortion, plus an extended, flared pole-vent and dual ferrite magnets.

Rated at 500 W RMS (1,500 W peak) with a claimed 19 mm one-way linear Xmax, it’s positioned for small sealed enclosures around 1.0 ft³ and for vented use around 1.5 ft³ tuned near 33 Hz, prioritizing broad compatibility and easy system matching.

Our suggested use case

In this sample and under these test conditions, the Audiofrog GB12 works okay in small enclosures, but does better in medium sealed boxes. It does the job, but inductance non-linearity becomes the real limit well before the BL and CMS thresholds, which matches the 16 V TRF trend where odd order H3 distortion rises pretty drastically and overtakes H2 distortion below about 40 Hz. Subjectively, performance has been decent in these alignments, but overall quality feels worse than expected for the price tier.

For sizing, the manufacturer’s 1.0 ft³ recommendation lands around a QTC of 0.958 and works for most installs just fine. 0.8 ft³ is a semi-workable space saver but tends to need more power and some drastic EQ work to reach the same bottom end. If you want a classic 0.707 alignment on this unit, plan for 2.75 ft³. The published 1.5 ft³ vented option at roughly 33 Hz cuts stroke near tuning but does not change the inductance-driven distortion character, while also reducing content in the low 20’s and infrasonic range, while boosting a frequency range that we almost always have to cut in a vehicle anyways.

This driver is not an obvious fit for true IB, though a trunk-baffle style install can work with reasonable expectations. When you need extra headroom, add cone area rather than leaning on more power and EQ boost down low due to the high distortion.

Testing and linearity limits vs. what is advertised

What it took to reach our high-level sweep limit, and how that compares to the published specs.

High-level sweep rule: Set just under the BL 70 percent point from LSI

High-level sweep limit for this sample: 16 volts

Approximate electrical power at that limit at 20Hz: ~125 W into a nominal 2 ohm resistive load. Real power varies with frequency and impedance. volts

Rated power (published): 500 W RMS

Power used to hit the standardized limits in free air, relative to their xmax rating free air: ~25%. Hits 16mm excursion in free air with 125 watts of power.

Claimed Xmax vs. measured at BL 70%: 19 mm claim vs 16.5 mm measured on this sample, only ~87% of the claimed 19 mm.

Xmax @ 50% CMS: 19mm claim vs 12.6 mm on this sample, only ~66% of the claimed 19 mm.

Xmax @ 17% Le: 19mm claim vs 5.7 mm from Le(x)/Le(i) variation on this sample, approximately only ~30% of the claimed 19 mm xmax.

Manufacturer suggested sealed enclosure size (and its resulting QTC): Claimed 1.0 ft³ nets a QTC of 0.958

Required sealed enclosure for 0.707 QTC: 2.75 ft³ nets a 0.707 QTC.

Xmax @ 50% CMS: 19mm claim vs 12.6 mm on this sample, only ~66% of the claimed 19 mm.

Overall performance snapshot

This is our subjective interpretation of the objective data. How we derive these scores can be found on the home page of the testing section.

Distortion & frequency response - TRF measurements

Method recap: Nearfield mic placed at 1/10 the cone diameter + 2 inches on-axis, TRF sweeps at 1V and at a high level set just under the BL 70 percent point from LSI, which was 16V for this sample, achieving 16mm of excursion. Plots use 1/6-oct smoothing, with distortion shown both as harmonics and percent. All Sweeps were run 3 times to ensure repeatability.

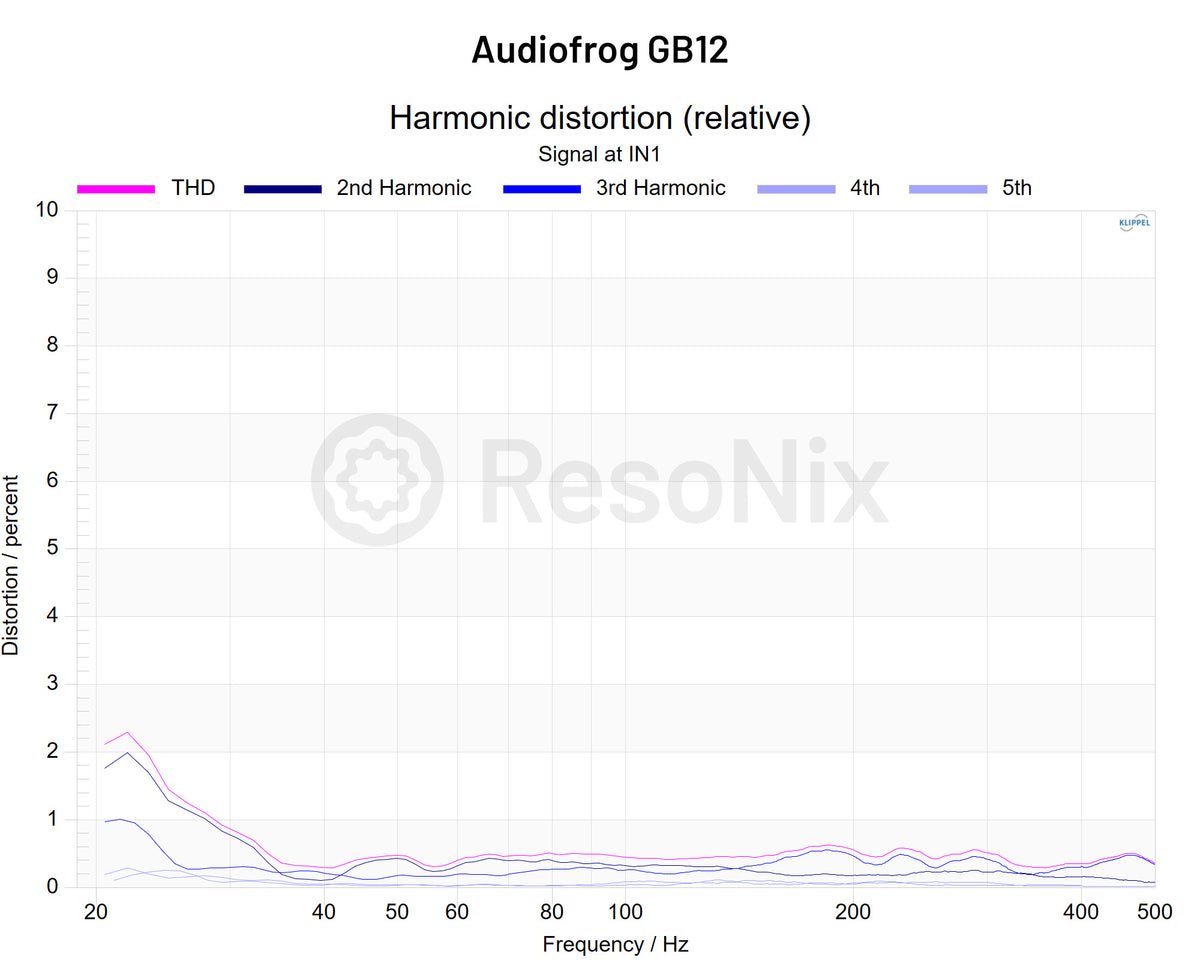

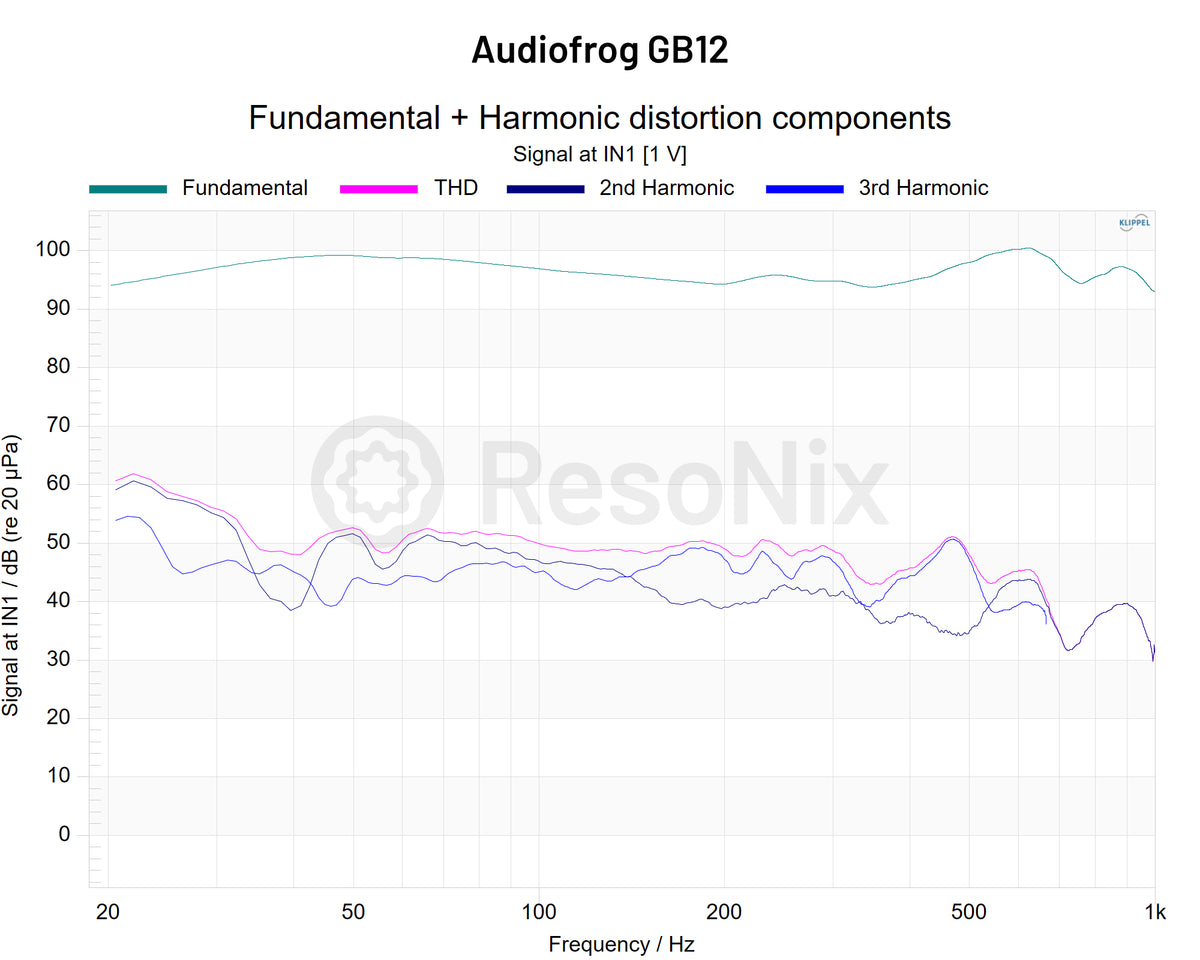

At 1 volt - baseline

In this sample and under these test conditions, the low-level profile reads as broadly typical for a modern 12, with no discrete in-band breakup evident in the 20Hz to 120Hz range. The harmonic structure is present but modest, and the overall shape is consistent across repeated 1V passes.

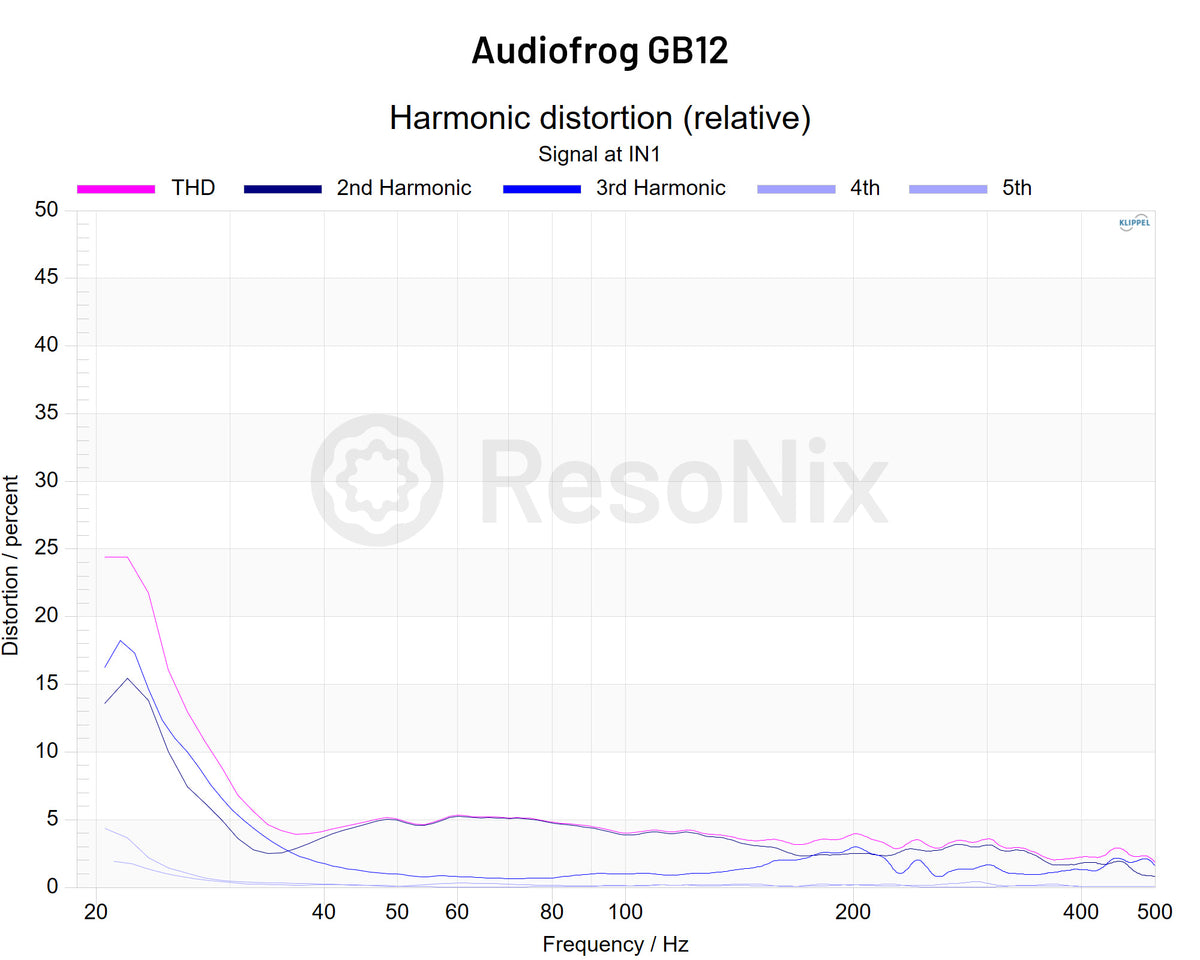

At high level voltage (16 volts)

Below ~40Hz, H3 rises smoothly and, unusually, exceeds H2, which we do not see often. The increase is gradual and linear with frequency, not a narrow spike, and it aligns in theory with the LSI note that, while inductance is low at rest, Le varies with position, i.e., poor Le(x), which tends to favor odd-order growth as current and stroke increase. In this sample, that behavior sets a practical “clean” stroke ceiling earlier than BL or CMS would by themselves.

The GB12’s LSI summary for this unit flags moderate BL inward asymmetry, slight CMS asymmetry, and low-level Le with poor Le(x). Those specifics track with the observed high-level distortion shape, where odd-order content dominates the deep-bass rise at 16V even though we are operating just under the BL-70% rule.

Delta - 1 volt distortion vs. high level distortion

From 1 V to 16 V, roughly 112 watts into 2.3 ohms for this sample, distortion does not scale linearly. Both the magnitude and the shape change, with odd-order H3 distortion growing smoothly and overtaking H2 distortion below about 40 Hz, without narrow resonant spikes.

This aligns with the LSI finding that inductance varies with both position and current, yielding a practical Le-based clean one-way limit near 5 to 6 mm that sits inside the BL 70 percent point at about 16.5 mm and the CMS 50 percent point at about 12.6 mm. Accordingly, the rise in distortion with drive is best explained by Le(x) and Le(i) behavior rather than a BL or suspension ceiling on this sample.

What this means in practice

For this sample, if you are chasing clean sub-40Hz output, plan your alignment and target curve to avoid needing large current and stroke simultaneously in the deep bass. Since inductance nonlinearity limits clean one-way stroke to about 5 to 6 mm in this sample, adding cone area with multiples is a more reliable path to headroom than EQ. It will not change the driver’s inherent nonlinearity and the distortions they seeming cause, but it reduces how often and how hard it comes into play.

Motor & suspension linearity - LSI measurements

Method recap: Klippel LSI large-signal identification for this unit, cold and used for enclosure computations. Standard thresholds in this project are BL 70 percent, CMS 50 percent, and a 17 percent inductance variance criterion. Commentary below ties the large-signal behavior to the acoustic results.

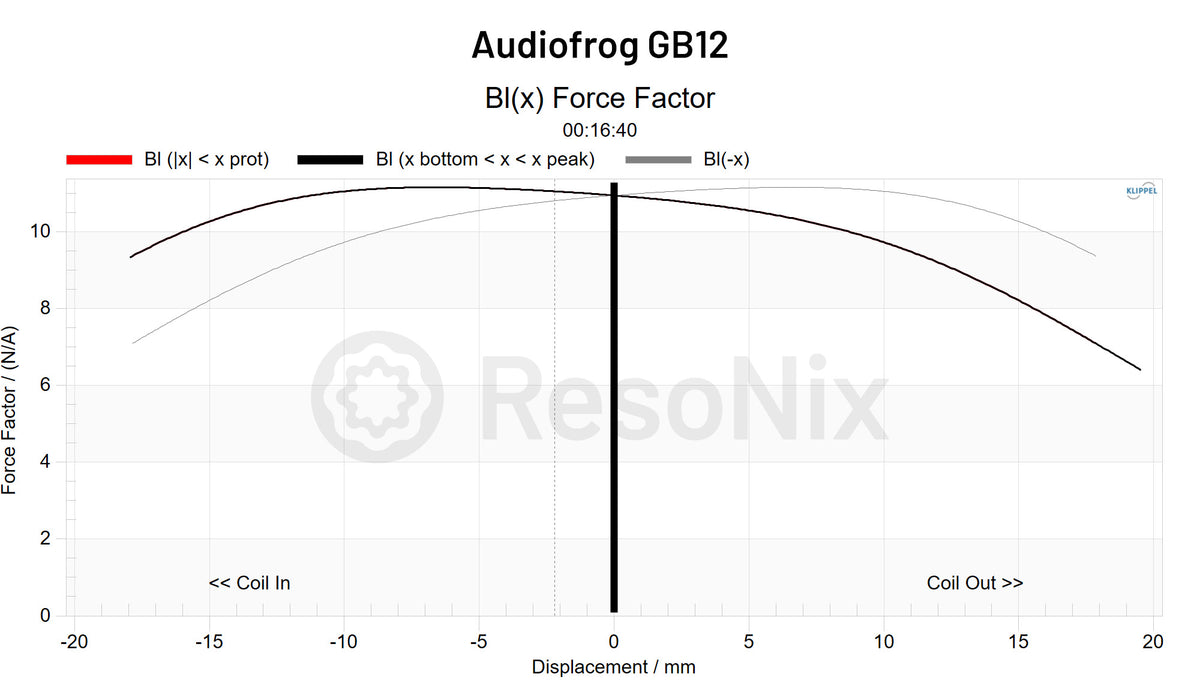

Bl(x)

Bl(x) shows how much motor force a speaker produces as the voice coil moves, B is magnetic field strength and L is the wire length in that field. A high, wide, symmetrical BL curve means linear control and low distortion, a steep or uneven drop means earlier output limits and rising distortion, which is why BL(x) is often the most telling single Klippel LSI indicator of real performance.

Bl(x) window and shape

In this sample and under these test conditions, the 70 percent BL standard lands at roughly 16.5 mm one way. The shelf around center is usable but not wide, and it shows an earlier inward roll-off than you would want for truly clean high-level use. You can also see a mild downward “tilt” from coil in toward coil out, meaning the average BL value trends a little higher on the coil-in side and a little lower as the coil moves outward.

In practical terms, that tilt indicates the motor force is not perfectly balanced about center. Common causes include a small offset of the coil’s rest position in the gap, slight flux asymmetry from the magnetic circuit, or suspension set that shifts the coil at rest. The effect is a narrower effective shelf and earlier onset of compression and distortion than a flat, level BL would allow.

Bl(x) symmetry

The BL curve is biased slightly inward, with the inward side falling away sooner. That bias trims clean headroom on inward peaks and can encourage even-order components on that half-cycle, which lines up with the tendency for H2 to appear earlier on inward motion even if it is not the dominant contributor at the highest level in this case.

The visible downward tilt from coil in toward coil out is the same asymmetry expressed as a slope across the plot, showing that the outward side spends more of its travel in a slightly weaker part of the gap. Even with that tilt, the 70 percent crossing still happens sooner on the inward half-cycle on this sample, so both effects combine to tighten the usable BL window.

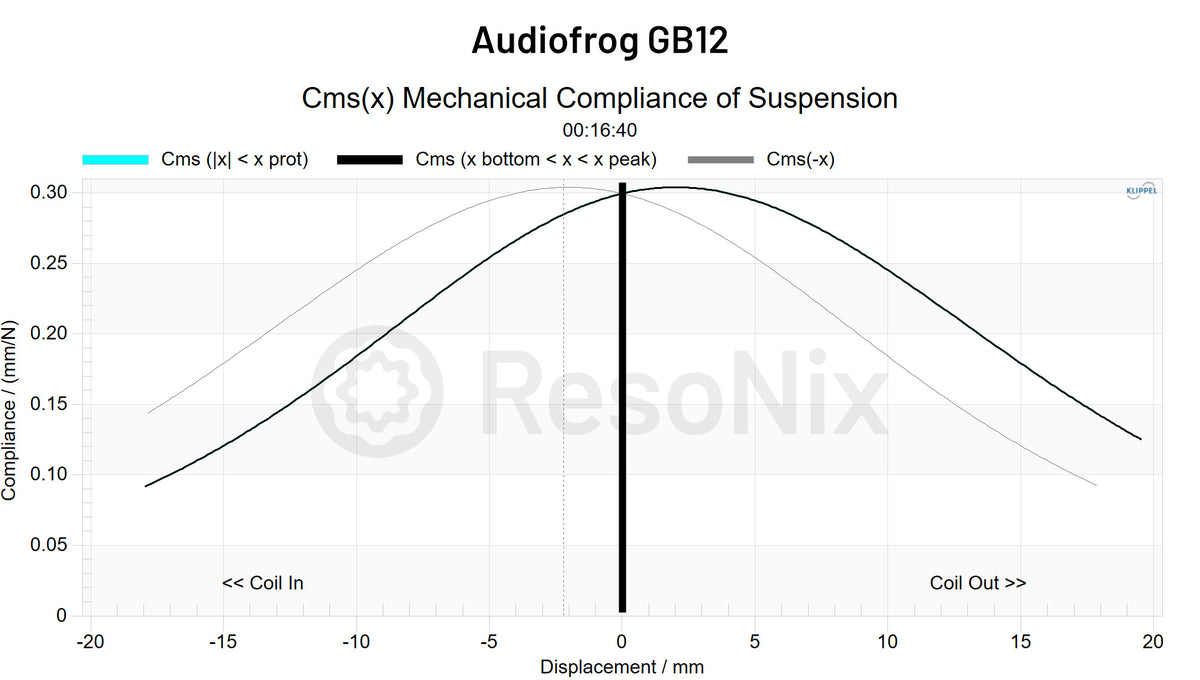

Cms(x)

Cms(x) is suspension compliance versus displacement, the inverse of stiffness. When the curve is broad and symmetrical, motion is linear and distortion stays low. Early roll off or offset indicates progressive stiffening or mis-centering, which adds mechanical distortion and caps clean excursion.

Cms(x) window and shape

Using CMS(x) for the suspension view, the 50 percent criterion occurs at about 12.6 mm one way on this sample, a few millimeters inside the BL limit. The curve steepens outside mid-stroke, so suspension nonlinearity begins to add its own distortion before the motor is fully exhausted. The net effect is a moderate linear stroke range defined jointly by BL and CMS rather than a broad, flat window.

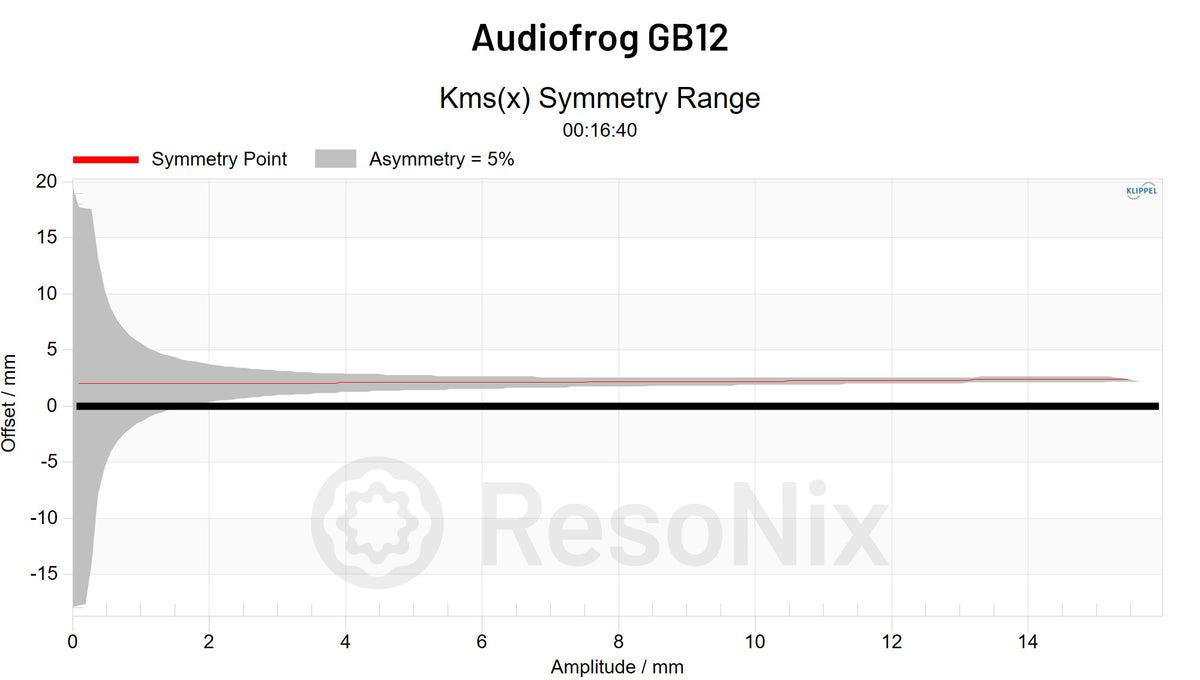

Cms(x) symmetry

Suspension centering is only slightly off, without a severe directional bias. That means CMS does not rescue the motor window, but most likely is not the root cause of the unusual high-level odd-order distortion emphasis; its asymmetry is modest, so its main role is reinforcing the limited linear range rather than driving the distortion character.

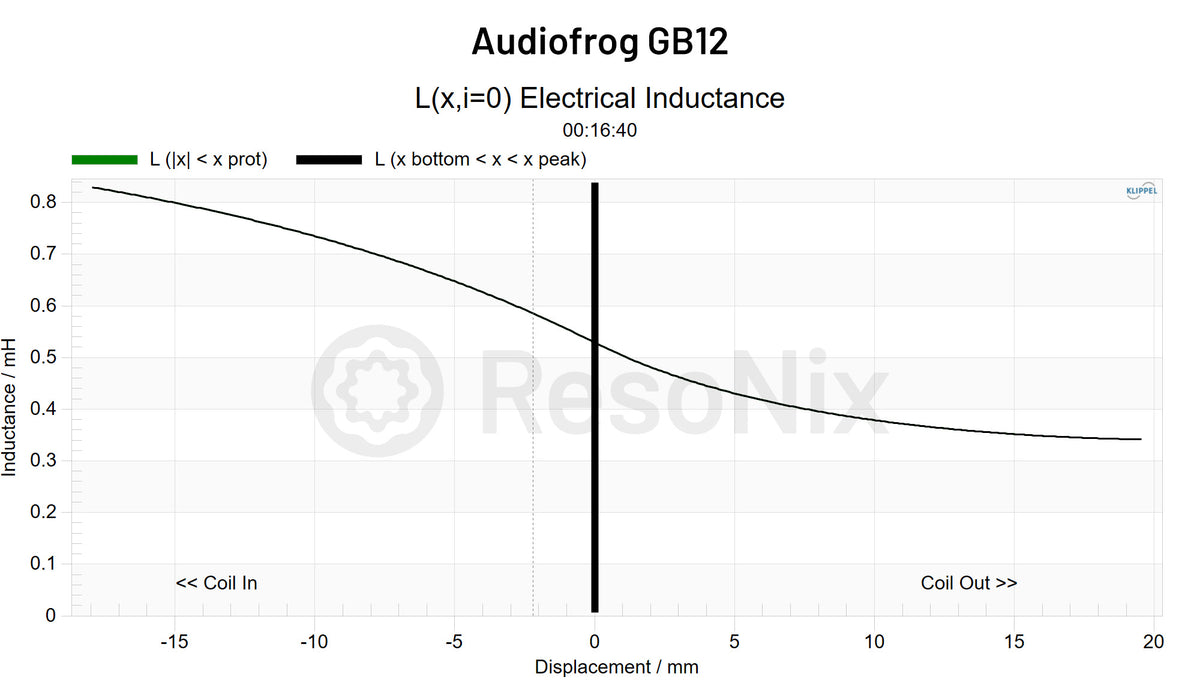

Inductance - Le(x) and Le(i)

Le(x) and Le(i) measure how a subwoofer’s voice coil inductance changes with position and current. These curves show how stable the motor’s magnetic field is under real movement and drive conditions. When inductance varies heavily, it causes distortion, uneven response, and a loss of upper-band clarity, which is why Le(x) and Le(i) are critical for evaluating how clean and consistent a motor’s behavior really is.

Level and shape

Inductance at rest is low-to-moderate for this class, around 0.53 mH, but it varies with position strongly enough that a practical clean one-way limit based on a ~17 percent Le variance lands near 5.7mm. As drive increases, Le(i) adds further modulation. This combination explains why, at the high-level sweep just under the BL-70 percent rule, H3 rises smoothly and even exceeds H2 below roughly 40 Hz: the inductance behavior becomes the governing limiter before BL or CMS would on their own.

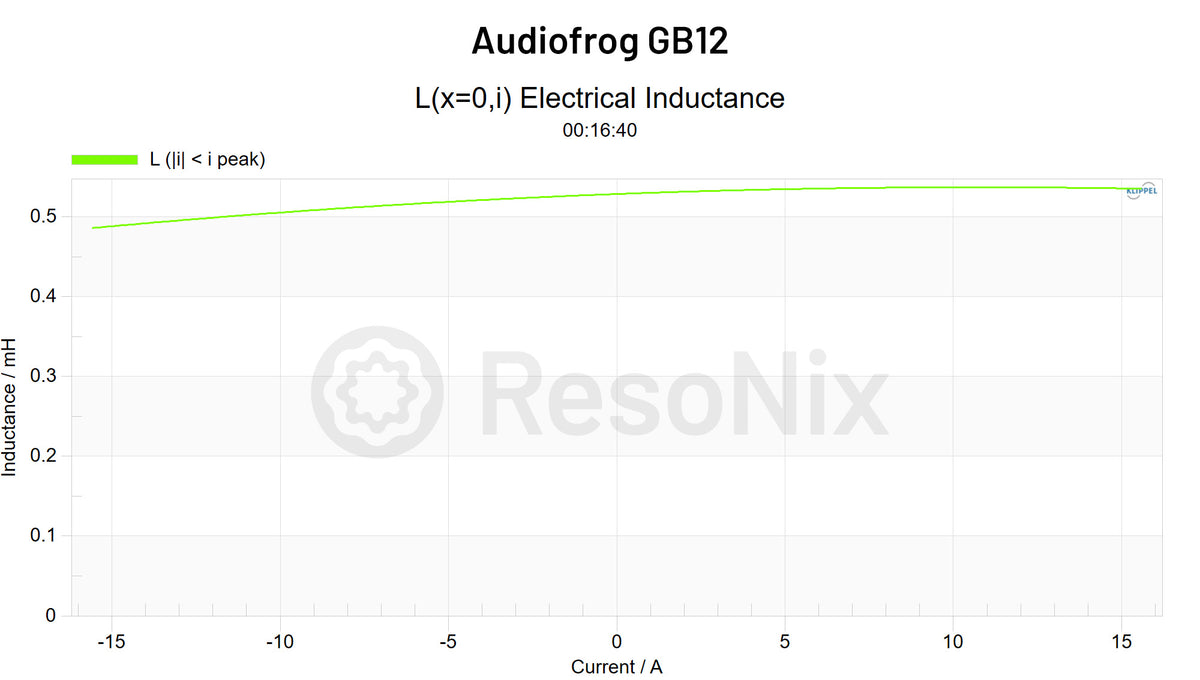

Current dependence

On this sample, inductance varies with drive current, so as current rises the effective Le shifts and modulates the field the coil sees. That pushes odd-order content up at a given stroke and nudges the response shape, which is consistent with the 16 V TRF where H3 overtakes H2 below about 40 Hz. In practice, Le(i) becomes the mechanism that sets the audible ceiling first in the deep bass, limiting clean one-way stroke to roughly 5 to 6 mm before BL or CMS would.

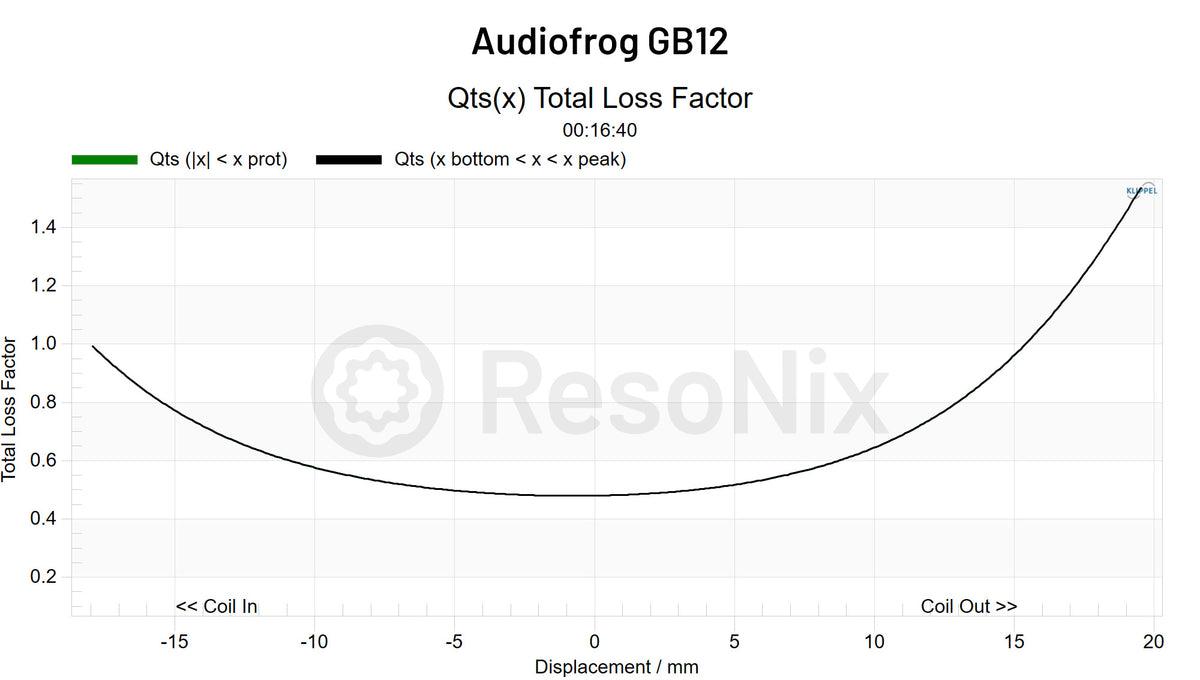

Qts(x)

Qts(x) is the driver’s total damping versus excursion, combining electrical and mechanical losses. Stable, symmetrical Qts(x) means consistent control, while large variation or asymmetry signals uneven damping that can shift response, raise distortion, and cause compression.

Qts stability

Around center, Qts sits near ~0.48 to 0.50 in the warm state on this sample and shows only mild excursion-induced drift with a slight outward rise as stroke increases. Nothing here offsets the limits set by BL/CMS or the inductance behavior, and there are no discrete damping anomalies in the TRF sweeps. At 16 V, any small Qts drift is secondary to the Le(x,i) effects that drive the smooth rise in odd-order H3 distortion below ~40 Hz, so Qts(x) is not the mechanism setting clean headroom.

LSI takeaway

In this sample and under these test conditions, inductance non-linearity with both position and current is the governing limit. The BL shelf is usable but modest with 70 percent at roughly 16.5 mm one way, and the CMS 50 percent point lands around 12.6 mm, yet a practical clean one-way ceiling arrives earlier, at 5.7mm based on Le variation. That matches the 16 V TRF behavior where H3 rises smoothly and, unusually, overtakes H2 below about 40 Hz. Overall, all 3 major sections of LSI show average at best curves and symmetry.

Enclosure alignment calculations

Manufacturer sealed enclosured recommendations and the resulting QTC: Manufacturer suggests a 1.0 ft³ sealed enclosure, which results in a QTC of 0.958

Sealed volume required for 0.707 QTC on this sample: 2.78 ft³

Applicable for infinite baffle? Not really. Better used with sealed enclosure.

T/S parameters
