Micro Precision 5.8 Wideband – Pair

$550.00

The Micro Precision 5.8 is a compact 3.5″ wideband driver with a lightweight paper cone and paper voice coil, delivering full-bodied, natural sound from 150 Hz to 20,000 Hz. Designed for versatility in small enclosures or A-pillar installations, it offers smooth mids and extended top-end response with no added coloration.

Sold as a pair.

1 in stock (can be backordered)

Products

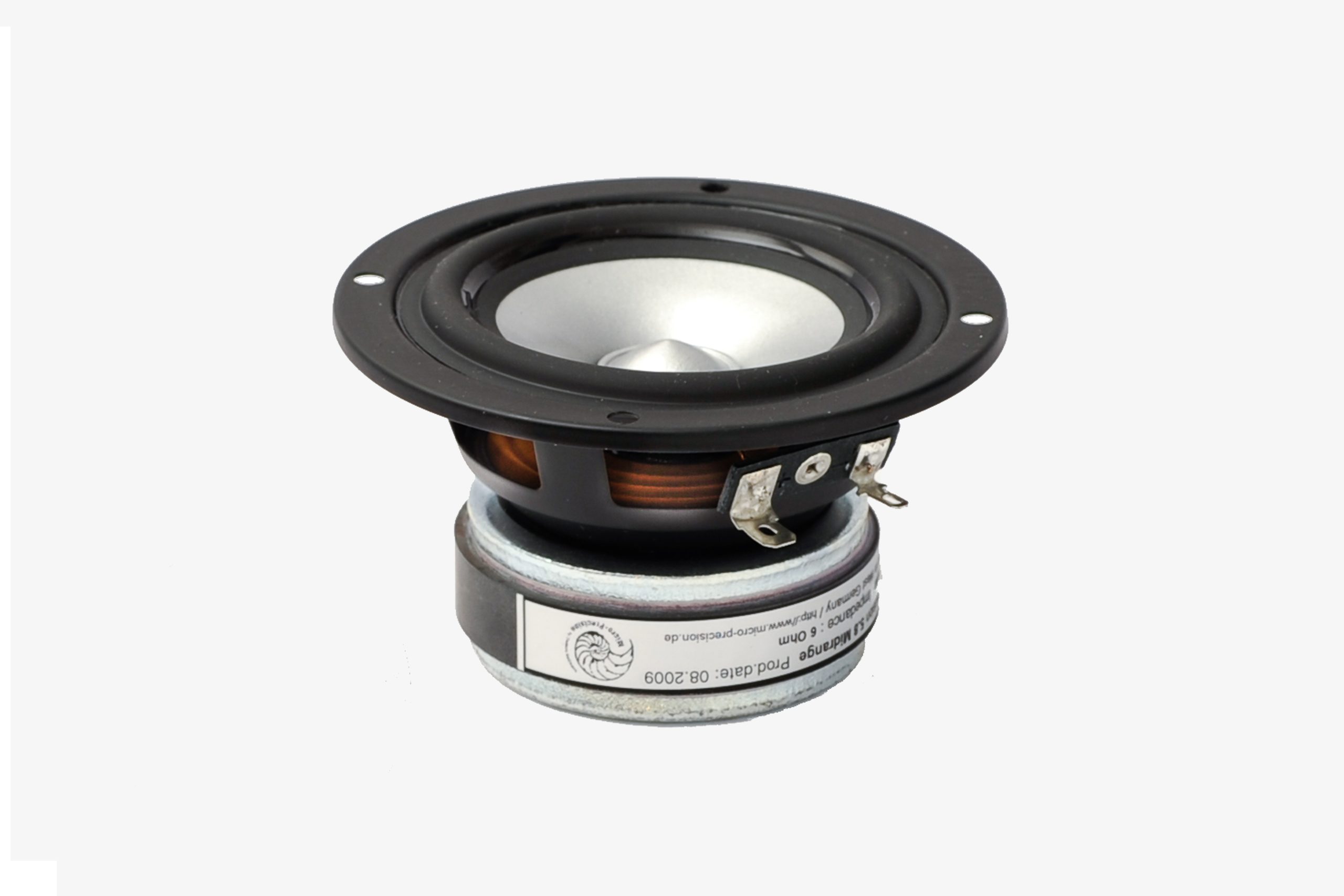

Micro Precision 5.8 3.5" Wideband

Natural Sound, Full Range Capability

       The Micro Precision 5.8 is a 3.5″ wideband driver built for clean, natural sound in applications where a system needs a small midrange or fullrange driver to cover from a 200hz crossover and above. Originally developed in 2003 and refined through multiple updates, the 5.8 uses an ultra-lightweight paper cone and paper voice coil to deliver a full, open sound that reaches from 150 Hz up to 20,000 Hz with surprising clarity and output for its size.

       Thanks to its extremely low moving mass of just 2.1 grams, the 5.8 offers excellent transient response and tonal accuracy across the midrange and into the top end. The paper cone material avoids the harshness and coloration common in many small wideband drivers, making it a great fit for systems where natural reproduction is a priority. Despite its small size, it produces a full-bodied sound that integrates easily with midbass drivers in both two-way and three-way configurations. The 5.8 is optimized for free-air applications and is best used with a high-pass filter set at 200 Hz or higher, depending on power handling and application.

       With multiple improvements to the magnet system and T/S parameters over the years, including the latest update in 2021, the 5.8 remains a relevant and highly capable solution for high-performance car audio systems that need wide frequency coverage with low distortion across its entire frequency range.

Features &
Specifications.

Micro Precision 5.8 Physical Specifications Micro Precision 5.8 TS Parameters
Total Height: 53.5mm
RE: 6.6ohms
Outer Diameter: 93.5mm
FS: 125Hz
Cutout Diameter: 73mm
QES: 0.95
Mounting Hole Pattern Diameter: 84.5 / 4.2 mm holes
QMS: 5.9
Mounting Depth: 50mm
QTS: 0.83
Surround: Rubber / Low Loss
LE: 0.2 mH
Sensitivity: 86dB @ 1w/1m
VAS: 0.98 Liters
Impedance: 8-ohms
MMS: 2.07 grams
Power Handling: 60 RMS, 150 Dynamic with appropriate crossover
CMS: 748 μM/Newton
Voice Coil Former: Paper
Sensitivity: 86dB @ 1w/1m
Voicecoil Diameter: 15mm
Diaphragm Diameter:
Membrane: Paper
RMS: 0.28 R
Recommended Minimum Filter with Recommended Power (60 RMS): 200Hz/18dB

Micro Precision 5.16 Updates:

History :

  • 04.2006 – The current model.
  • 11.2013 – Improved magnetsystem.
  • 08.2015 – Improved magnetsystem
  • 05.2021 – Updated TSP & Simulation.
